AIP-W511

AIP-W511

AIP-W511

Ultra compact, streamlined, stylish design
Plug-n-Play, self-contained, no driver installation
USB Powered - no power supply needed
Easy URL - no more setup IP addresses or complicated configurations

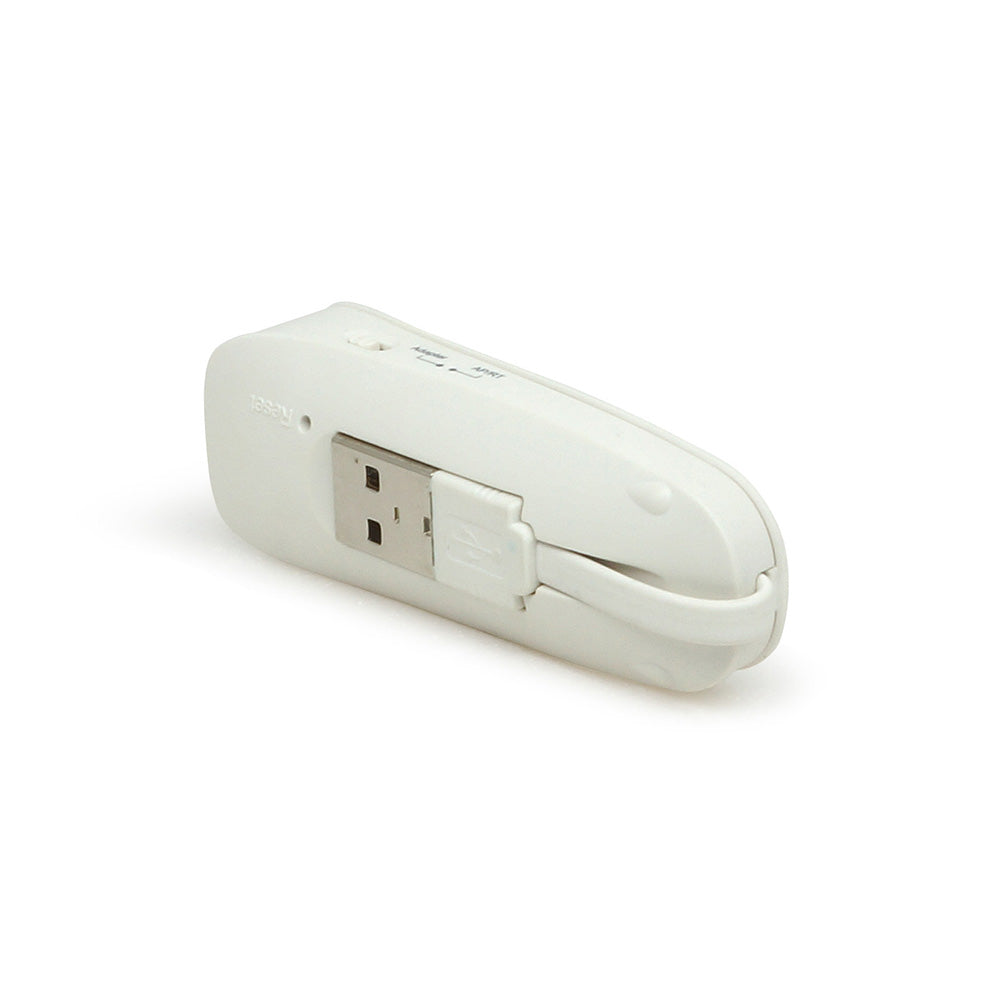

Stowable USB connector

3-mode network access: Anytime, anywhere Internet access

Hardware Interfaces

WAN	/ LAN 1 x 10Base/100M Base-TX
USB	1 x USB 2.0, type A connector
WLAN	IEEE 802.11n 1T1R Max. 150Mbps (802.11b/g backward compatible)
LED	WLAN x1 , Ethernet x1 , Power x1
Antenna	Internal antenna x 1, 1T1R
Sensitivity	> -82dBm @ 802.11b, -76dBm @ 802.11g, -73dBm @ 802.11n

Product Operation

Operation Modes	USB to Ethernet Adapter mode Wireless Access Point (AP) mode Wireless Router mode
Power Requirement	5VDC, 500mA
Operation Temperature / Humidity	-20°C to 60°C / 10% to 90% Non-Condensing
Dimension (L x H x W)	65 x 15.25 x 21.25 mm

Software specification

Wireless LAN

WLAN data rate	802.11n (Max. 150Mbps), 802.11g (Max. 54Mbps), 802.11b (Max.11Mbps)
Antenna	Internal antenna
Operation Frequency	2.400~2.483GHz
Security	WEP 64 or 128 bit/WPA/WPA2/WPA2 Mixed, WPS, WDS

Router Mode Features

NAT	DMZ Host, Port-Redirection/Virtual server / Universal Plug-and-Play / Dynamic Domain Name System (DDNS) / VPN pass-trough (IPSec,PPTP)
Firewall	Policy-Based IP Packet Filter, Port filter, MAC address filtering, URL filter, System logging via Syslog
QoS	IP, MAC address, guarantee bandwidth QoS configurations

Management

Web-based GUI for remote and local management
Syslog monitoring support
