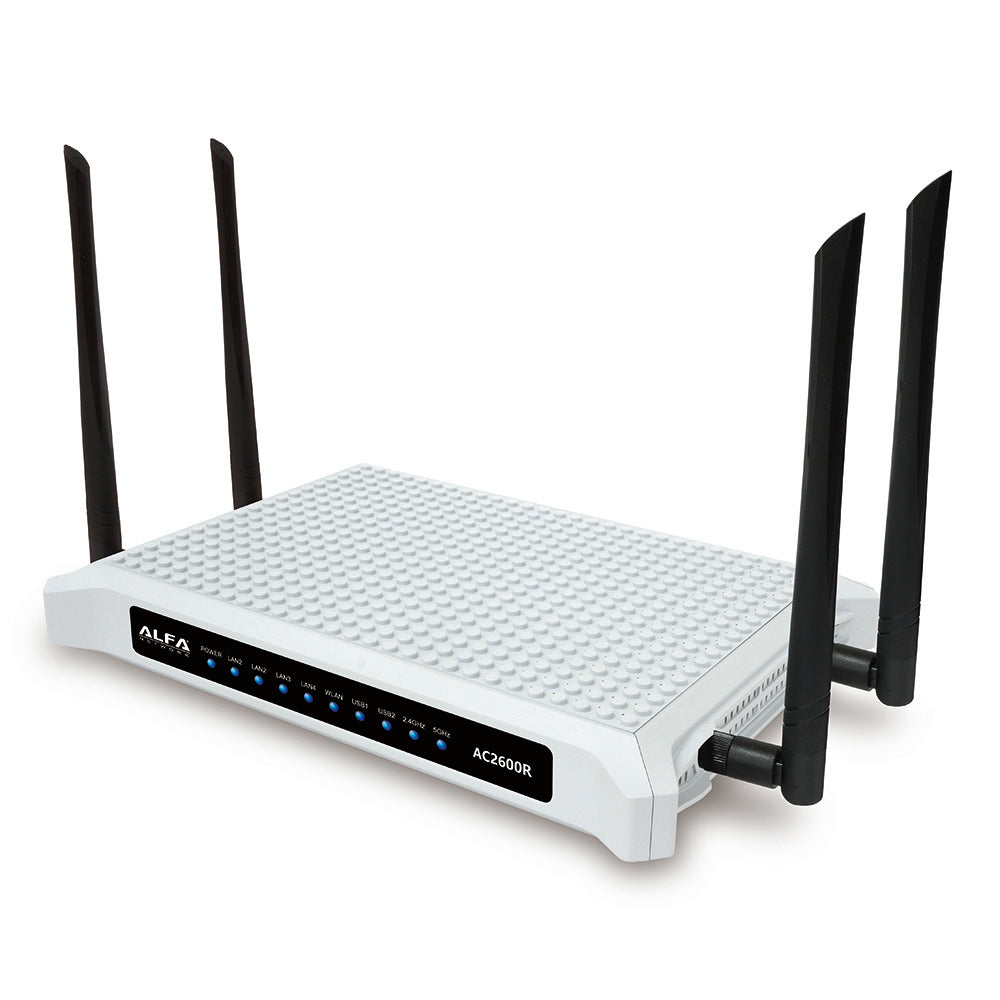

AC2600R

AC2600R

AC2600R

Qualcomm IPQ8064 Dual-Core 1.4 GHz
MU-MIMO boosts performance
WiFi AC 1733 Mbps + N 800 Mbps
1+4 all Gigabit LAN RJ45
2x USB 3.0
All interfaces LED indicator
Power On/Off button
WPS button
WiFi On/Off button
LED On/Off button
Reset button
OpenWrt support

Technical Specifications

Chipset	CPU: IPQ8064 Switch: QCA8337 RF 5 GHz 4x4: QCA9980 RF 2.4 GHz 4x4: QCA9980
Standard	802.11a/ac/b/g/n
Flash	256 MB
RF Speed	5 GHz 11ac: 1733 Mbps 2.4 GHz 11n: 800 Mbps
Interface	1x WAN; 4x LAN; 2x USB 3.0
Power Source	12 VDC, 3A
Environment Temperature	Operating: -20 °C to +55 °C Storage: -40 °C to + 80 °C0
Environment Humidity	Operating: 10 % to 90 % Storage: 5 % to 95 %

RF Specifications

	Data Rate	FCC	ETSI	IC	RX Sensitivity
2.4 GHz 802.11b	11 Mbps	27 dBm	14 dBm	27 dBm	-83 dBm
2.4 GHz 802.11g	54 Mbps	29 dBm	16 dBm	29 dBm	-70 dBm
2.4 GHz 802.11n	800 Mbps	29 dBm	16 dBm	29 dBm	-64 dBm
5 GHz 802.11a	54 Mbps	26 dBm	29 dBm	26 dBm	-68 dBm
5 GHz 802.11an	800 Mbps	27 dBm	28 dBm	26 dBm	-68 dBm
5 GHz 802.11ac	1733 Mbps	27 dBm	28 dBm	26 dBm	-55 dBm
