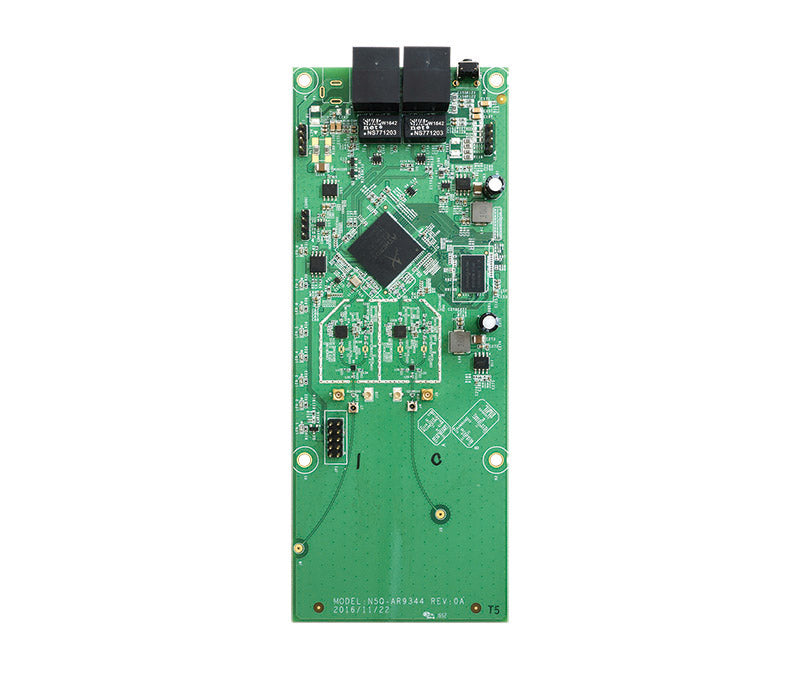

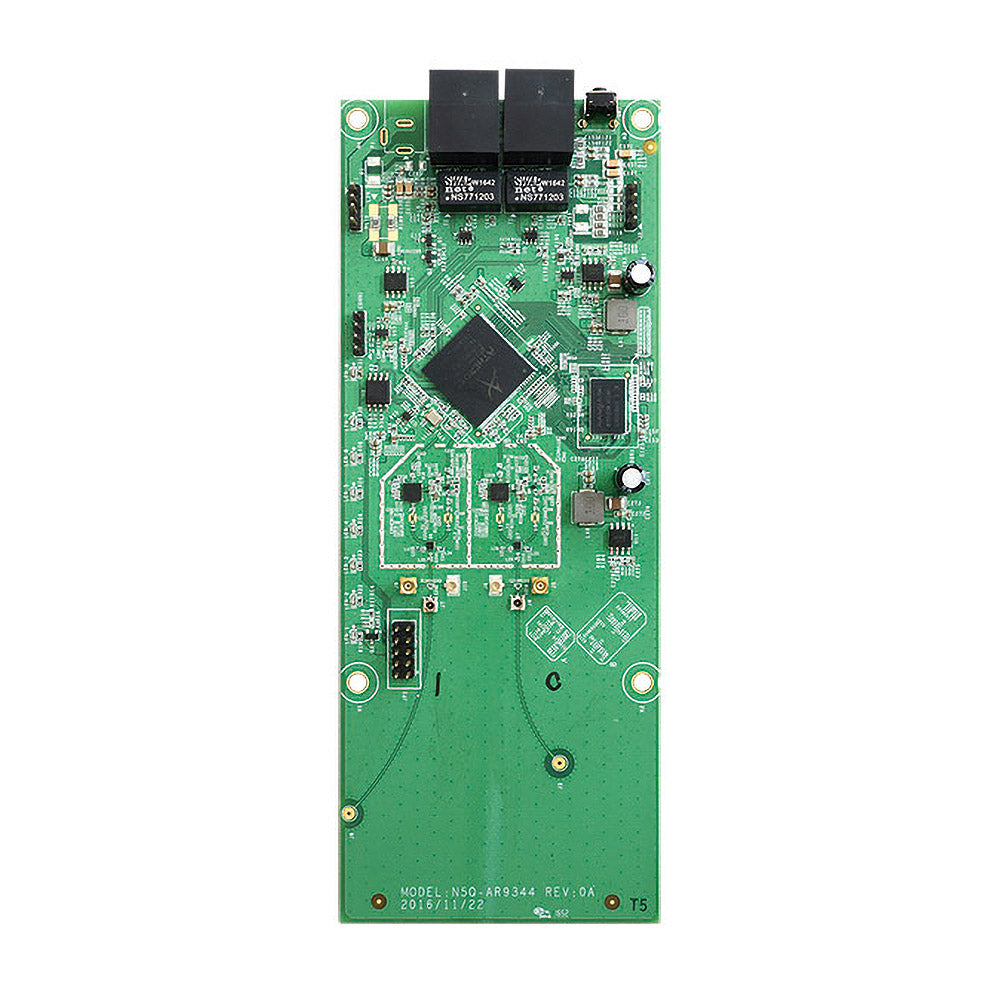

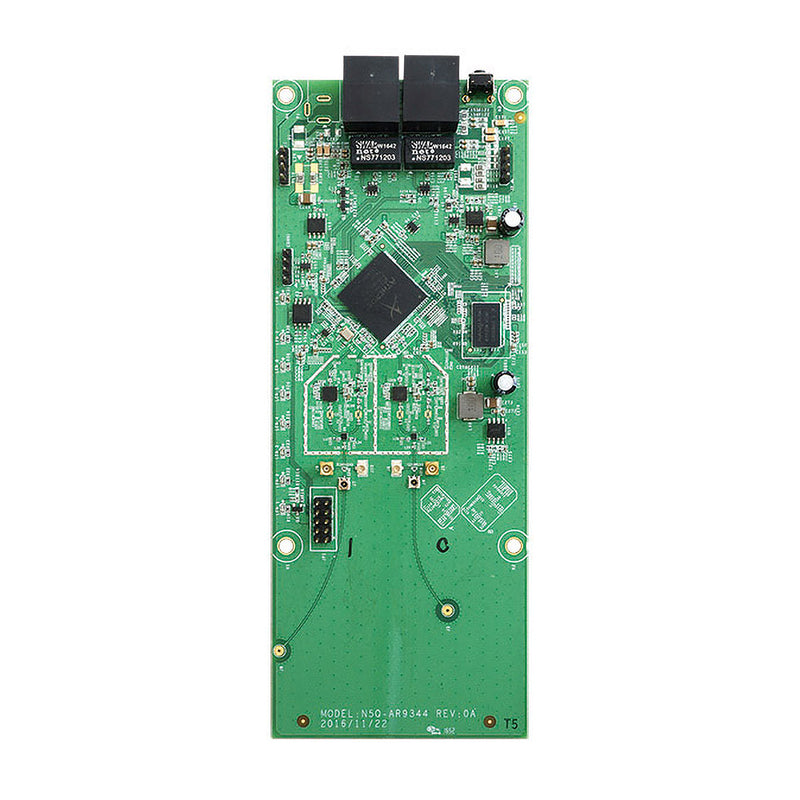

N5Q_PCBA

High-power 5 GHz WiFi4 outdoor platform with dual Fast Ethernet and PoE support

Atheros ™ AR9344 (550 MHz single-core MIPS)
64 MB of DDR2 RAM
16 MB of SPI NOR flash
Integrated WiFi N300 5 GHz (up to 27 dBm)
2x MMCX or IPEX/U.FL antenna connnectors
2x Fast Ethernet with ESD protection
Support for passive PoE input and optional 802.3at/af standard module
Optional DC jack for power input
1x push-button
4-pin console and 10-pin LED headers
8x LED

Description

N5Q PCBA is a high-power 5 GHz AP/CPE outdoor board, equipped with Ethernet and PoE support

N5Q offers an integrated 802.11a/b/g/n WiFi radio (5 GHz, N300, up to 27 dBm) with MMCX or IPEX/U.FL antenna connectors, dual Fast Ethernet with support for passive and optional 802.3at/af standard PoE input module.

Official OpenWrt support, web-based recovery and system serial console access make development extremely easy.

Specifications

SOC	Atheros™ AR9344 with 550 MHz single-core MIPS 24Kc CPU
RAM	64 MB of DDR2
Flash	16 MB of SPI NOR flash
WiFi	802.11a/b/g/n 2T2R 5 GHz 2× MMCX or IPEX/U.FL antenna connectors
Ethernet	2× Fast Ethernet with ESD protection
Pin headers	1× 4-pin system serial console (2.54 mm pitch) 1× 10-pin LED (2.54 mm pitch)
Button	1× push-button (reset)1
LED	1× power/PoE IN (green) 1× WLAN (green) 1× LAN (green) 1× WAN (green) 4× signal level (red, orange, green, green)
Other	External hardware watchdog
Software	U-Boot with web-based firmware recovery support Officially supported in OpenWrt 18.06+ (Linux Kernel 4.9)
Power supply	Passive PoE (12~36 V DC) input Support for optional 802.3at/af standard module
Mounting holes	∅ 4 mm, 64 × 128 mm
Dimensions	72 × 185 × 17 mm
Operating humidity	5 % ~ 95 % RH, non-condensing
Operating temperature	-40 ° ~ 65 ° C
