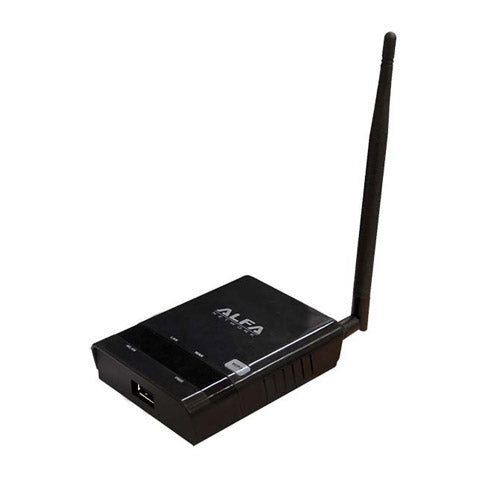

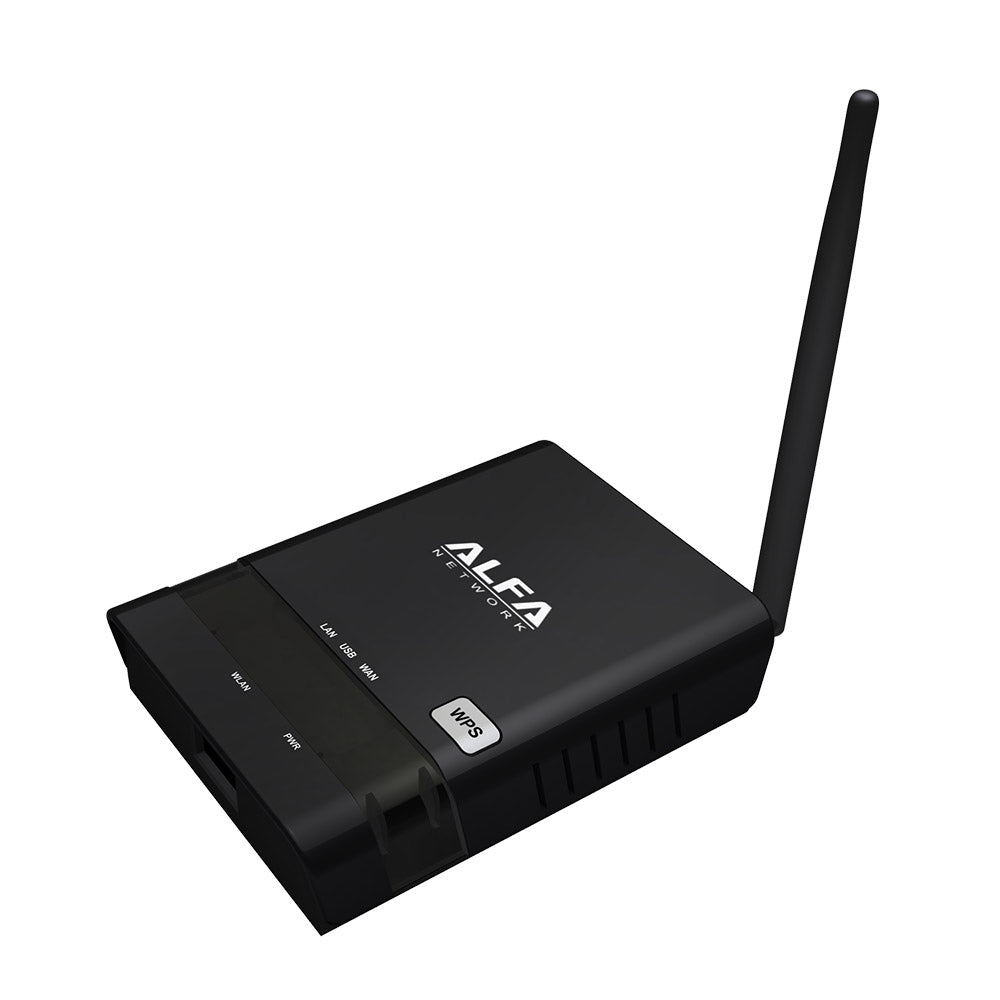

AP121U

802.11n AP/Router

High Speed Data Rates

Providing faster data rates of up to 150Mbps and is compatible with legacy 802.11b/g equipment

Advanced Robust Security

Firewall with SPI to protect the internal host from hacker attacks. Wireless security is comprehensive and included WPA/WPA2 PSK

Feature Rich

WDS, Dual SSIDs, Static Routing,QoSand more

Application

Physical Description

Parameter	Value
Standard	IEEE 802.11b/g/n
Antenna	5dBi detachable antenna
Security	64/128bit WEP WPA(TKIP with IEEE 802.1x) WPA2(AES with IEEE 802.1x) WPA Mixed
Sensitivity	802.11b 11Mbps: -93 802.11g 54Mbps: -84 802.11n ( 20MHz) MCS7 : -70
Interface	RP-SMA antennas connector x 1 RJ-45 WAN port x 1 RJ-45 LAN ports x 1
Operation Temperature	-20 °C ~ 60 °C
Dimension	93 x 70 x 26 mm
Operation Mode	Router Bridge Wireless ISP
Frequency Band	2.400 GHz ~ 2.484 GHz
Data Rate	802.11n ( 40 MHz ): up to 150 Mbps 802.11n ( 20 MHz ): up to 72 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11b: 11,5.5,2,1 Mbps
Tx Power	802.11b: 19 dBm±1.5 802.11g: 19 dBm± 1.5 802.11n: 19 dBm±1.5
Power requirement	DC Jack: 5V-18V DC PoE: 12V Passive PoE
Storage Humidity	10% ~ 90% (Non-condensing)
Weight	74 g
