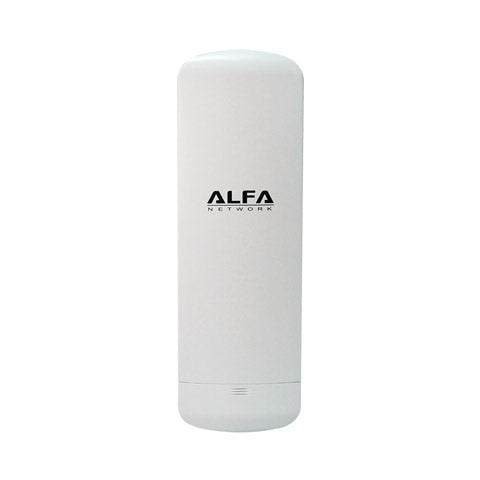

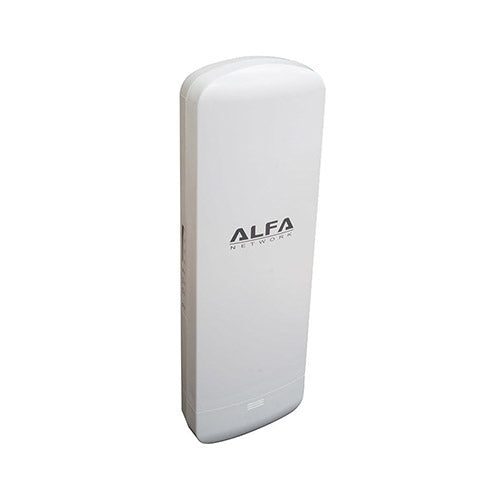

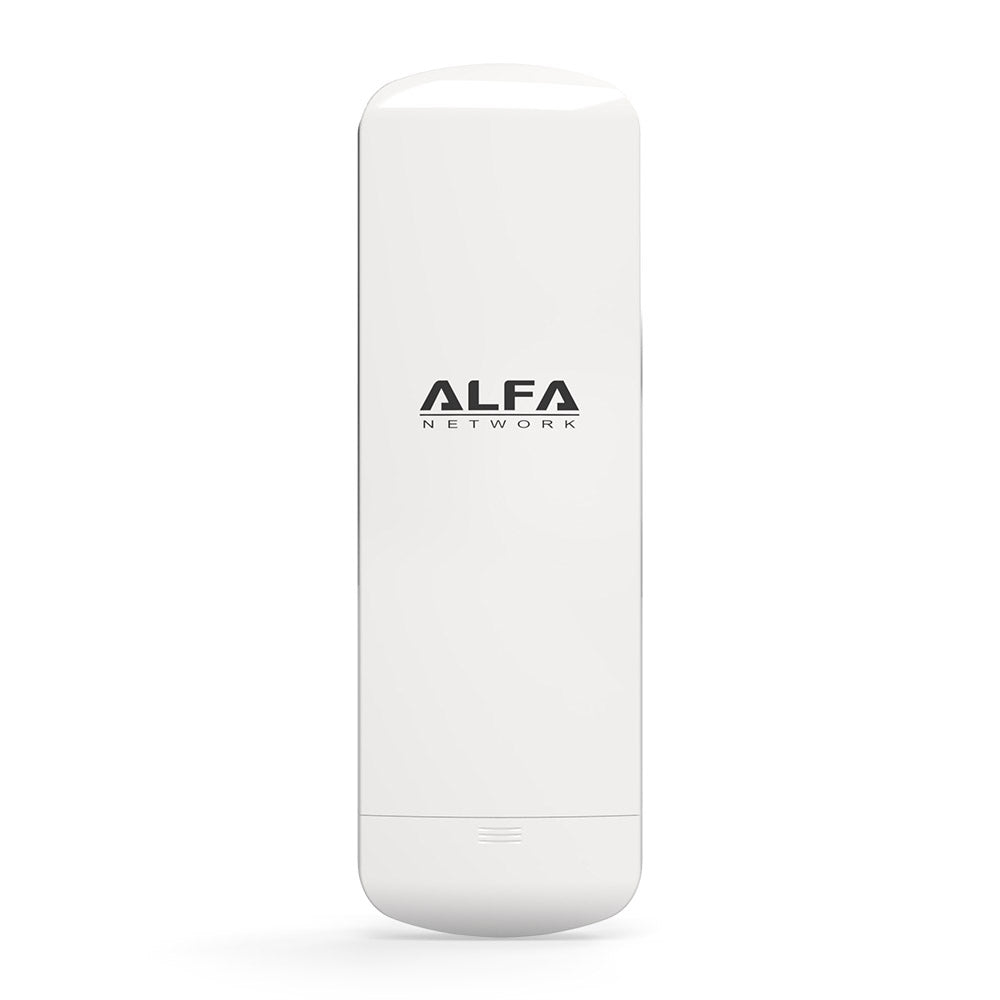

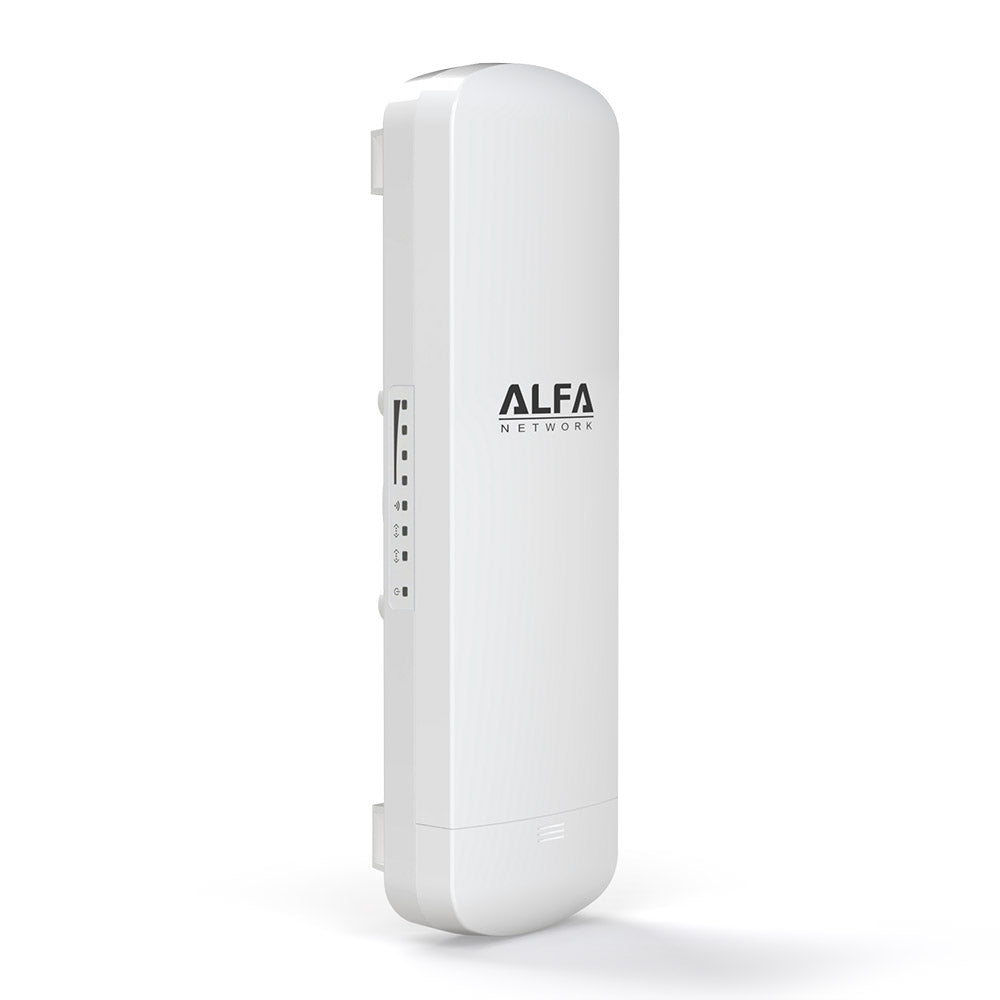

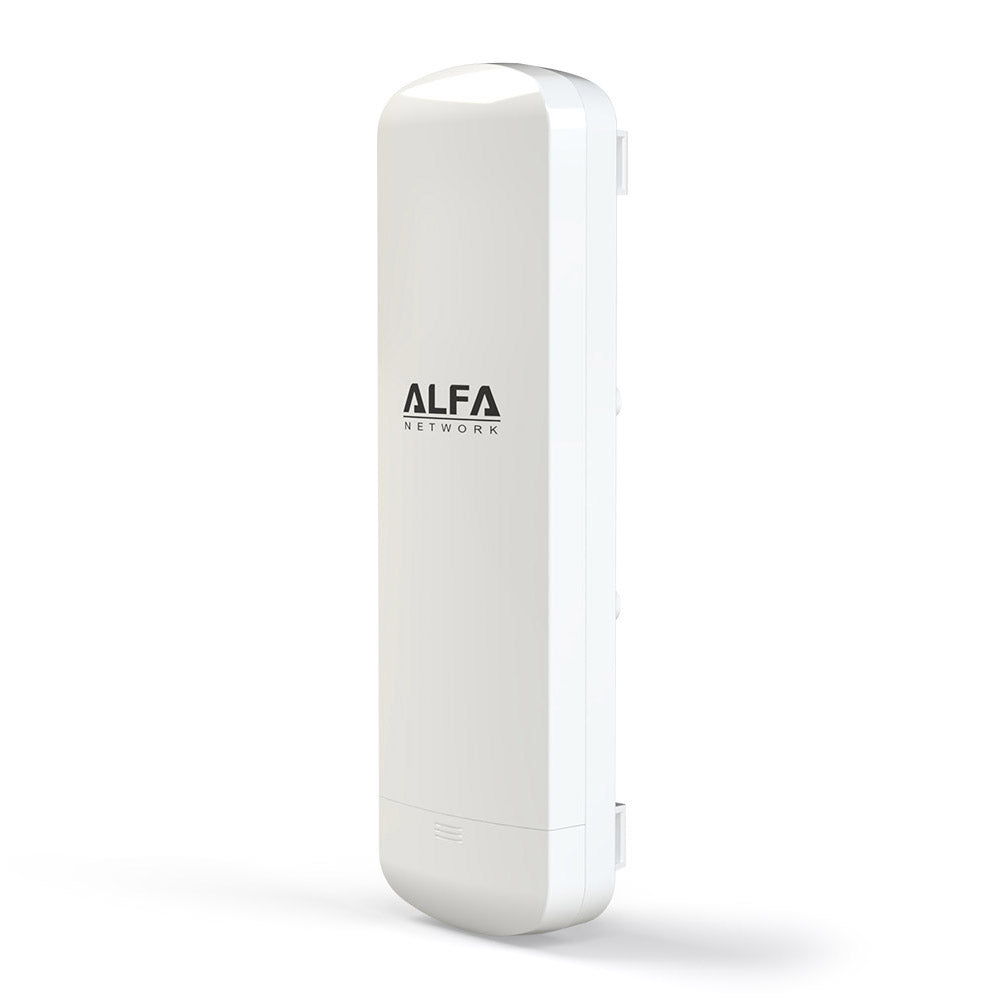

802.11an 5GHz Outdoor AP/Client/Bridge

High Speed Data Rates
Open Source Compatible
Hardware watchdog
Weather-Proof design
ESD Protection

Features

High Speed Data Rates
802.11an 300Mbps
Open Source Compatible
OpenWrt firmware
Hardware watchdog
Ensure operating properly
Weather-Proof design
IP rated IP55
ESD Protection
Enhanced ESD protection on both LAN and RF

Operation Mode

AP Bridge
Client Bridge
WDS Bridge

Order Information

Passive 24V PoE
Built-in Antenna

Suitable Applications

Chipset	AR9344
Standard	IEEE 802.11an
Frequency	5.15GHz ~ 5.825GHz
Flash/SDRAM	16/ 64 MB
Antenna	Build-in 10dBi directional antenna
Channel Width	20/ 40 MHz Will support 5/10 MHz in the future
Data Rate	802.11a: up to 54Mbps 802.11an: up to 300Mbps

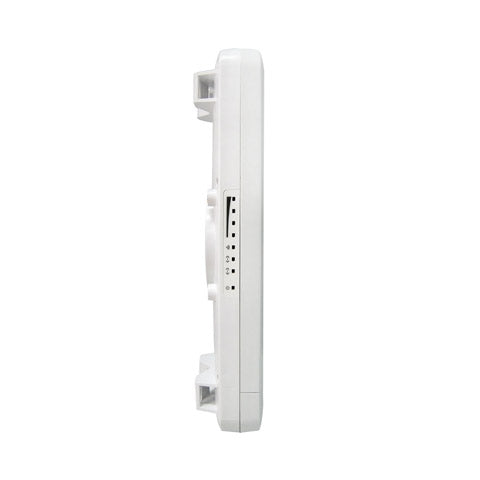

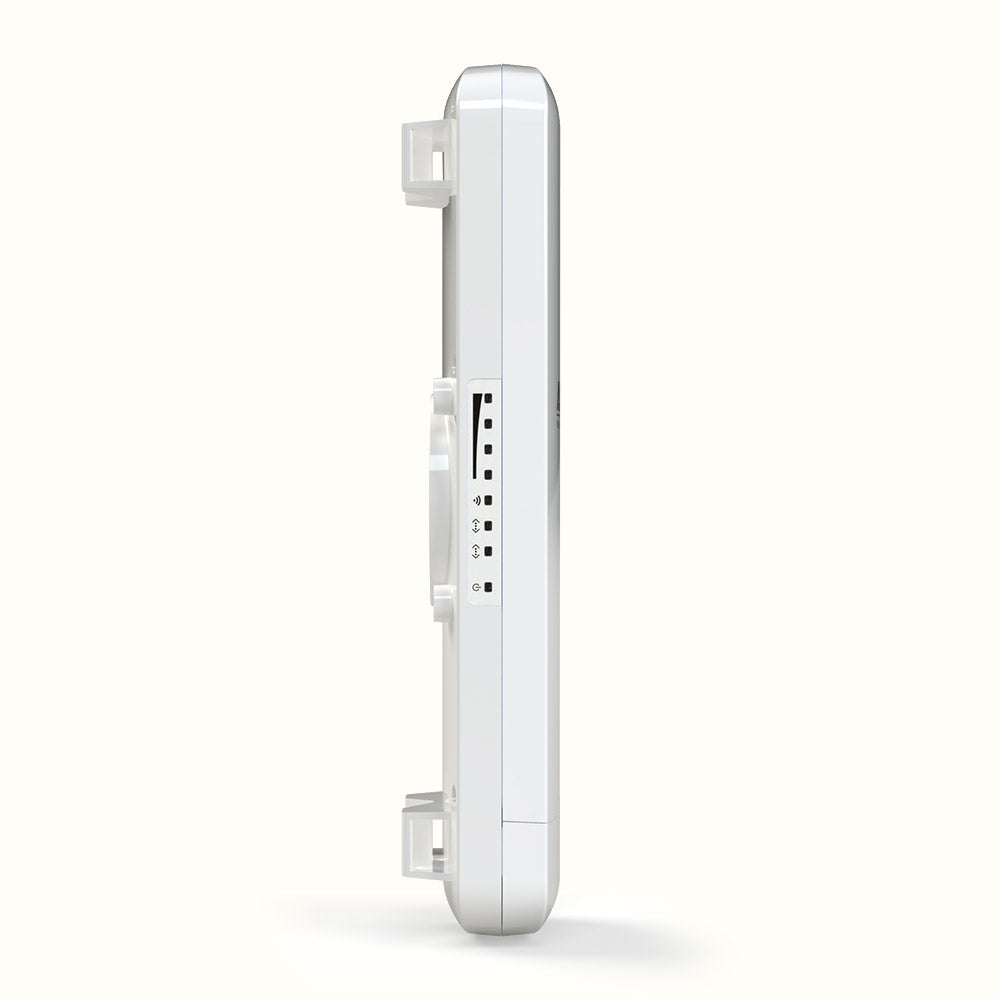

LED Indicated	Signal, WAN, LAN, WLAN
Operation Temperature	-30°C ~ 60°C
Storage Humidity	10% ~ 90% (Non-condensing)
Dimension(mm)	300 x 80 x 30 mm
Weight	0.4kg

Software features

Mode	AP Bridge Client Bridge WDS Bridge
Security	WEP WPA/WAP2-PSK WPA/WPA2-Enterprise 802.1x

RF Specifications [ Tolerance ± 2dB ]

Data Rate	Tx	Rx
11an HT20/40 MCS7	22/22	-70/-67
11an HT20/40 MCS6	22/22	-71/-68
11an HT20/40 MCS5	24/24	-73/-70
11an HT20/40 MCS4	24/24	-78/-75
11an HT20/40 MCS3	26/26	-81/-78
11an HT20/40 MCS2	26/26	-86/-83
11an HT20/40 MCS1	26/26	-88/-85
11an HT20/40 MCS0	28/27	-91/-88
11a 54M	23	-73
11a 48M	24	-74
11a 36M	26	-79
11a 24M	28	-83
11a 18M	28	-86
11a 12M	28	-89
11a 9M	28	-90
11a 6M	28	-92
