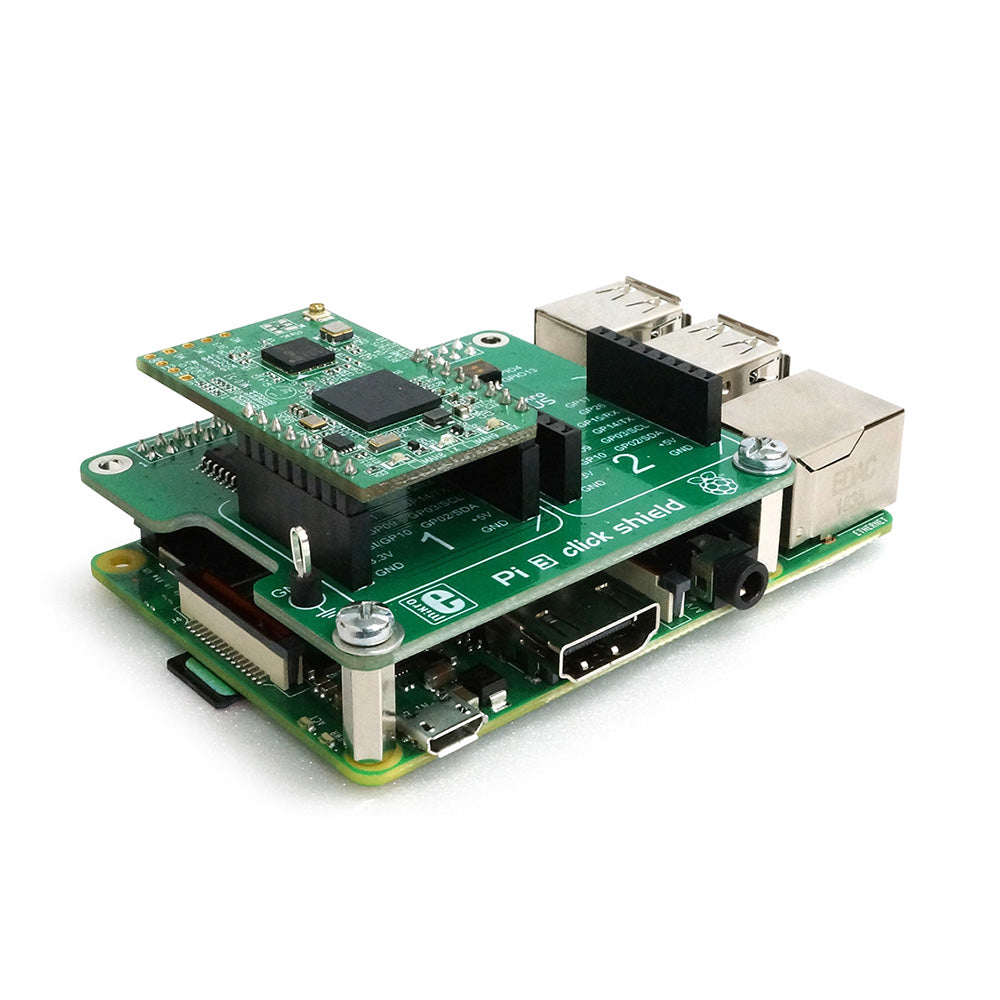

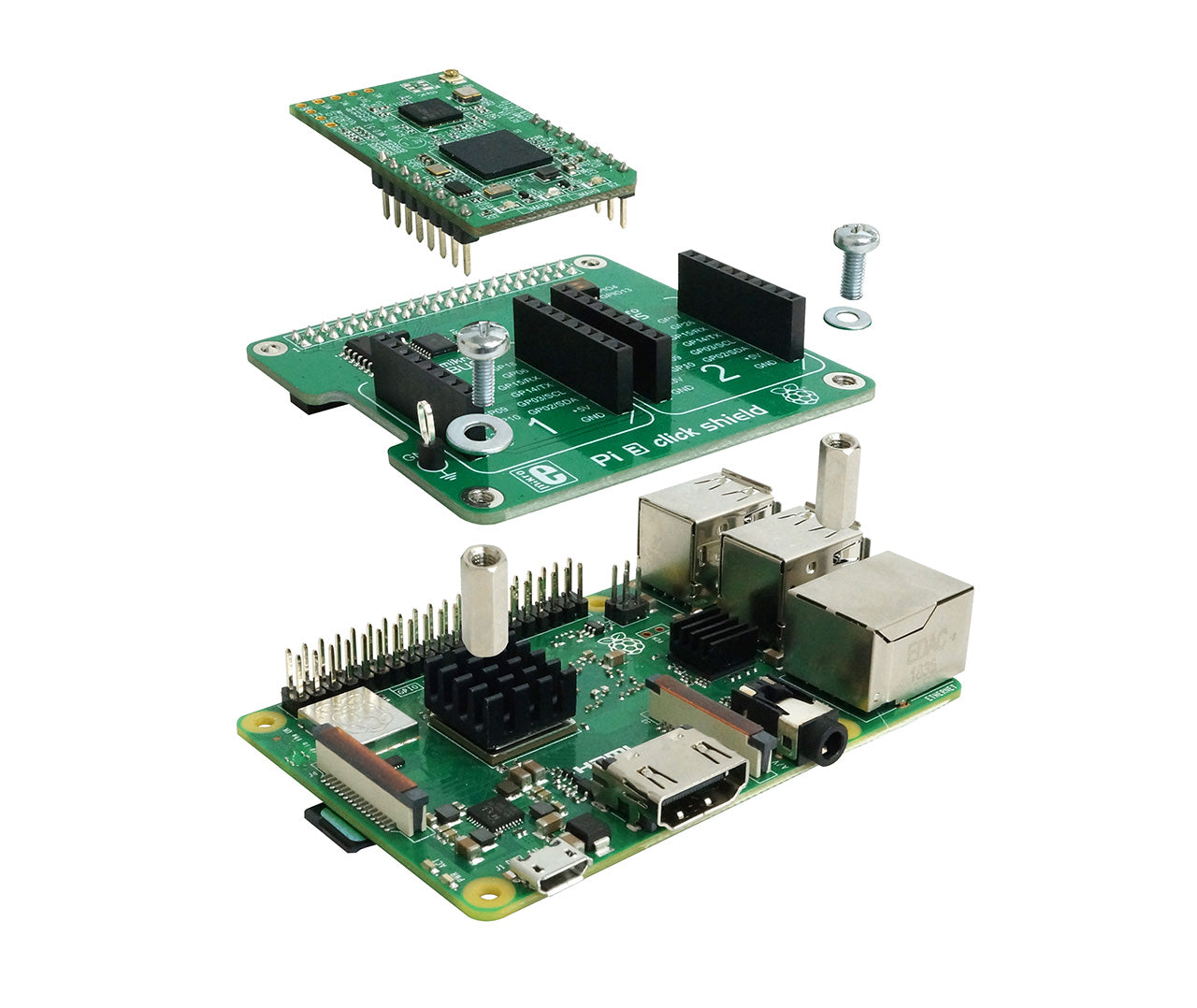

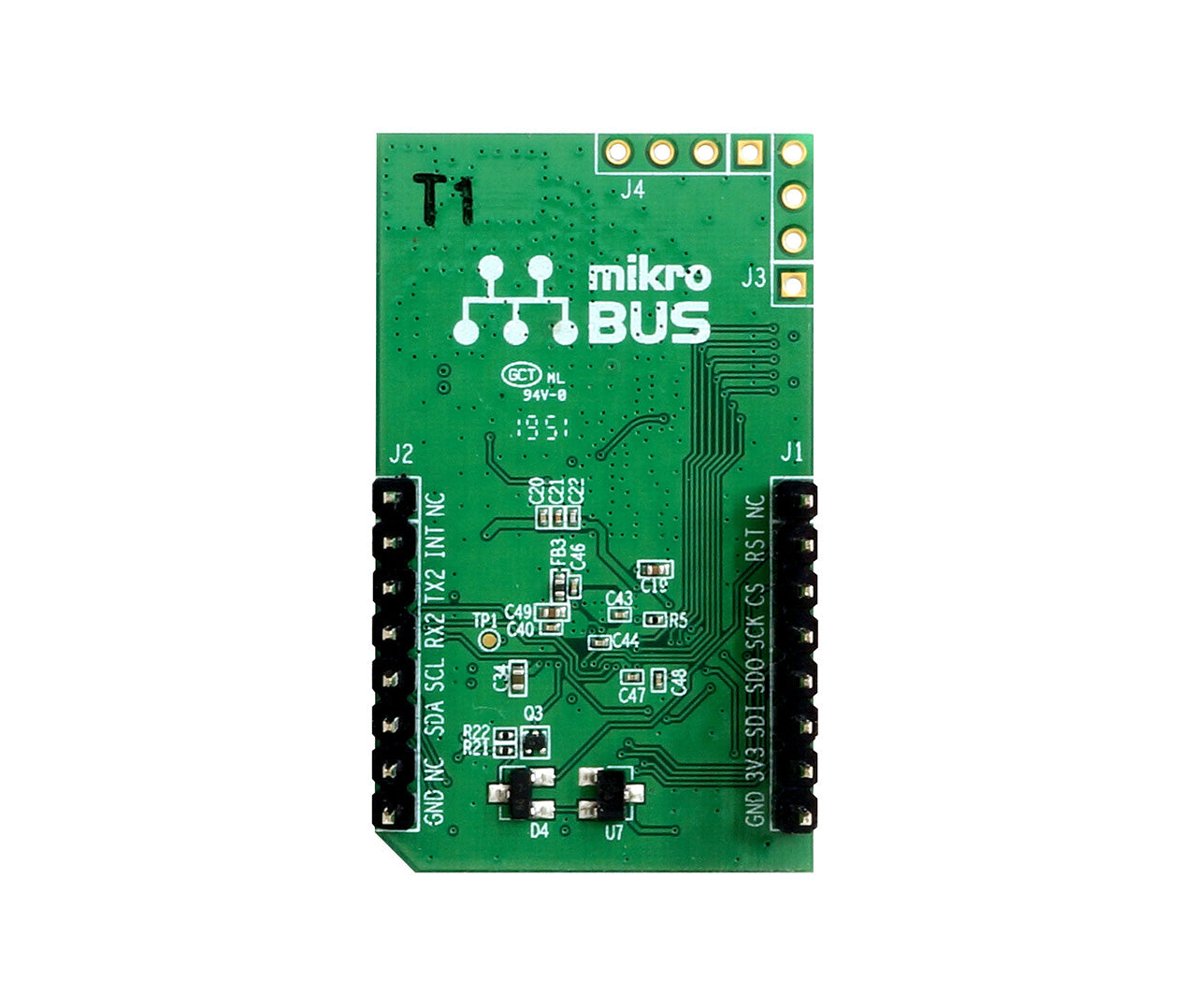

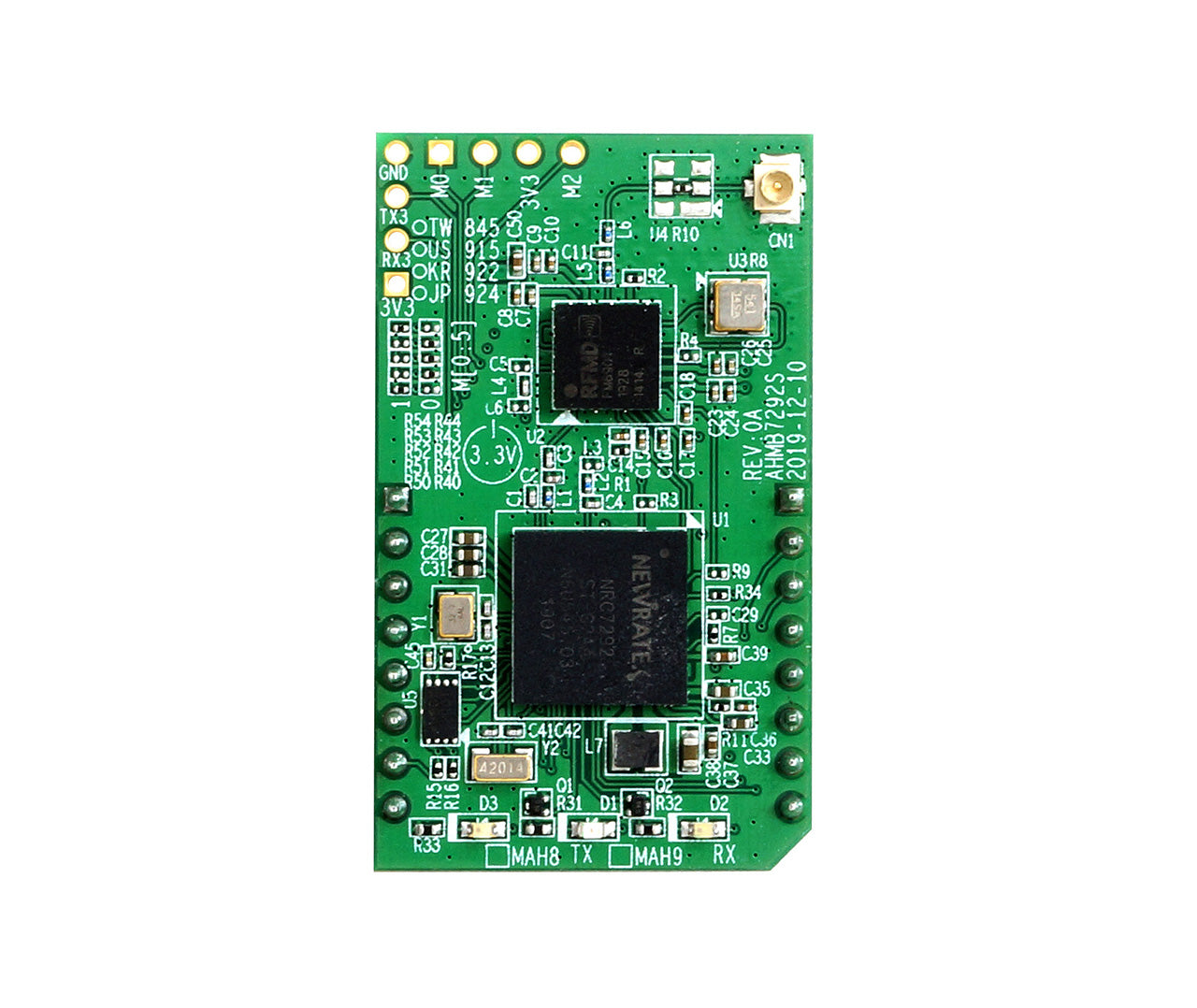

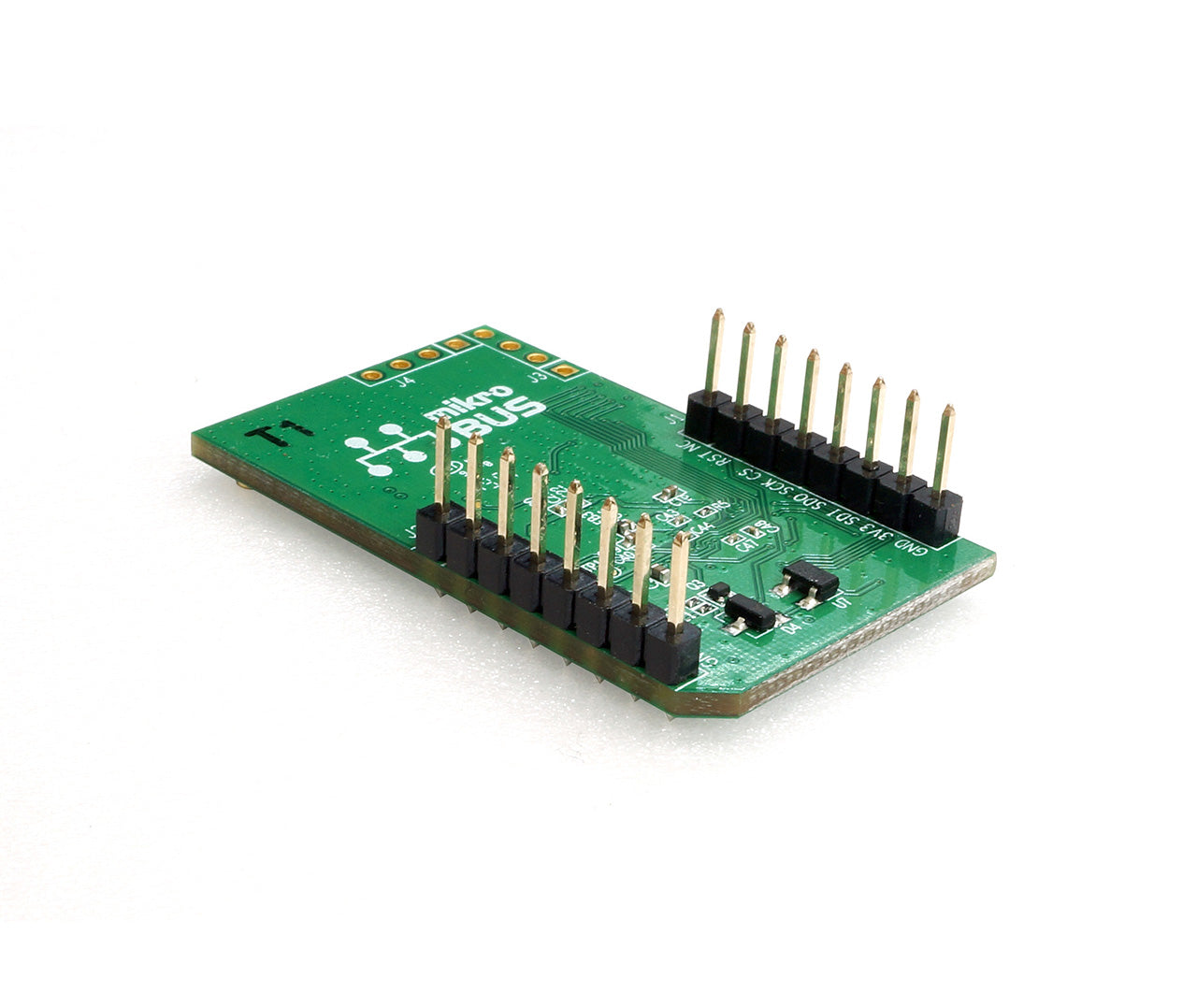

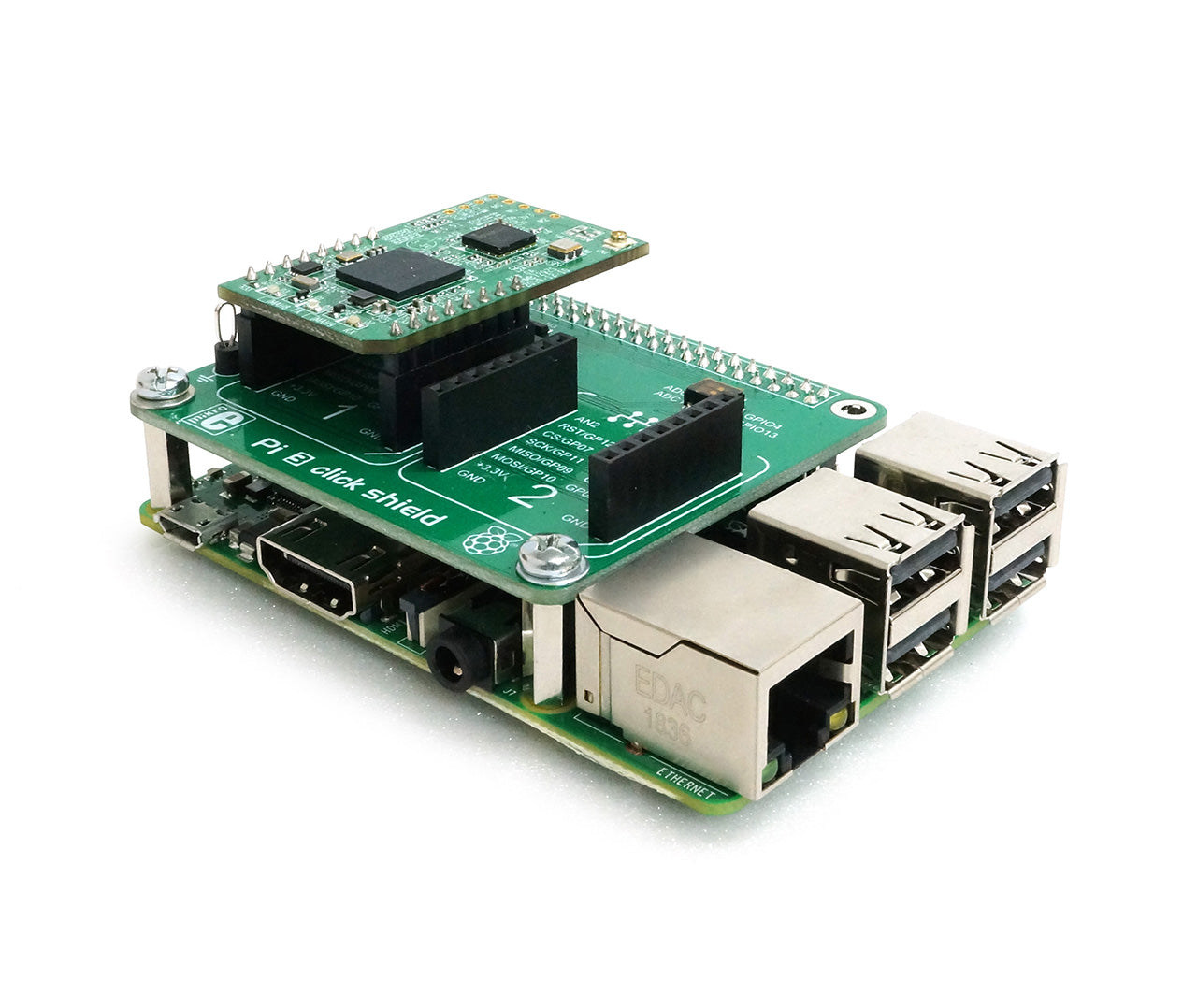

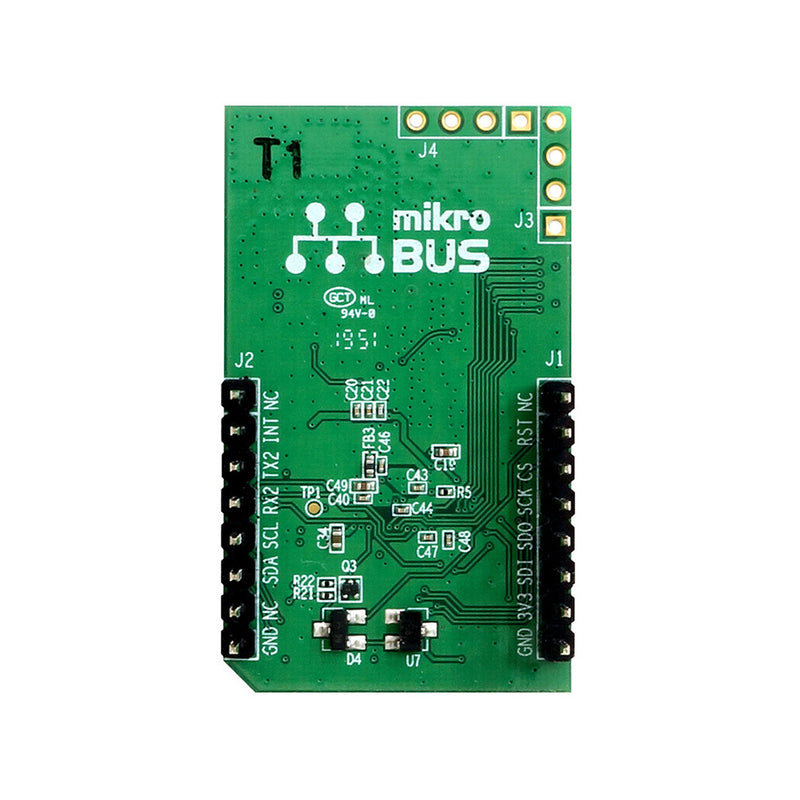

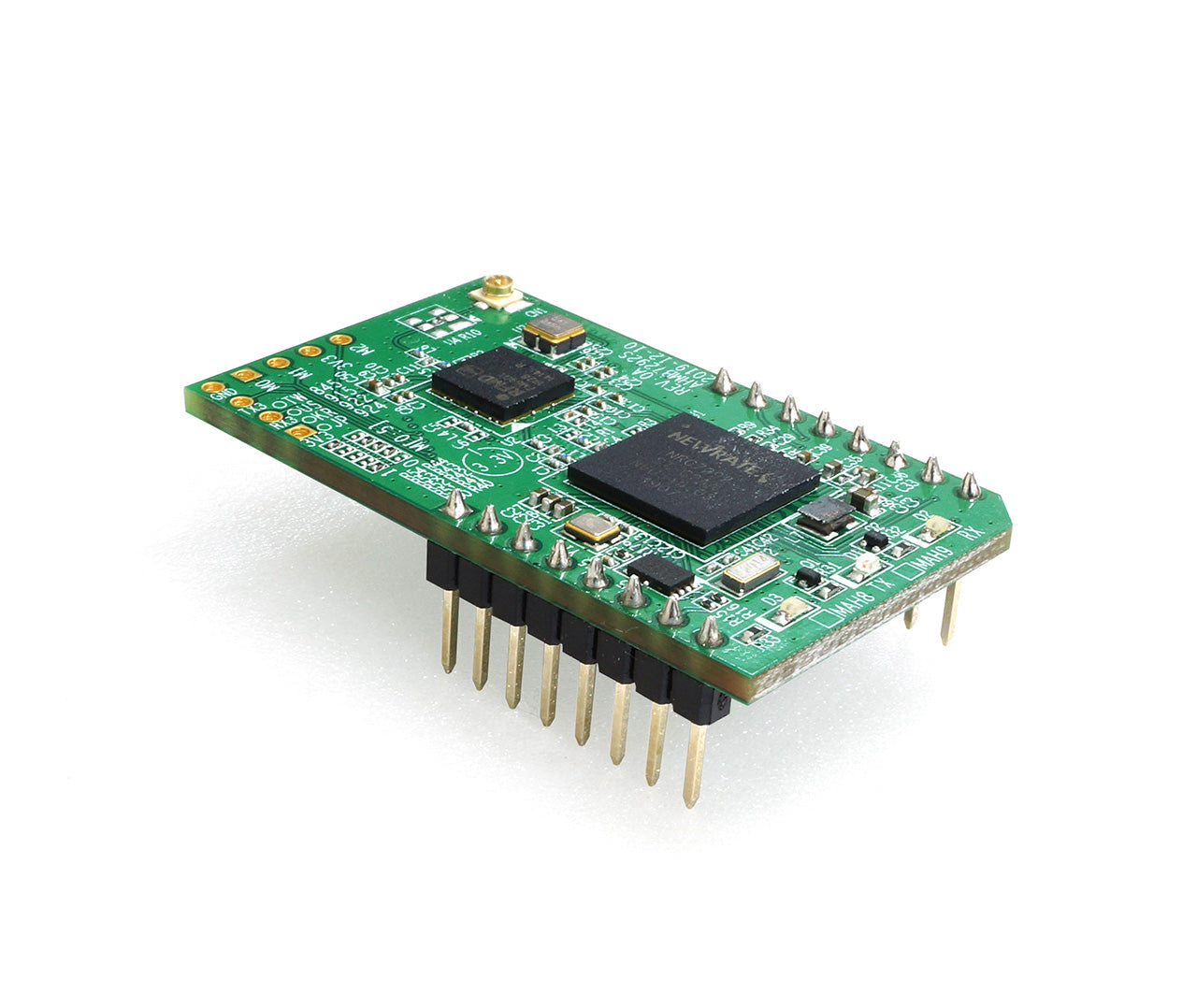

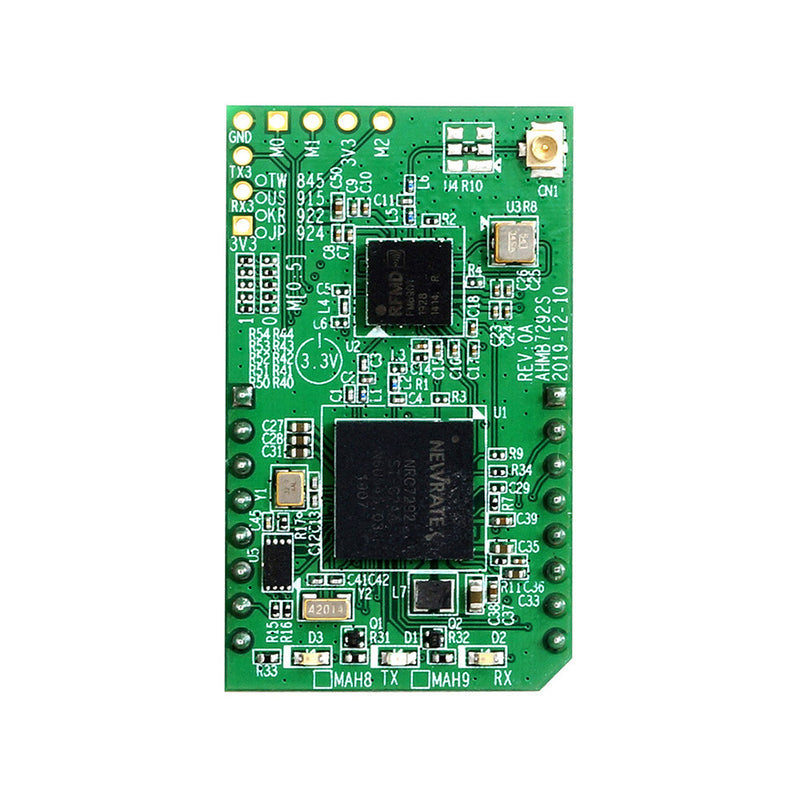

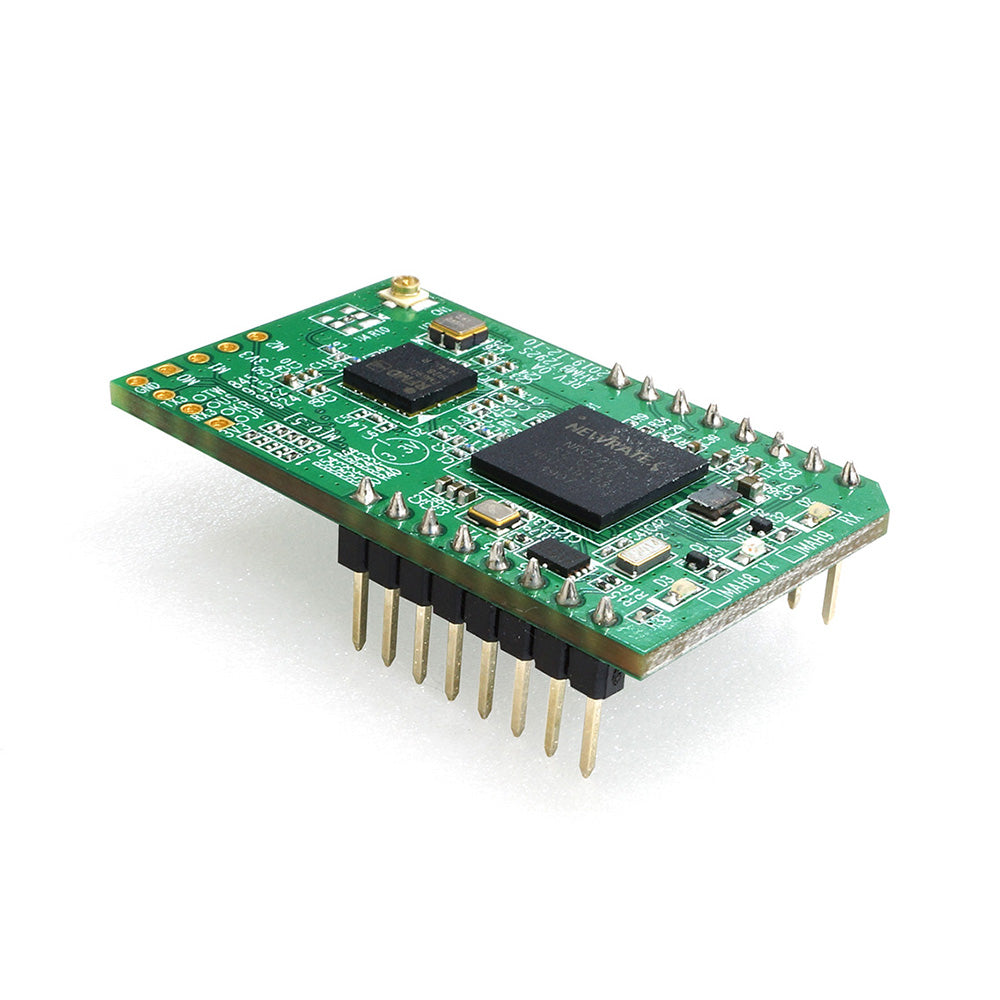

AHMB7292S is world's first WiFi HaLow™ module for mikroBUS™
The AHMB7292S module series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.
With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new WiFi standard will be straightforward.
| Parameter | Value |
|---|---|
| Chipset | Newracom™ NRC7292 |
| Frequency | 847 MHz (TW) 866 MHz (EU) 915 MHz (US) 922 MHz (KR) 924 MHz (JP) |
| Modulation | OFDM with BPSK, QPSK, 16QAM, 64QAM |
| Data rate | 150 Kbps ~ 15 Mbps |
| Channel bandwidth | 1/2/4 MHz |
| Antenna connector | 1× IPEX/U.FL |
| Interfaces | SPI UART I2C |
| LED | 1× power 1× TX 1× RX |
| Form factor | mikroBUS™ M-size |
| Dimensions | 25.4 × 42.9 × 3.0 mm (without headers) |
| Software | https://github.com/newracom/ |
