AHM27292U
AHM27292U
IEEE 802.11ah sub 1 GHz standalone M.2/NGFF B-key 3042 type Linux module

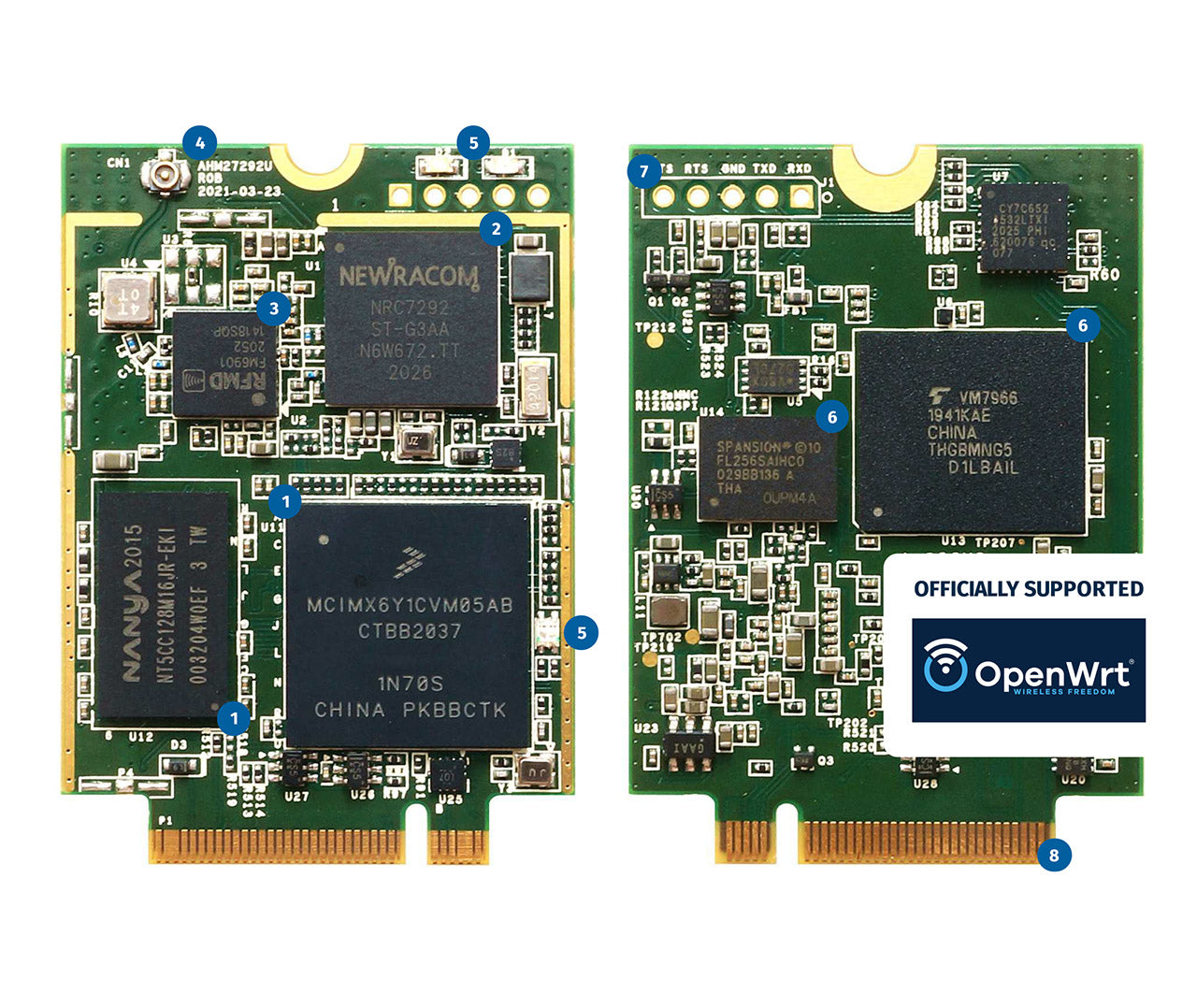

- (1) NXP™ i.MX 6ULL SOC (ARM™ Cortex-A7, 528 MHz) equipped with 256 MB of DDR3L RAM
- (2) Newracom™ NRC7292 WiFi HaLow™ SOC (IEEE 802.11ah draft 8.0 compliant)
- (3) Qorvo™ RFFM6901 front-end
- (4) IPEX4 (MHF4) antenna connector
- (5) 4× LED
- (6) 32 MB of SPI NOR flash (optional 2/4/8 GB eMMC) 6
- (7) 5-pin serial console (2.00 mm pitch)
- (8) M.2/NGFF B-key 3042 with USB 2.0 bus support
AHM27292U is the world's first WiFi HaLow™ industrial M.2/NGFF module
The AHM27292U module series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing compact M.2/NGFF 3042 form factor. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.
With powerful ARM™ Cortex-A7 based SOC clocked at 528 MHz, official OpenWrt and U‑Boot support, up to 15 Mbps data throughput and complete SDK for the HaLow™ radio SOC, getting started with this new WiFi standard is straightforward.
| Parameter | Value |
|---|---|
| Chipset | NXP i.MX6ULL (MCIMX6Y1CVM05AB) Newracom™ NRC7292 |
| RAM | 256 MB of DDR3L |
| Flash/stroage | 32 MB of QSPI NOR flash Optional 2/4/8 GB eMMC |
| Frequency | 847 MHz (TW) 866 MHz (EU) 915 MHz (US) 922 MHz (KR) 924 MHz (JP) |
| Modulation | OFDM with BPSK, QPSK, 16QAM, 64QAM |
| Data rate | 150 Kbps ~ 15 Mbps |
| Channel bandwidth | 1/2/4 MHz |
| Antenna connector | 1× IPEX4/MHF4 |
| Interfaces | USB2.0 UART |
| LED | 1× TX 1× RX 1× status 1× WLAN |
| Form factor | M.2/NGFF B-key 3042 |
| Dimensions | 30 × 42 × 4 mm |
| Software | Officially supported in OpenWrt (Linux Kernel 5.10+) and U-Boot 2021.x Newracom™ SDK available at https://github.com/newracom/ |
| Operating humidity | TBA |
| Operating temperature | TBA |
