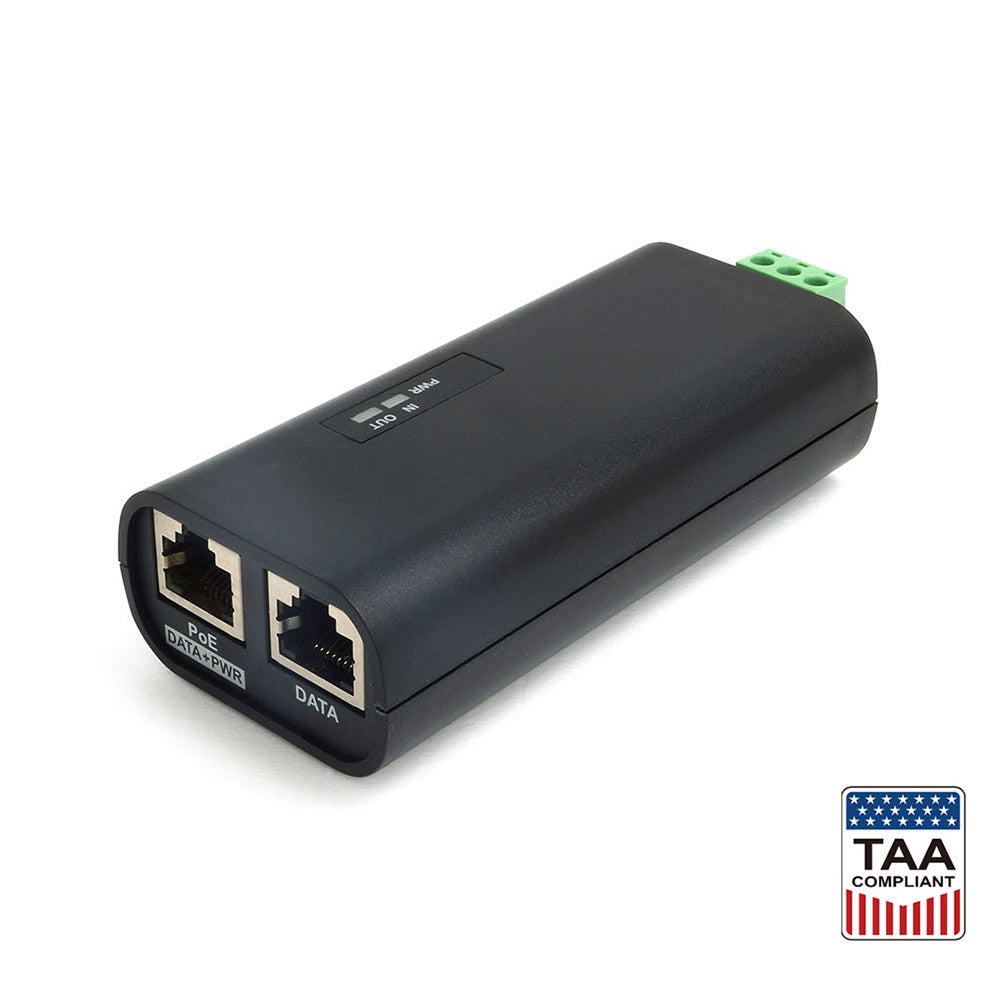

12V DC to Standard IEEE 802.3at Gigabit PoE PSE Adapter

Key features

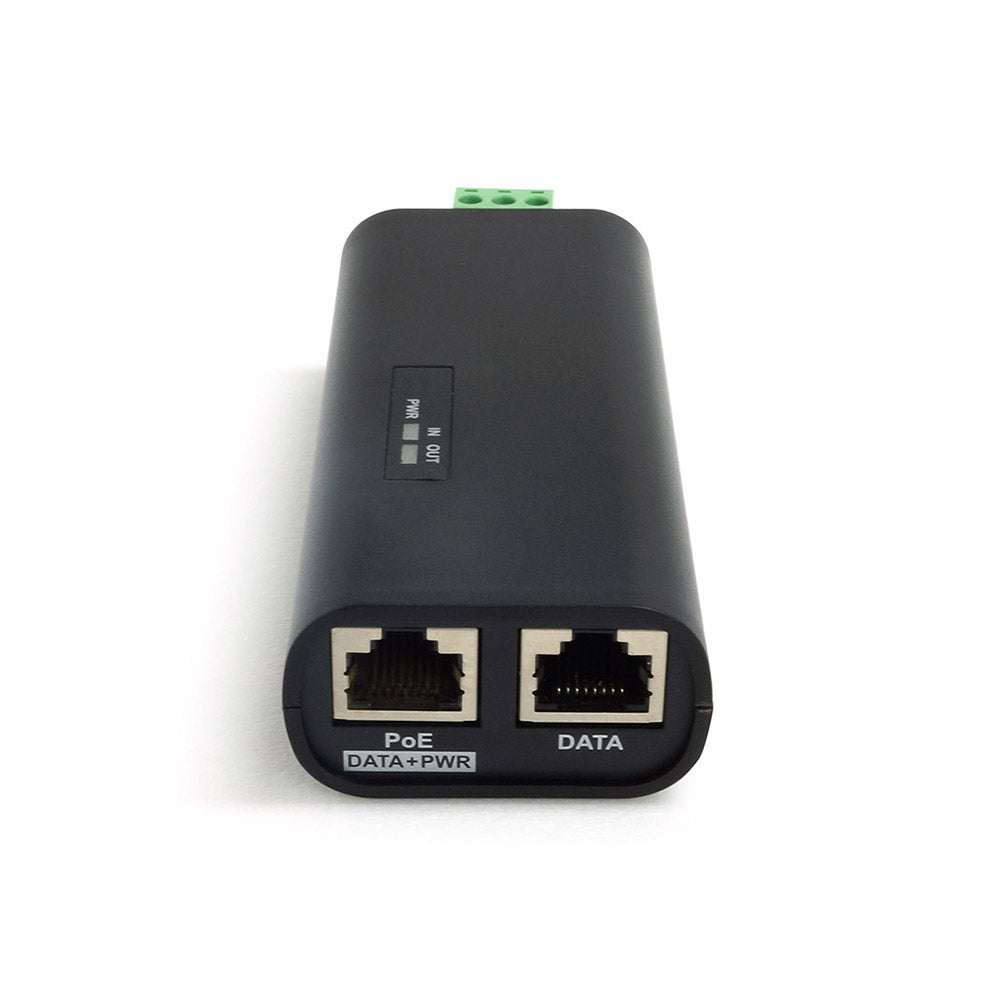

Standard PSE Output (Gigabit)
Data input (Gigabit)
2x LEDs

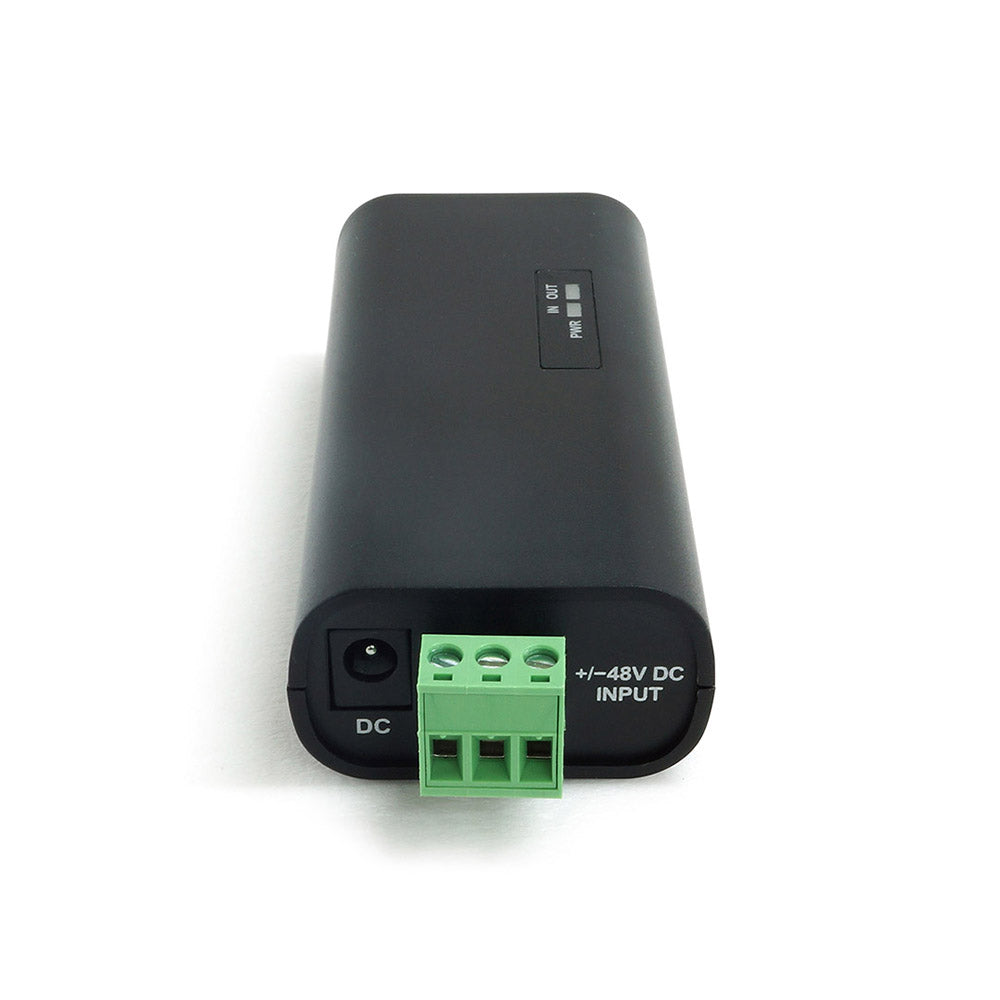

Input DC jack (2.1/5.5 mm) 12V DC ~ 48V DC

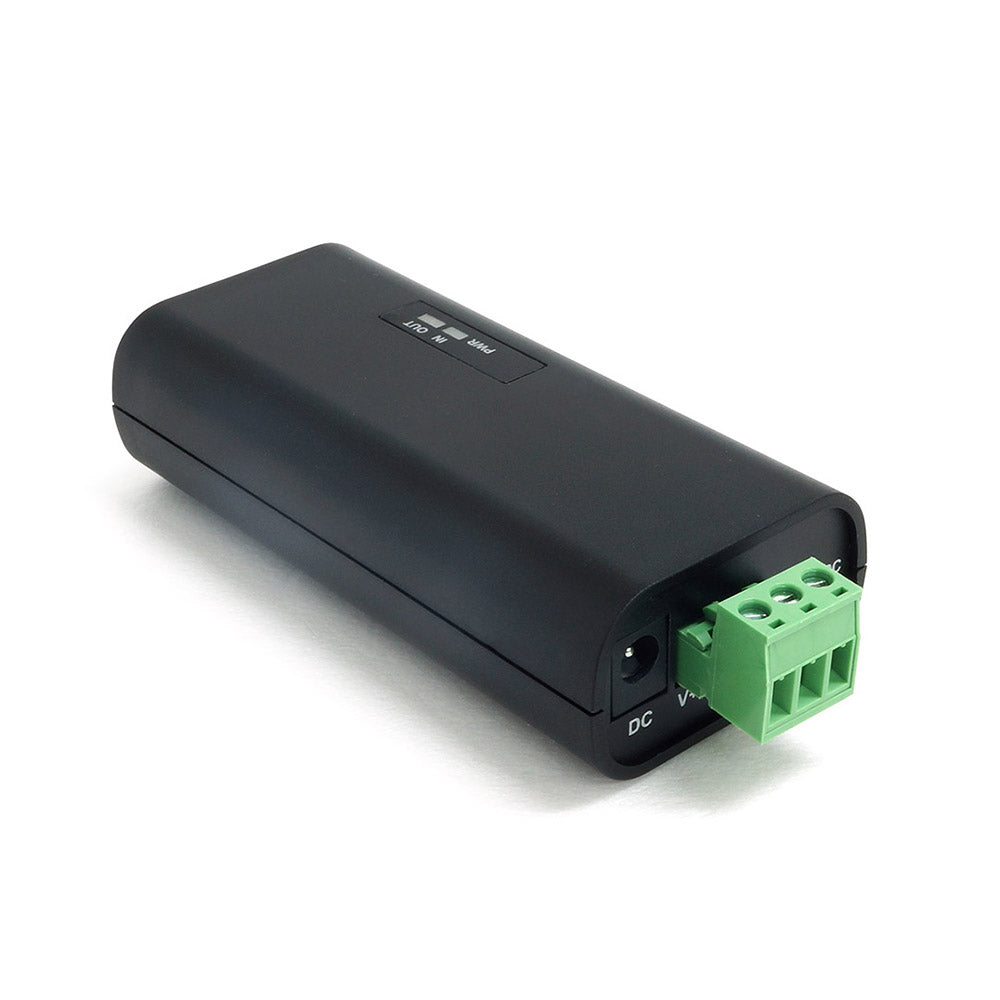

Input DC terminal block 12V DC ~ 48V DC

PSE-1248G is the Gigabit PSE Adapter that converts input source 12V DC ~ 48V DC and delivers a reliable standard 802.3at 30W output, ensuring efficient power delivery for your devices.

Specifications

DC input voltage	12V DC ~ 48V DC
DC input connector	DC jack and wire terminal (12 AWG max.)
DC output voltage	56 V DC +/- 2.5% (802.3aft)
DC output current	0.53 A (max.)
Output power	30W (max.)
Ethernet Speed	10/100/1000 Mbps (Gigabit)
Data in connector	Shielded RJ45
PoE output connector	Shielded RJ45
Self-consumption power	1.2 W @ Load 0.1 A 1.98 W @ Load 0.2 A 2.6 W @ Load 0.3 A 3 W @ Load 0.4 A 3.7 W @ Load 0.5 A
Efficiency	78.5% @ Load 0.1 A 82.3% @ Load 0.2 A 84.6% @ Load 0.3 A 86.4% @ Load 0.4 A 87% @ Load 0.5 A
Line regulation	+/- 2.5%
Load regulation	+/- 5%
Ripple	3%
Noise	3%
Operating temperature	-30 °C ~ 50 °C
Operating humidity	5% ~ 90%
MTBF	160,000 hours
