WiFi CampPro 2

Extend WiFi hotspot signal and share to multi devices
Friendly setup
Vehicle power surge protection
Solution for boat, RV and mobile house

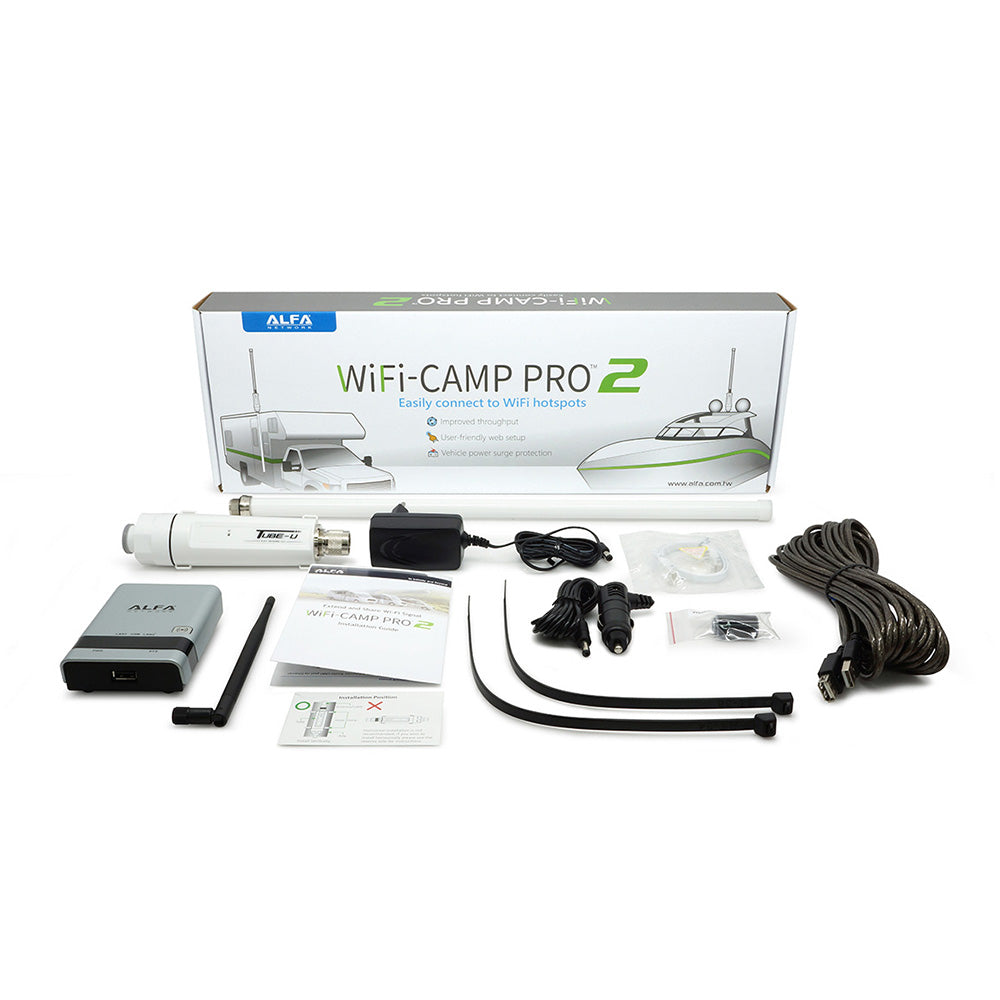

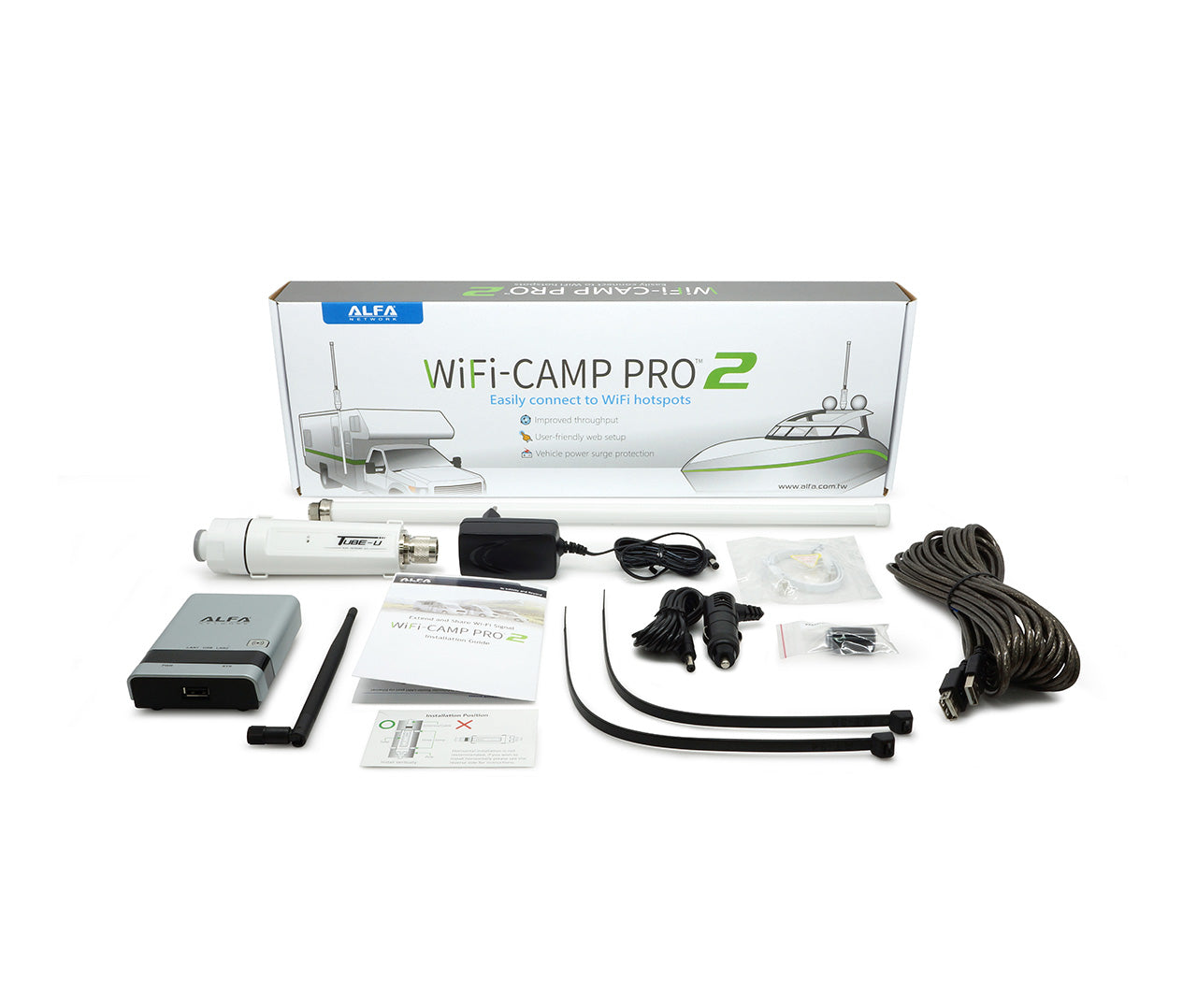

WiFi CampPro 2 is the sloution to extend WiFi hotspot signal and share to multi devices. It is the reliable and wide coverage for RV travellers, marine Internet access.

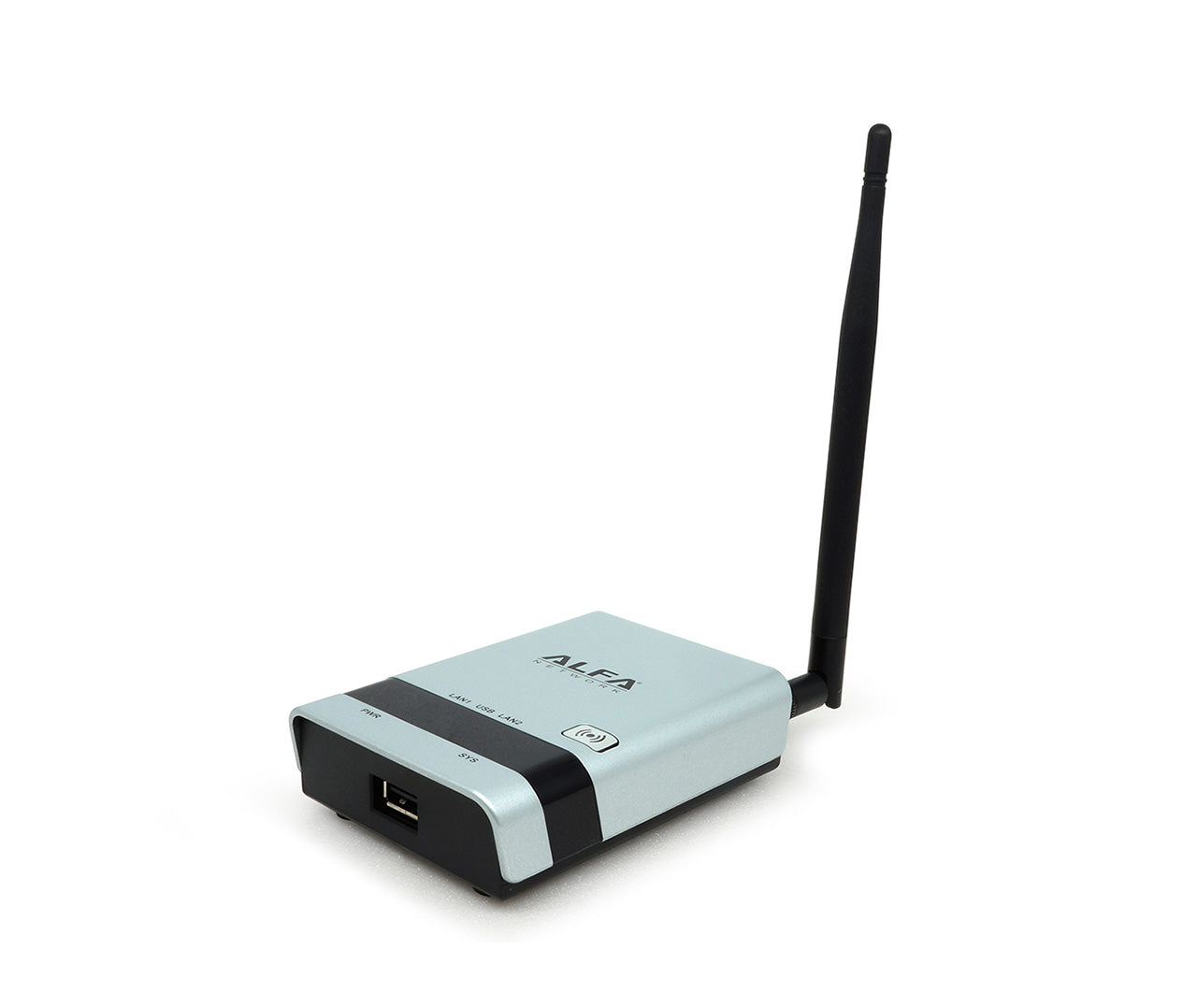

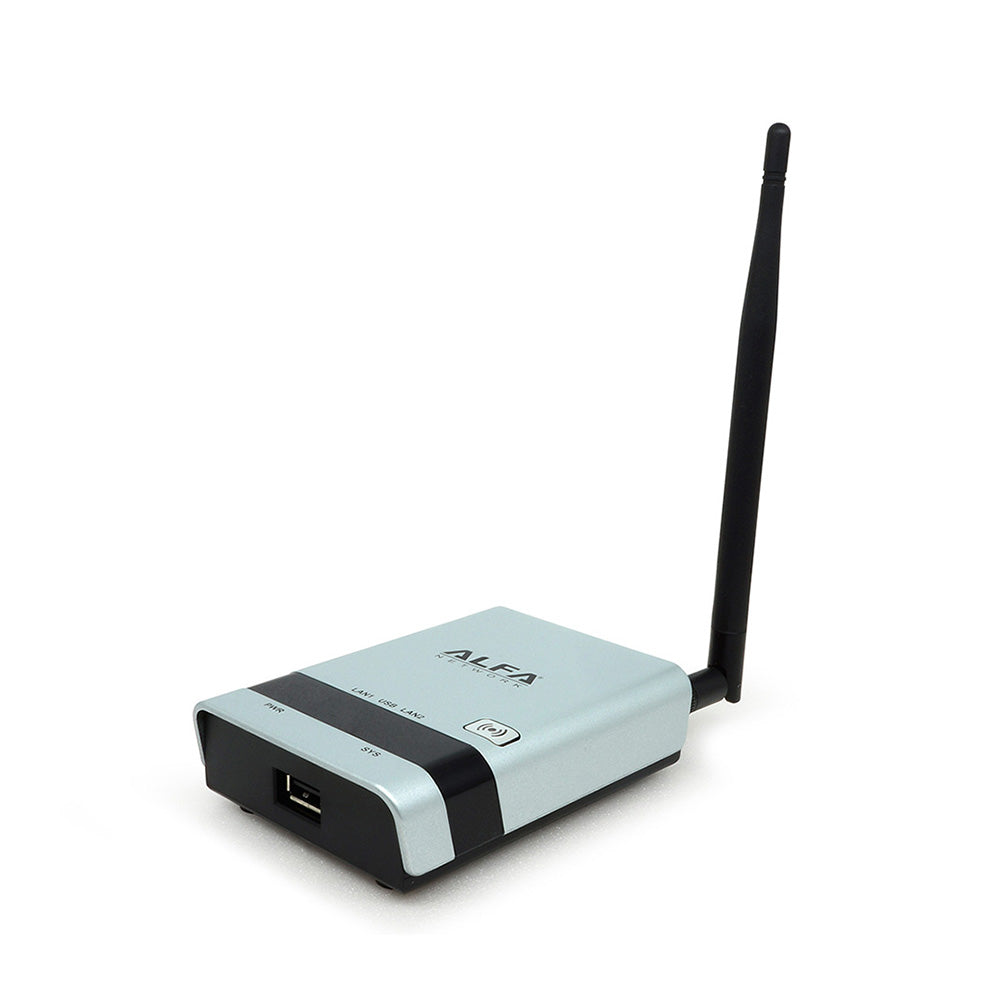

Indoor WiFi Device

Wi-Fi Standard	IEEE802.11n IEEE802.11g IEEE802.11b
Frequency	2.142 GHz - 2.472 GHz
Channel-Width	20/40 MHz
Data Rate	802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 300 Mbps
Antenna	1x internal 1x external
LED Indicators	Power, LAN, WAN, WLAN, USB
Power Requirement	12V DC
Security	WEP 64/128 bit WPA-PSK WPA-EAP (PEAP/TTLS) WPA2-PSK WPA2-EAP WPA Mixed 802.1x authentication
Operation Temperature	-20 °C ~ 40 °C
Storage Humidity	10% ~ 90% (Non-conensing)
Dimension (mm)	93 x 70 x 26 mm
Weight	74g

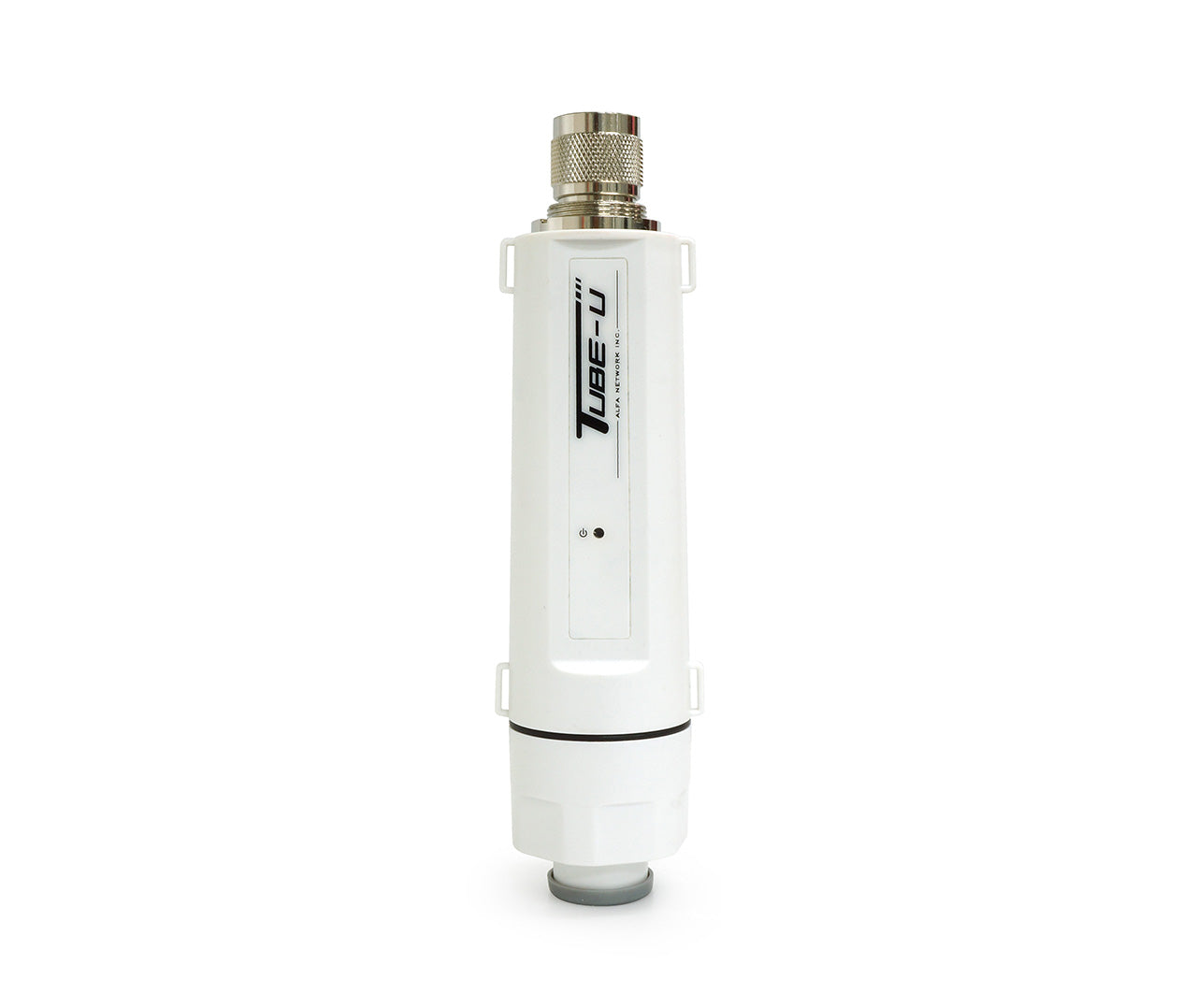

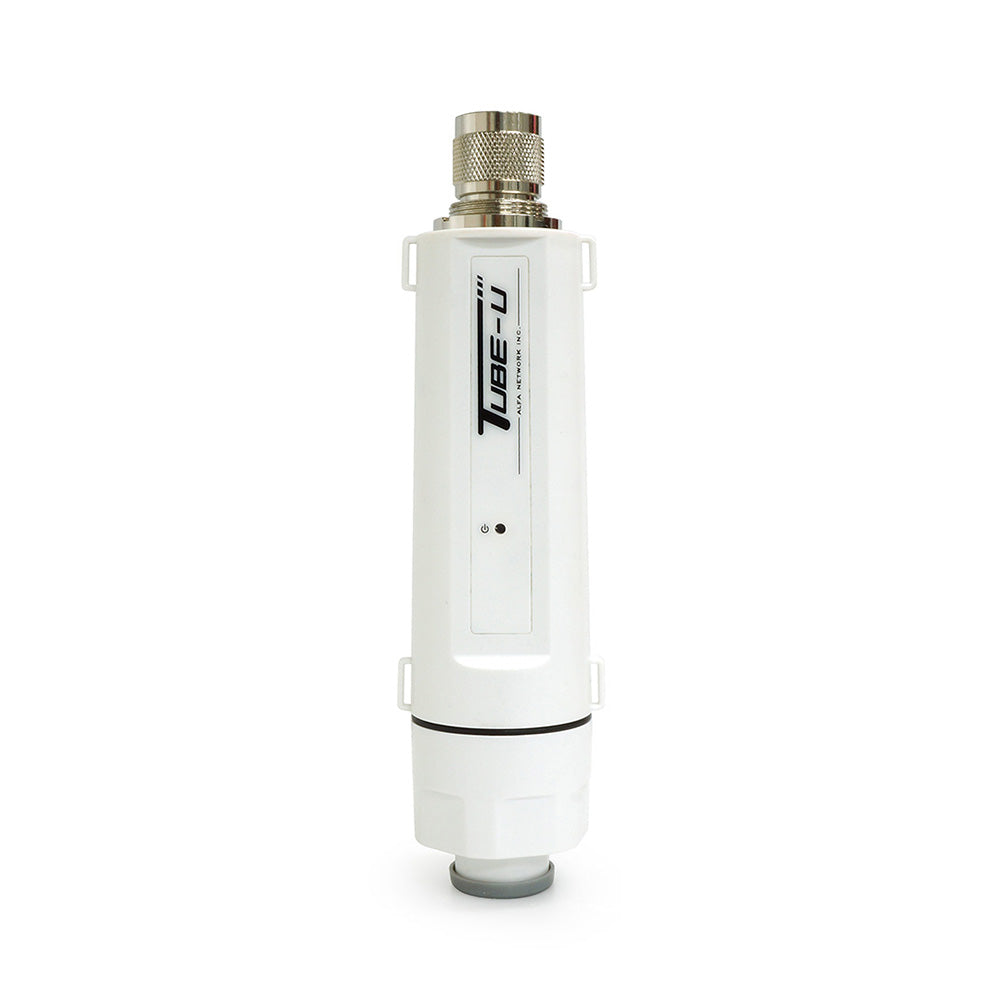

Outdoor WiFi USB Device

Wi-Fi Standard	IEEE802.11n IEEE802.11g IEEE802.11b
Frequency	2.142 GHz - 2.472 GHz
Channel Width	20/40 MHz
Antenna Connector	N male
Interface	USB Type-A
LED Indicator	Power / Connection
Power Required	5VDC ± 5%

Outdoor Antenna

Frequency	2400 MHz - 2500 MHz
Gain	9 dBi
Impedance	50Ω
VSWR	2.0 : 1
Radiation	Omni
Connector	N female
Material	Fiber glass
Length	460 mm

Indoor Antenna

Frequency	2400 MHz - 2500 MHz
Gain	5 dBi
Impedance	50Ω
VSWR	2.0 : 1
Radiation	Omni
Connector	RP-SMA female
Material	Rubber
Length	171.5 mm
