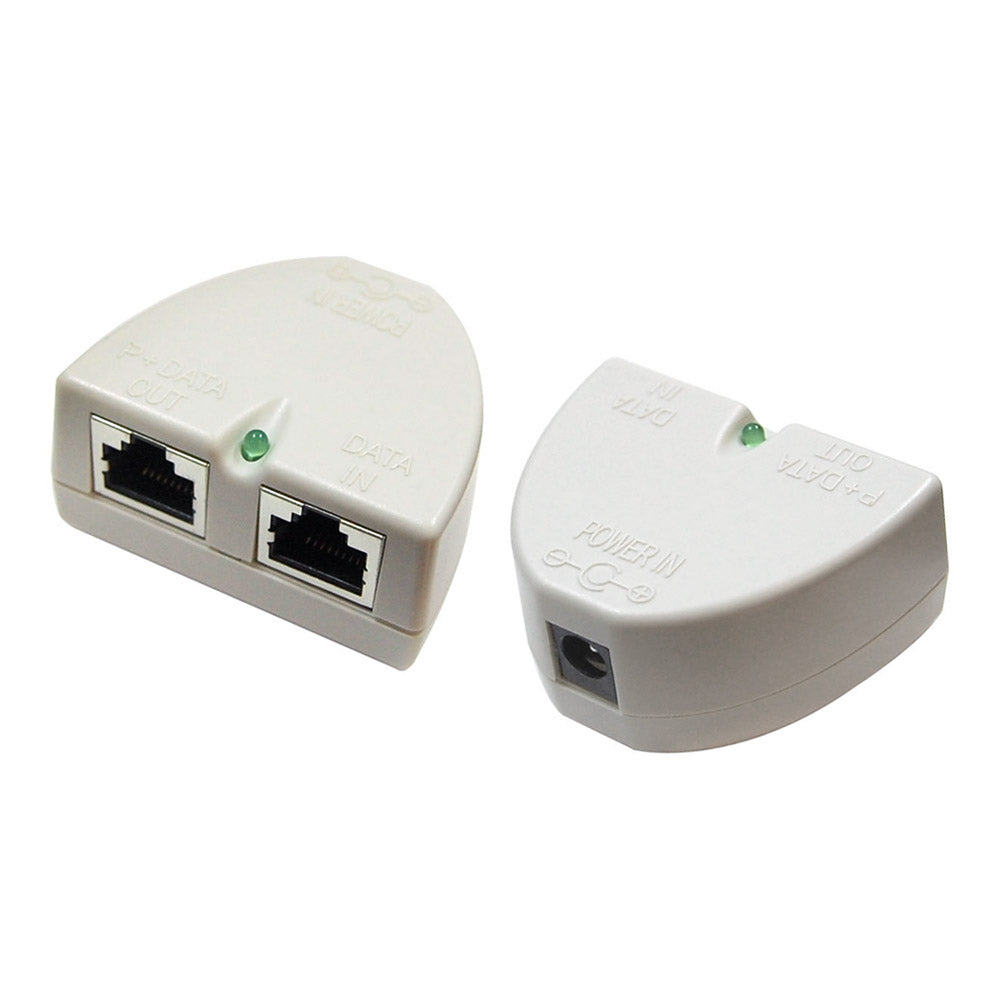

APOE01

APOE01

APOE01

RJ45 Input / Output Connector
Input / Output Common Ground
Power/ Data Mixer
Temperature Storage : -40 ~ 70°C
Temperature Operation: -30 ~ 60 °C

Pin Assignment:

Pin	Input	Output	Pin
1 Tx	(+)	Tx	(+)
2 Tx	(-)	Tx	(-)
3 Rx	(+)	Rx	(+)
4	N.C.	+48V	4
5	N.C.	+48V	5
6	Rx (-)	Rx (-)	6
7	GND	GND	7
8	GND	GND	8
