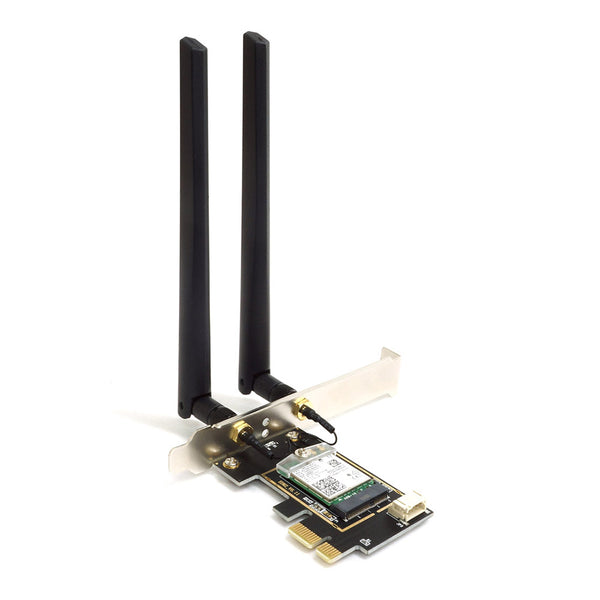

AIT-AX210-EX is a WiFi 6E PCIe card, based on the Intel AX210 module
AIT-AX210-EX supports the latest WiFi 6E (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.3, is backward compatible and operates in 2.4, 5 and 6 GHz bands.
The PCI Express ×1 interface allows using this set in any desktop PC equipped with PCIe ×1, ×4, ×8 or ×16 slot.
Key features
- Intel AX210 WiFi 6E and BT5 module (M.2/NGFF A+E-key 2230)
- PCIe ×1 to M.2/NGFF A+E-key 2230 adapter (support for PCIe ×1 and USB 2.0 bus)
- Dual RP-SMA female magnetic antenna stand (with 2-meter RG-174 RF cable)
- 2× tri-band dipole antenna 3 (5 dBi gain)
Specifications
|
Parameter |
Value |
|
Intel product code |
AX210NGW |
|
IEEE 802.11 standards |
a/b/g/n/ac/ax |
|
Special features |
OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT |
|
Frequency |
2.4 GHz |
|
Data rate |
Up to 2.4 Gbps |
|
Bluetooth |
5.3 |
|
Antenna type |
2× tri-band dipole (5 dBi gain) |
|
Antenna connectors (adapter) |
2× RP-SMA (pigtail RF cables included) |
|
Antenna connectors (module) |
2× IPEX4 (MHF4) |
|
Interface |
PCIe x1 (WiFi) |
|
Operating systems |
Microsoft Windows 10 and 11 |
|
Form factor (adapter) |
PCI Express ×1 (compatible with ×4, ×8 and ×16 slot type) |
|
Form factor (module) |
M.2/NGFF A+E-key 2230 |
|
Bundle contents |
- 1× Intel AX210NGW module |
|
Dimensions |
TBA |
