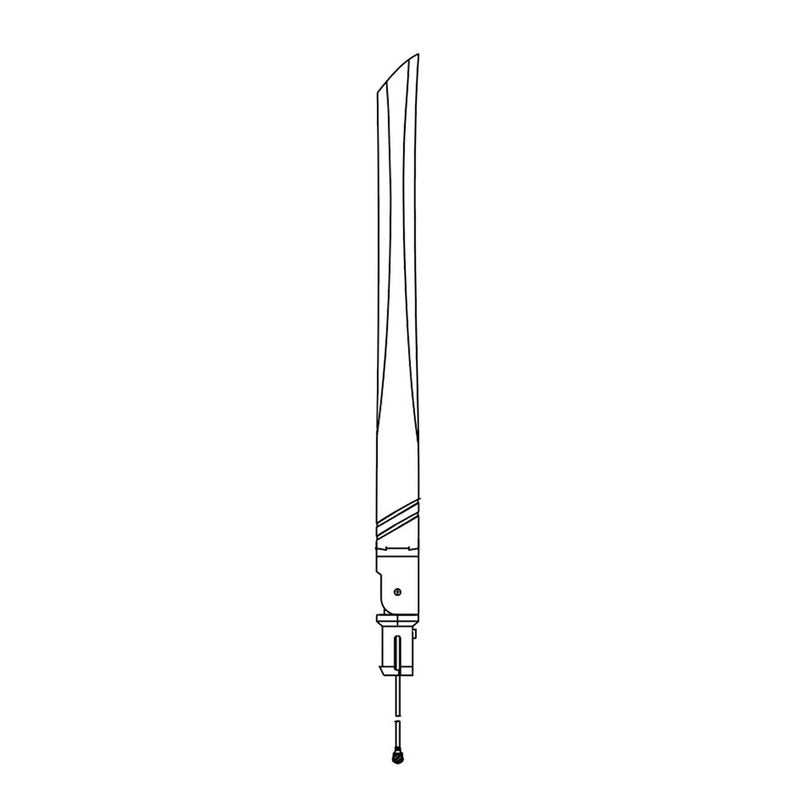

ARS-W7U

ARS-W7U

ARS-W7U

Wi-Fi 7 Stud Lock Dipole Antenna
Tri-Band IPEX

Specifications

Frequency Range	2400 - 2500 MHz 5150 – 5850 MHz 5925 – 7125 MHz
Gain	4 dBi / 2400 – 2500 MHz 5.5 dBi / 5150 – 5850 MHz 7.5 dBi / 5925 – 7125 MHz
V.S.W.R	≤ 2.0 / 2400 – 2500 MHz ≤ 3.0 / 5150 – 5850 MHz ≤ 3.5 / 5925 – 7125 MHz
Radiation	Omni
Polarization	Linear
Impedance	50 Ω
Cable Type	1.13 mm
Connector	IPEX
Dimensions	⌀13 x 196 mm
Weight	20 g
Temperature	-40 °C to 75 °C
Humidity	95% @ 25 °C

Dimension Drawing

V.S.W.R

Gain & Efficiency Test Data

Frequency (MHz)	2400	2420	2440	2460	2480	2500
Gain (dBi)	3.43	3.17	2.70	3.29	3.50	3.07
Efficiency (%)	53.58	55.53	52.72	58.92	63.43	64.53

Frequency (MHz)	5150	5350	5580	5725	5785	5850
Gain (dBi)	3.70	3.41	4.80	5.11	3.96	5.34
Efficiency (%)	41.47	40.10	48.70	45.86	46.09	47.69

Frequency (MHz)	5925	6125	6325	6525	6825	7125
Gain (dBi)	7.93	7.38	8.46	9.11	4.20	7.32
Efficiency (%)	68.78	65.47	70.37	78.93	43.32	66.02
