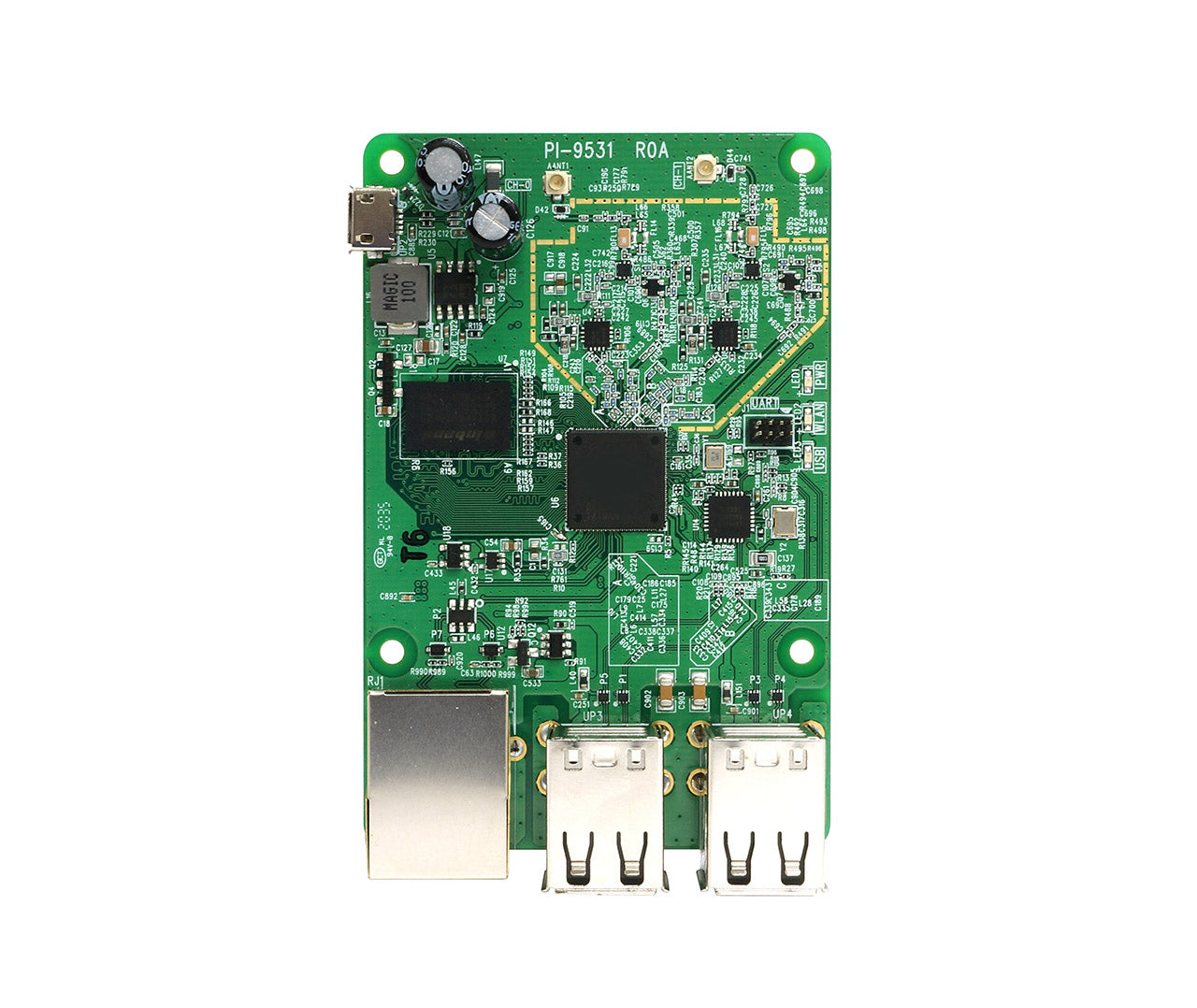

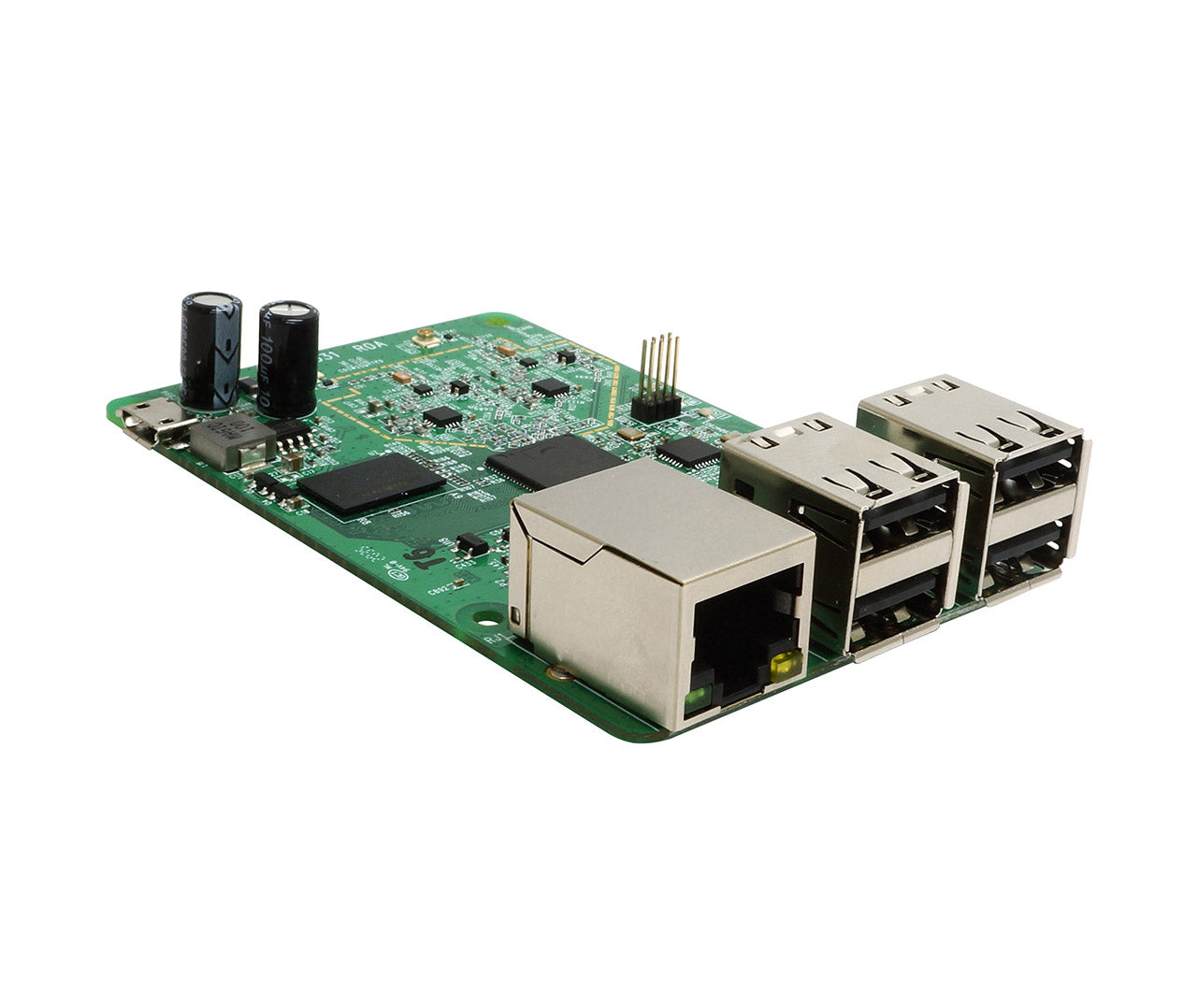

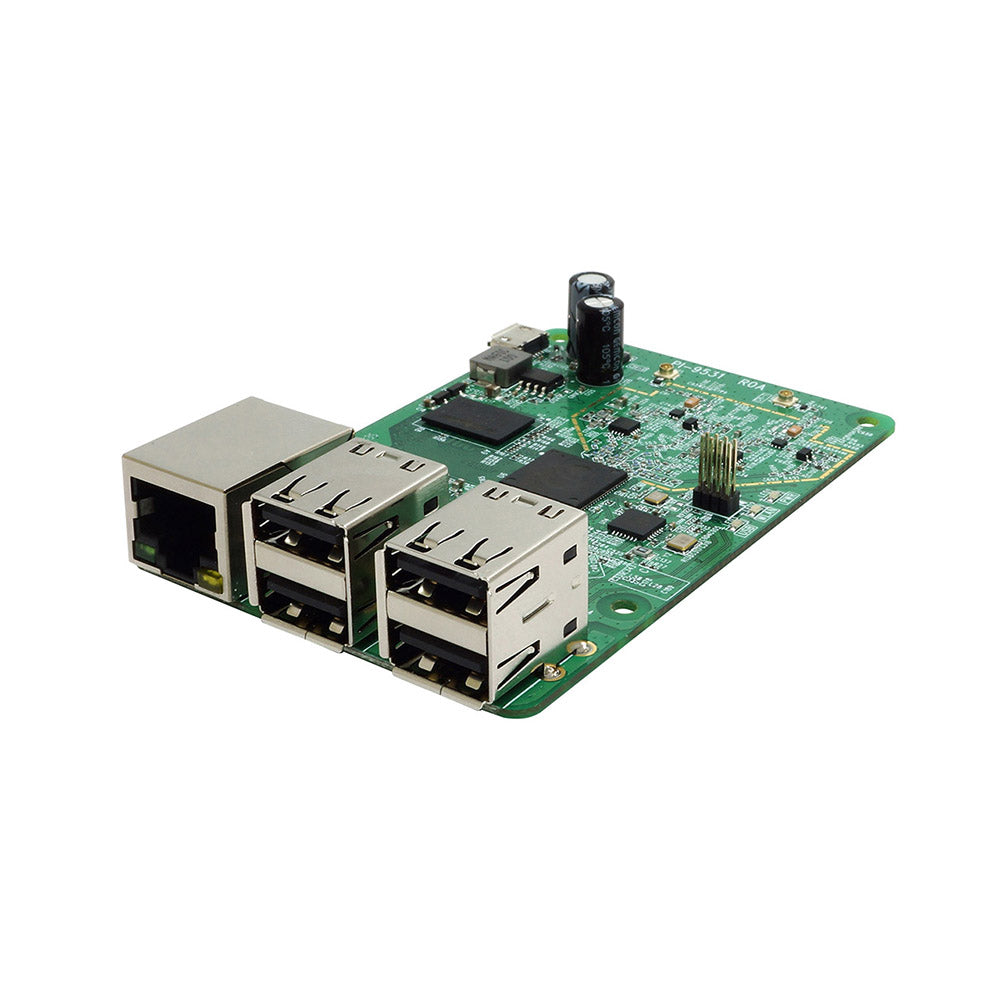

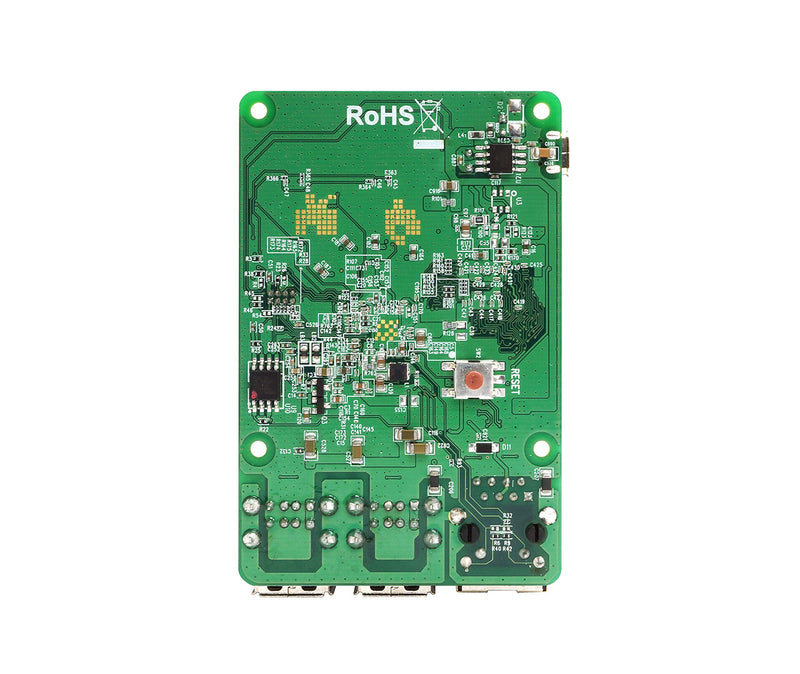

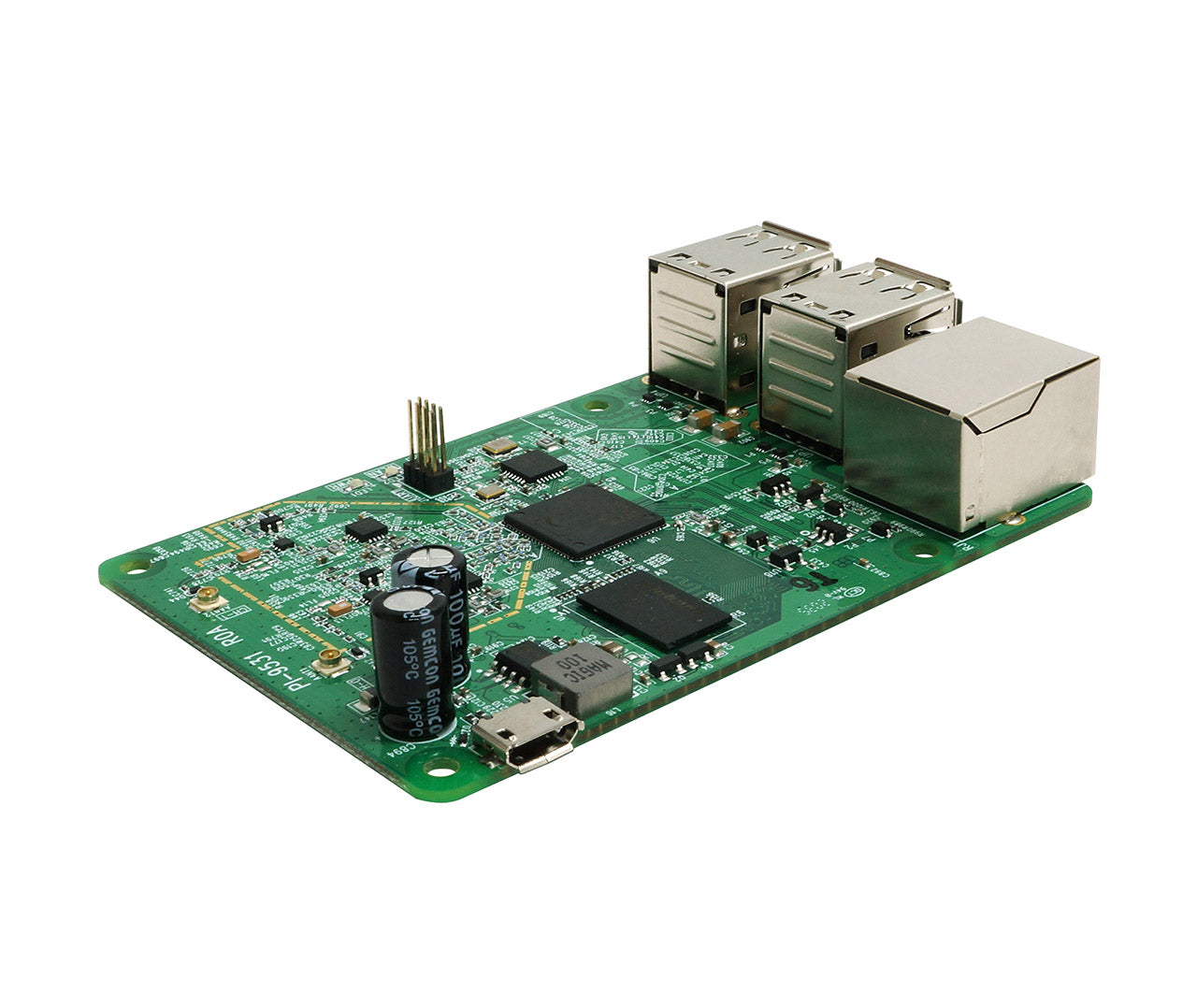

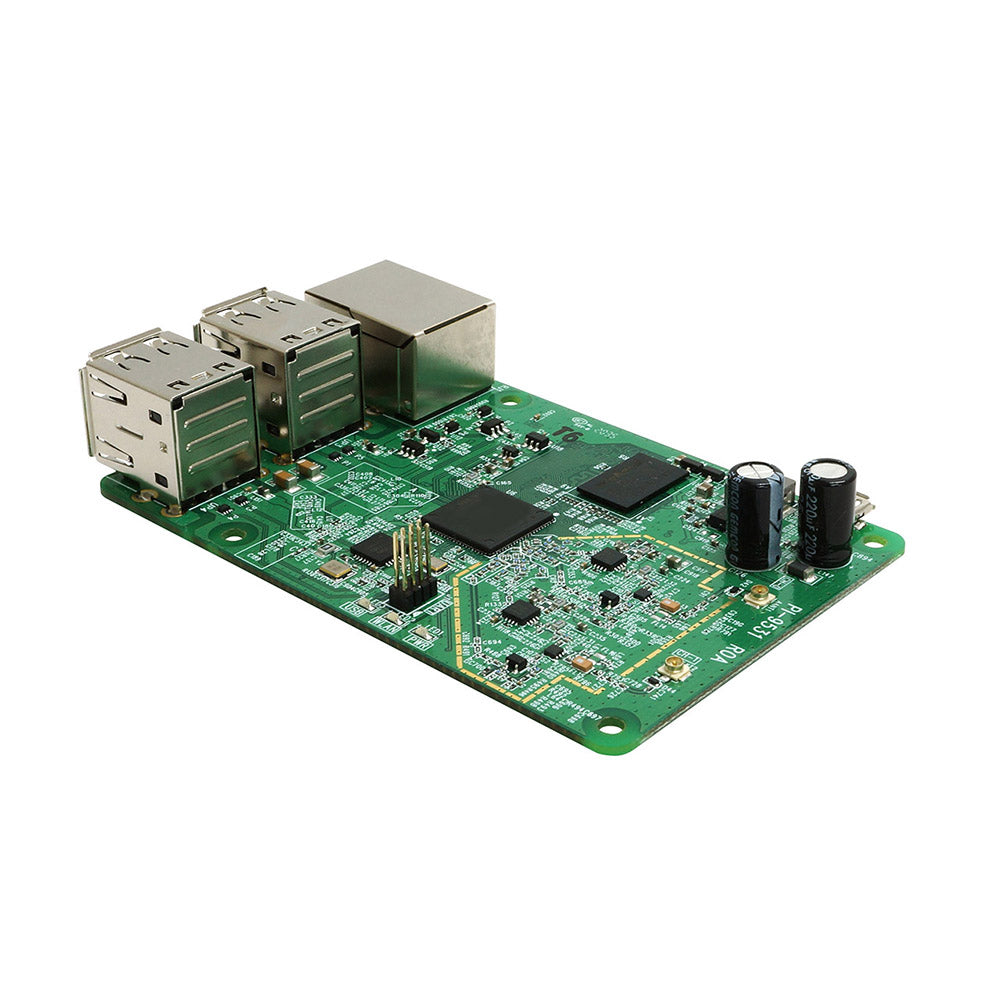

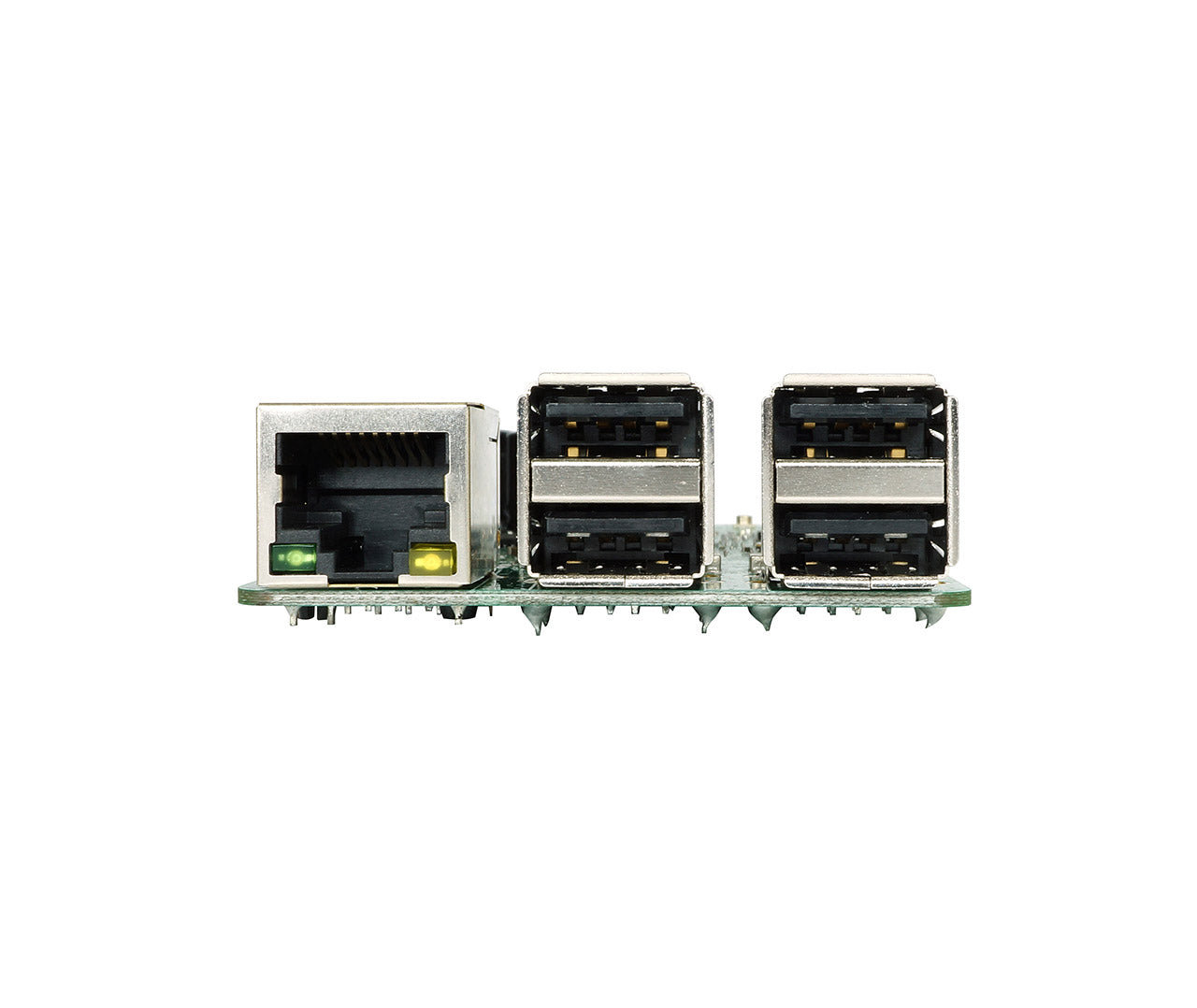

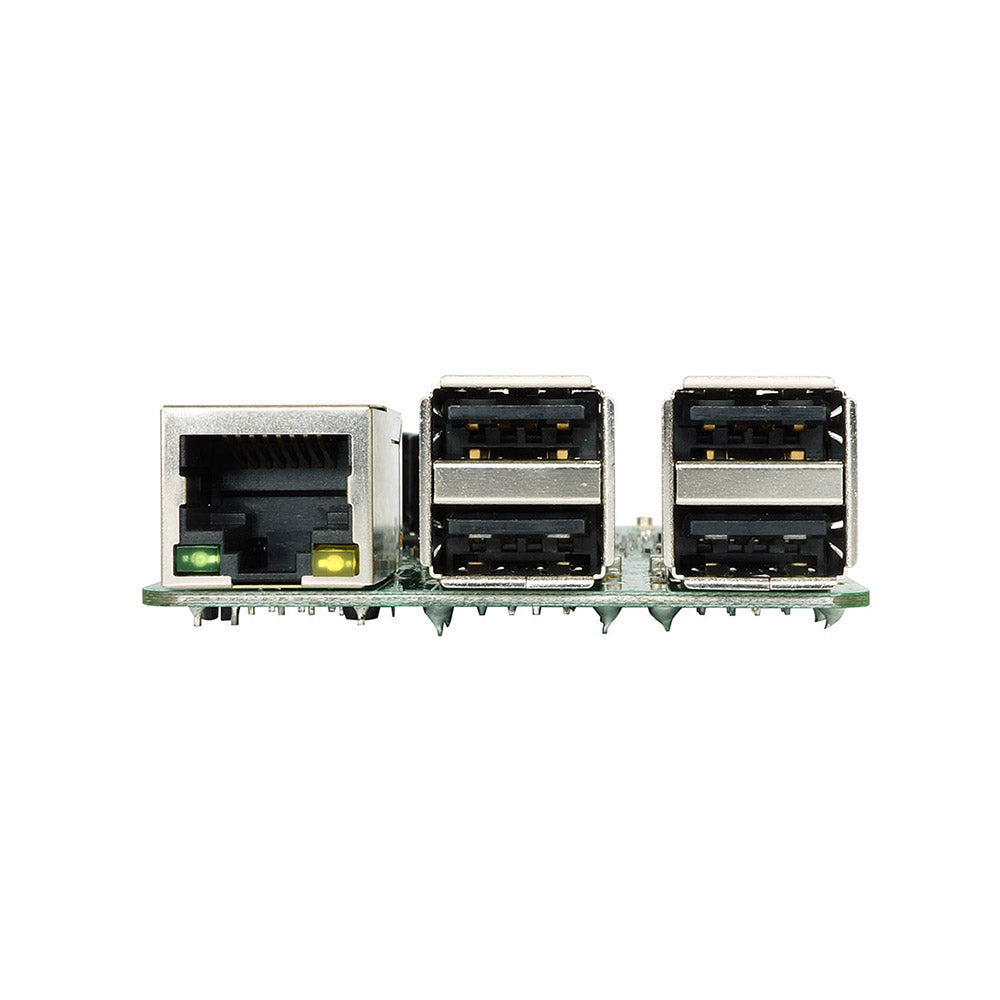

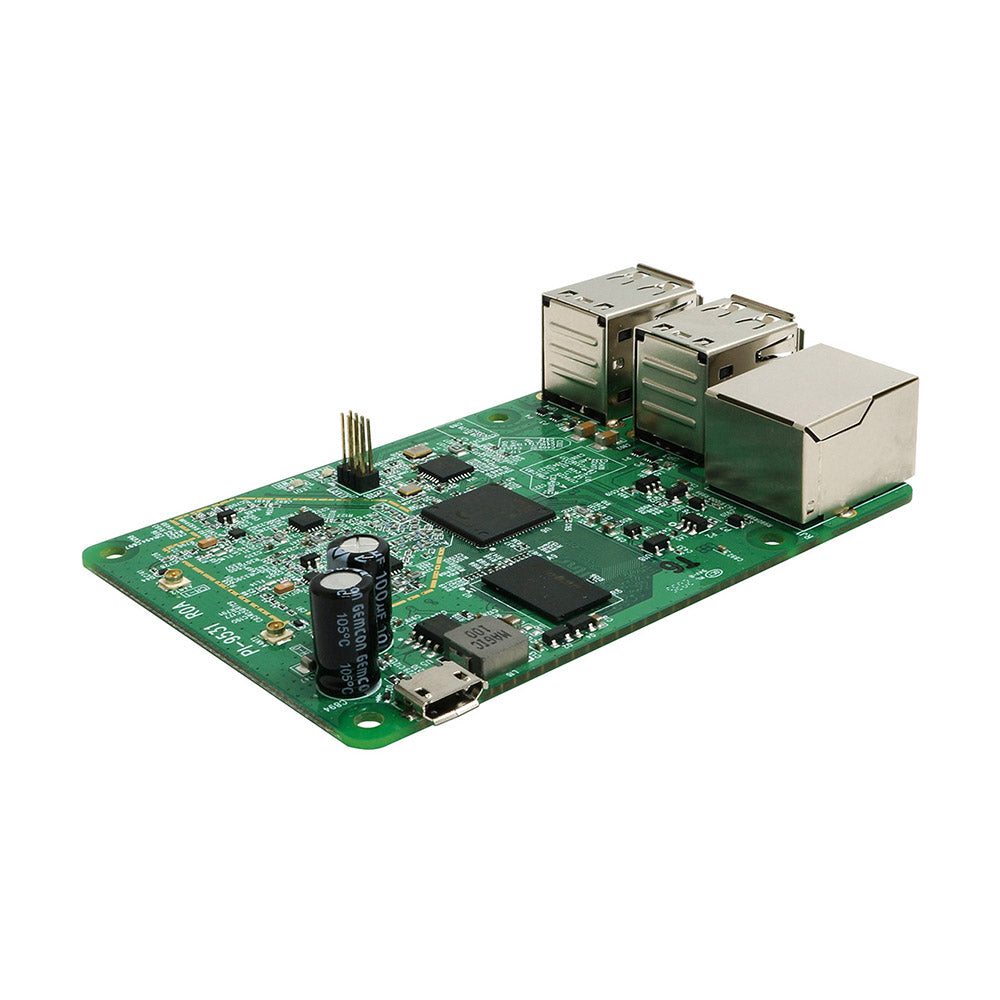

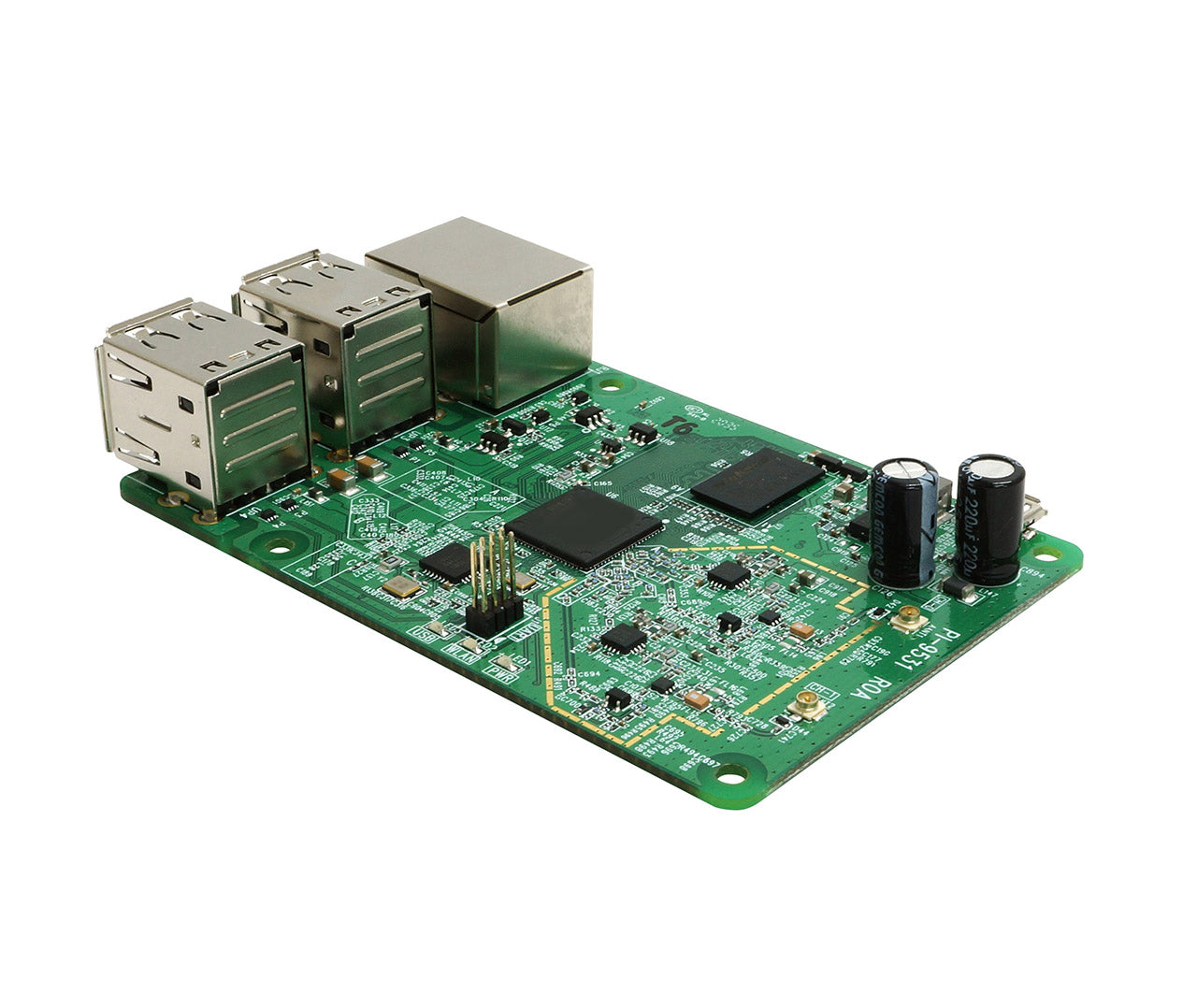

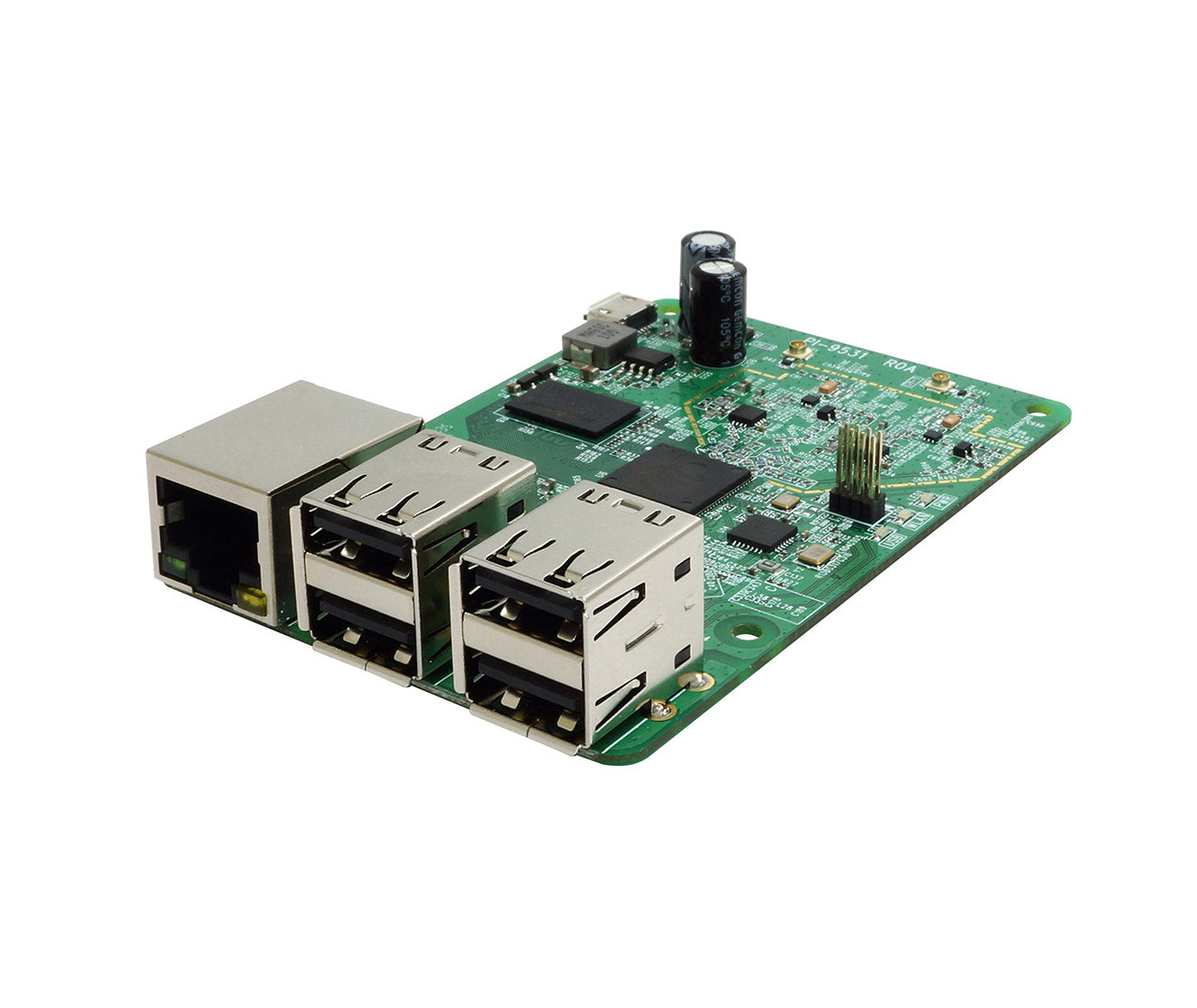

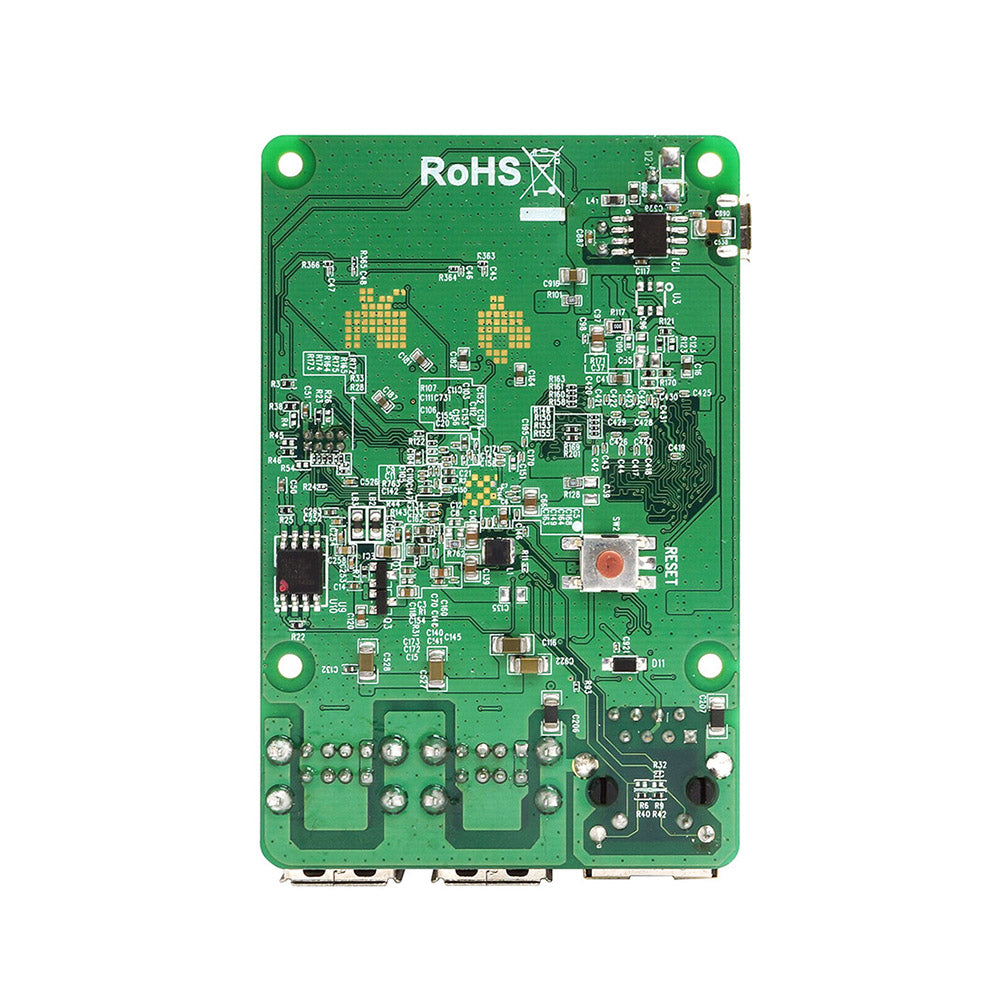

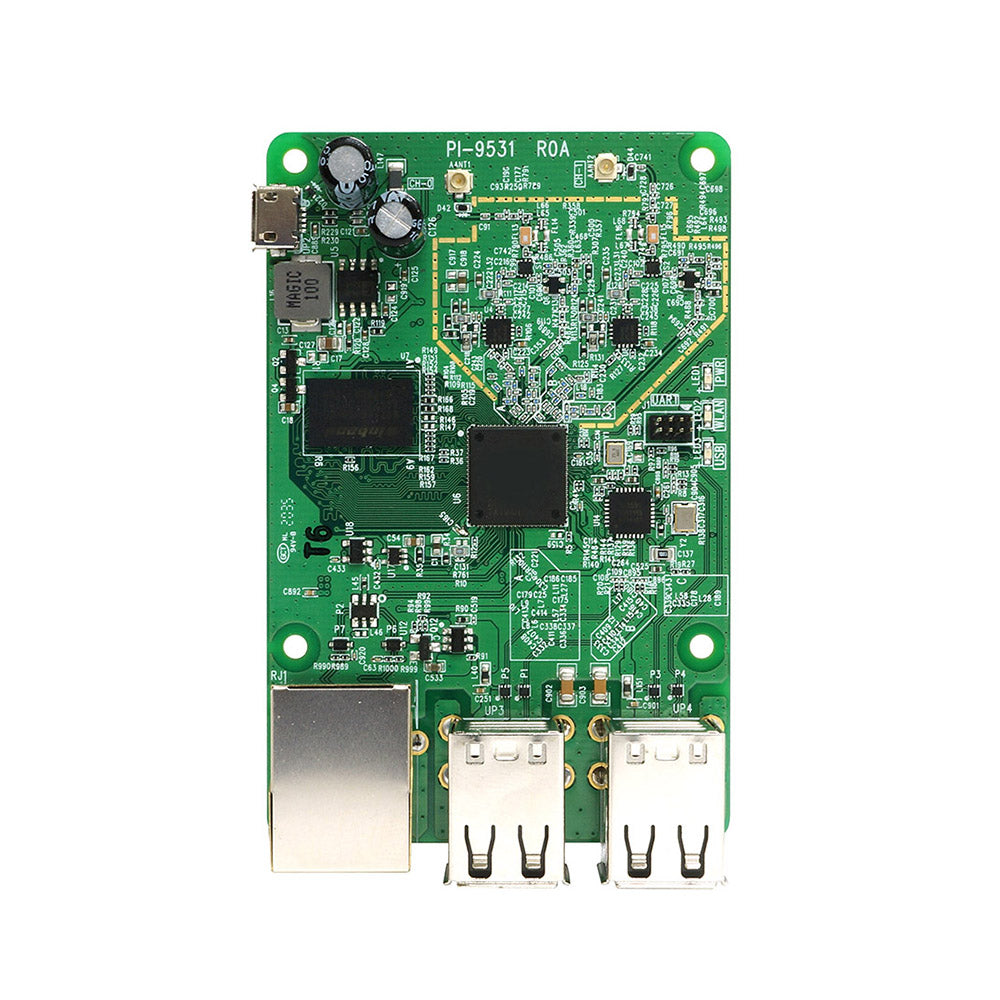

Pi-WiFi4_PCBA

Raspberry Pi™ form factor embedded board with 2.4 GHz WiFi 4, Ethernet and 4× USB 2.0

Qualcomm™ QCA9531 (650 MHz single-core MIPS)
128 MB of DDR2 RAM
16, 32 or 64 MB of SPI NOR flash
Integrated WiFi N300 2.4 GHz (up to 27 dBm)
1× Fast Ethernet with ESD protection
4× USB 2.0 Type-A (host)
1× push-button
8-pin console and GPIO header (1.27 mm pitch)
1× USB 2.0 micro Type-B (power, system console)
3× LED

Description

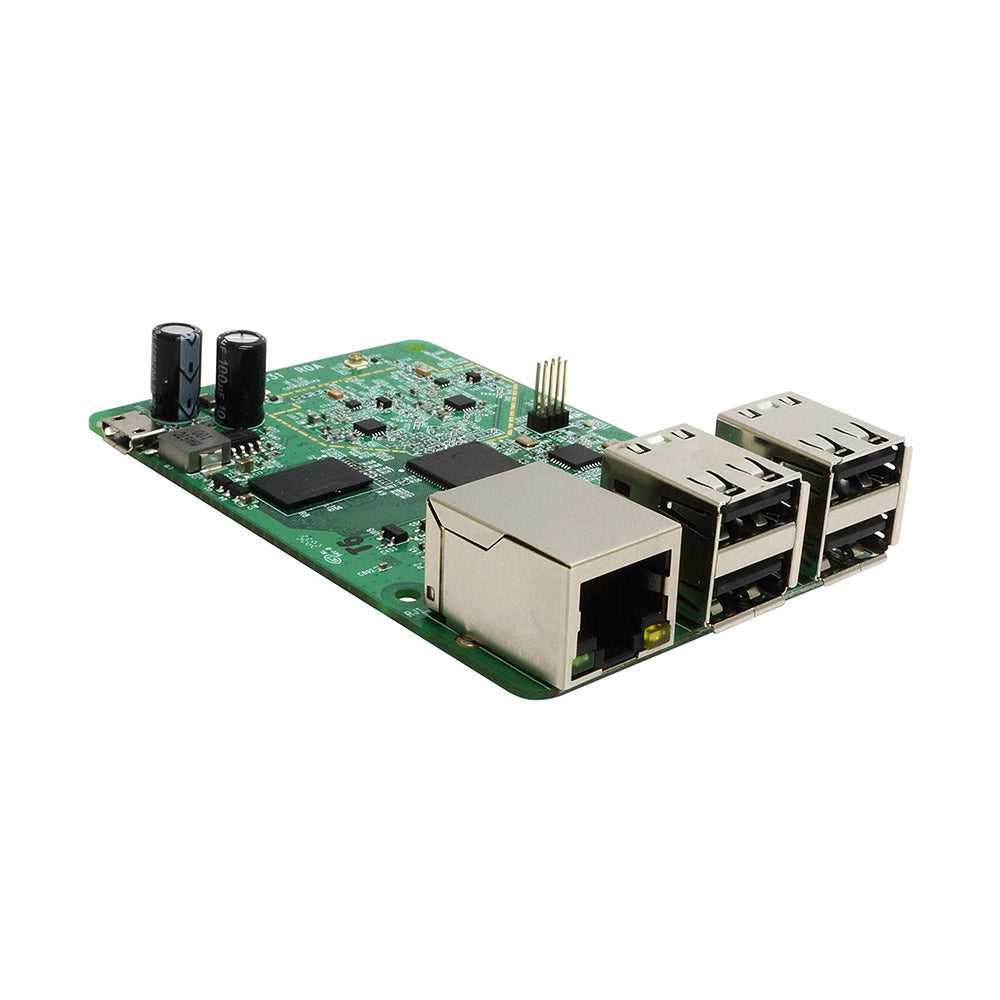

Pi-WiFi4 PCBA is a high-power WiFi 802.11n router board in Raspberry Pi™ 3B shape, equipped with Fast Ethernet and 4× USB 2.0

Pi-WiFi4 offers an integrated 802.11b/g/n WiFi (2.4 GHz, N300, up to 27 dBm) radio with IPEX/U.FL antenna connectors, single Fast Ethernet and four USB 2.0 interfaces for various applications.

Official OpenWrt support, web-based recovery and system serial console access over the micro USB connector (driver free) make development extremely easy.

Specifications

Parameter	Value
SOC	Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU
RAM	128 MB of DDR2
Flash	16, 32 or 64 MB of SPI NOR flash
WiFi	802.11b/g/n 2T2R 2.4 GHz 2× IPEX/U.FL antenna connectors
USB	4× USB 2.0 Type-A (host) Genesys Logic GL850G USB 2.0 HUB 1× USB 2.0 micro Type-B for system serial console access (driver free)
Ethernet	1× Fast Ethernet with ESD protection
Pin headers	1× 8-pin system serial console and GPIO (1.27 mm pitch)
Button	1× push-button (reset)
LED	1× power (blue) 1× USB (blue) 1× WLAN (blue)
Other	External hardware watchdog
Software	U-Boot with web-based firmware recovery support Officially supported in OpenWrt (Linux Kernel 5.4)
Power supply	USB 2.0 micro Type-B for 5 V DC input
Mounting holes	∅ 3 mm, 58 × 49 mm
Dimensions	85 × 56 × 17 mm
Operating humidity	5 % ~ 95 % RH, non-condensing
Operating temperature	-40 ° ~ 65 ° C
Weight	36 g
