ODC-2458

ODC-2458

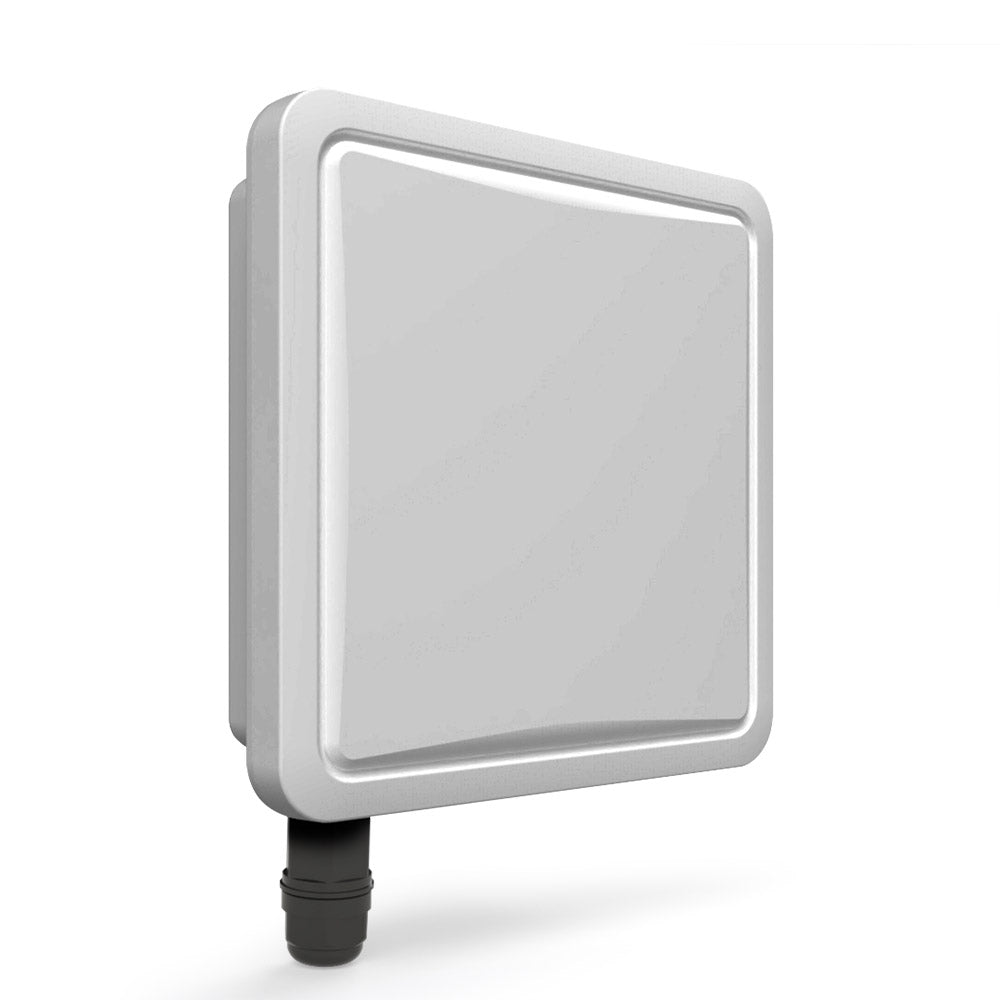

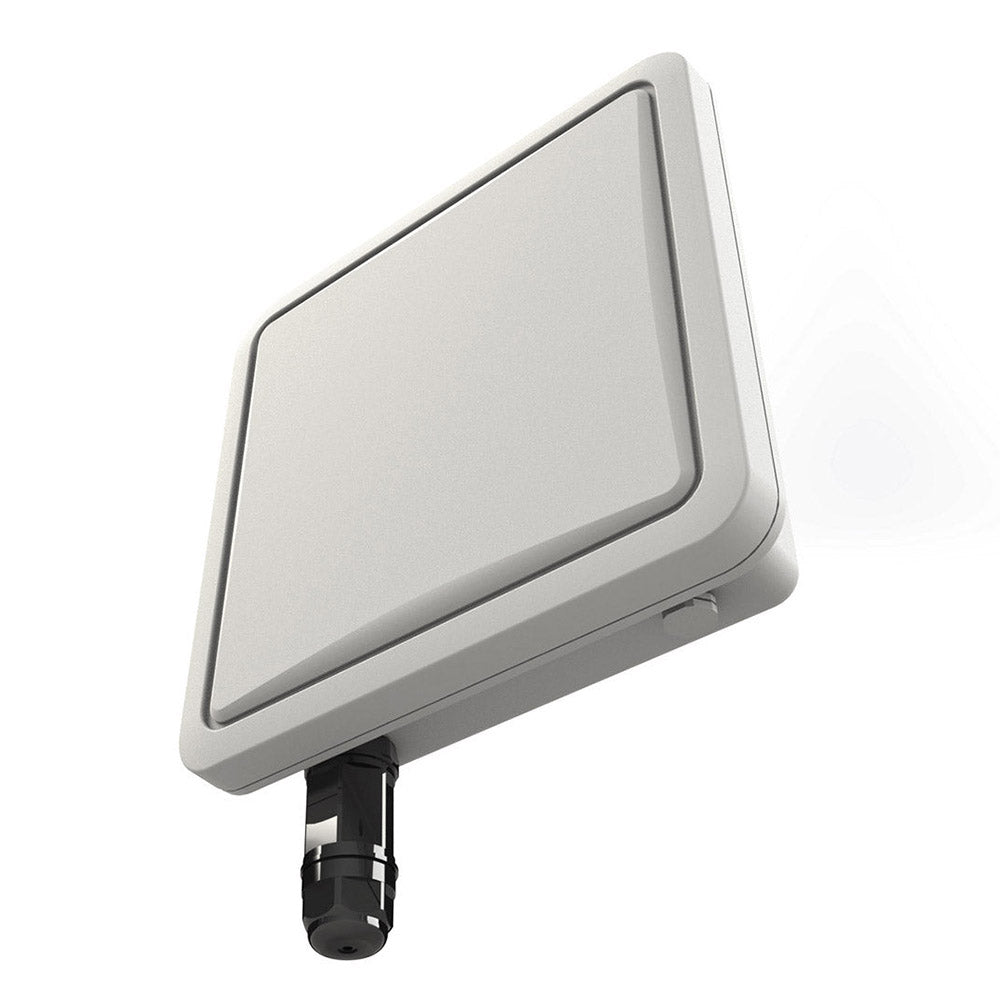

Outdoor Antenna Enclosure 2x2 2.4 GHz + 5 GHz

  1. ABS UV resistance plastic
  2. 2.4 GHz + 5 GHz MIMO antenna
  3. Waterproof RJ45 connector
  4. Waterproof vent
  5. Adjust antenna angle pole mount

Specifications

Materials

ABS UV resistant plastic

Environment resistance

IP66

Mounting diameter

40 - 70 mm (1.5 – 2.7 inches)

Dimensions



Outside 230 x 230 x 75 mm (9 x 9 x 3 inches)

Inside: 193 x 193 x 45 mm (7.5 x 7.5 x 1.7 inches)

Weight

900 g (2 lbs)

Antenna total gain

12 dBi

RF cable length

2x 150 mm (6 inches)

Antenna connector

2x IPEX

Interface

1x waterproof RJ45 connector

1x waterproof vent



Antenna Test Report




2D Drawing
