AUCM5G

Compact 5G Sub-6G modem with USB Type-C, dual-SIM and 2.4 Gbps maximum download throughput

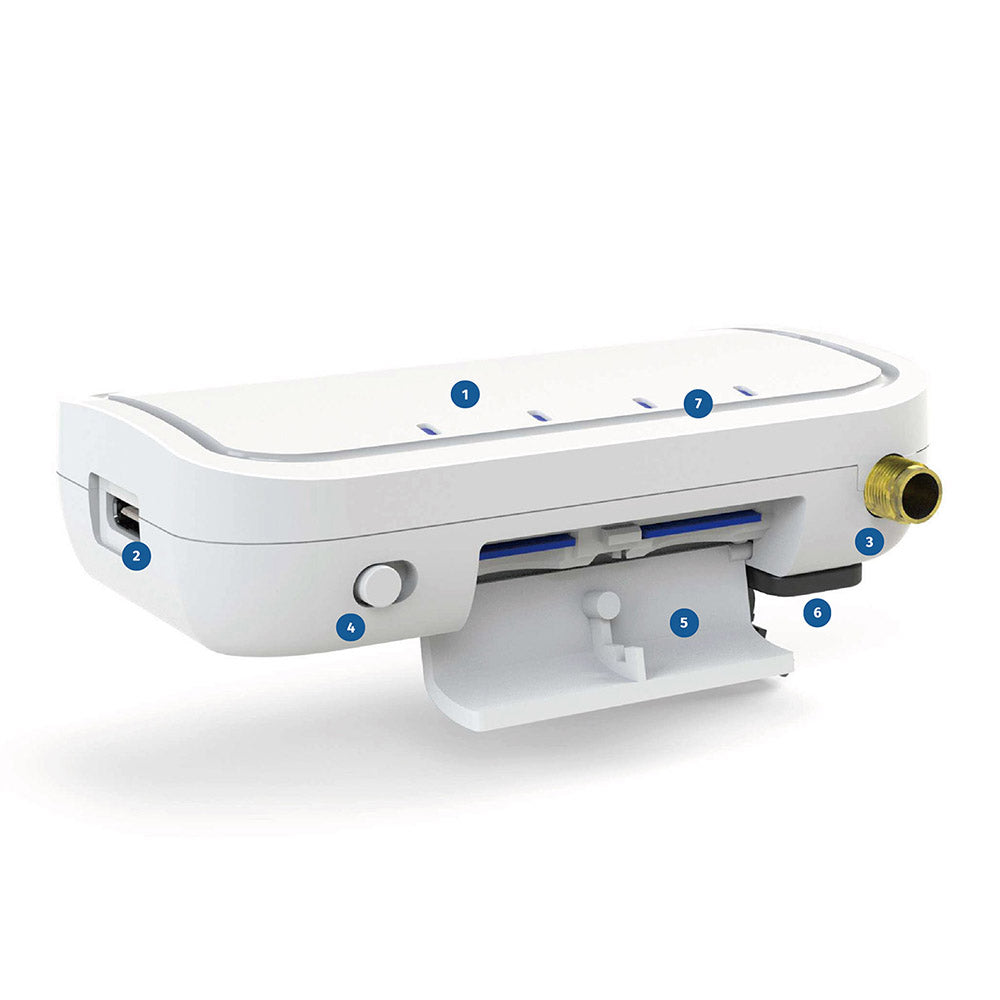

(1) Embedded SIMCom™ SIM8202G-M2 or Quectel RM500Q-GL module
(2) USB Type-C receptacle (USB 3.1 bus support)
(3) 2× external and 2× internal antennas
(4) Mechanical switch for SIM selection
(5) mini SIM and micro SIM slots

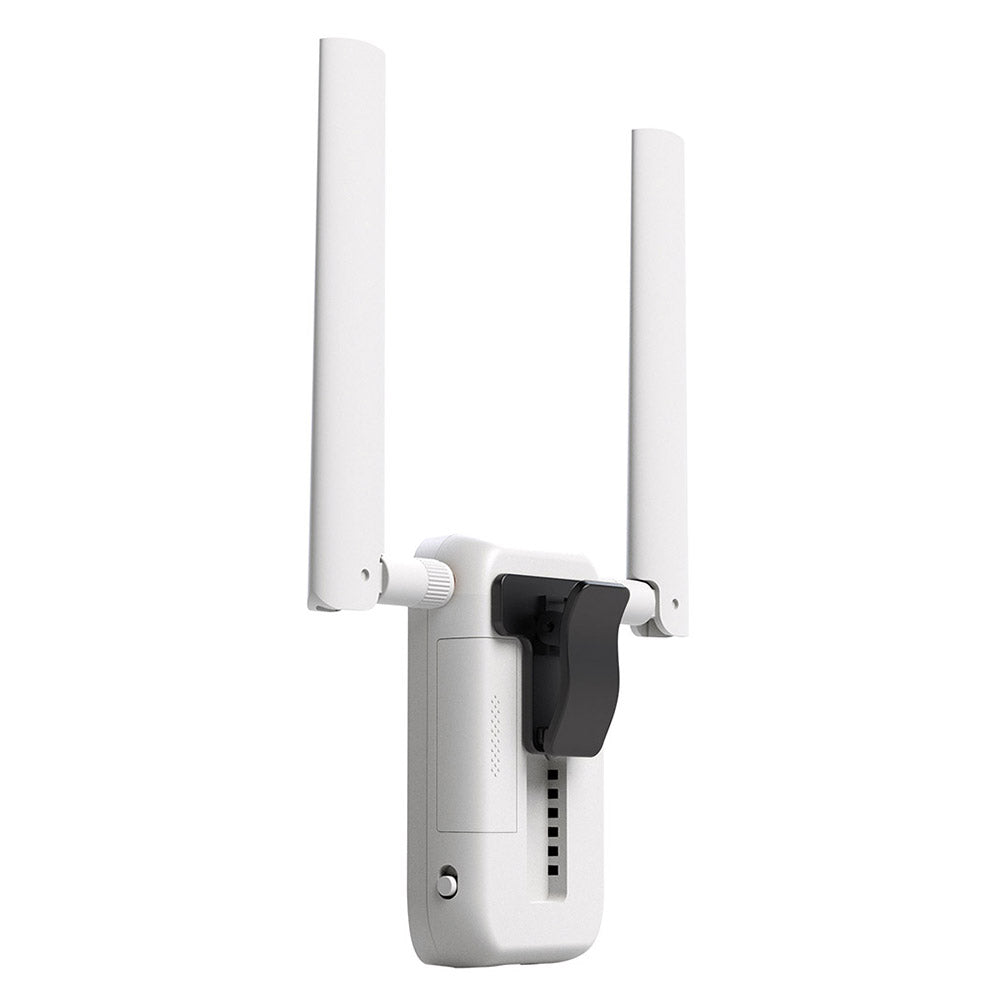

(6) Screen clip included
(7) 4× LED

Description

AUCM5G is a travel ready 5G NR modem with USB Type-C interface

With drastically increased speed, thanks to 5G Next Radio technology, compact size and multi-band support, this modem is a perfect choice for travelers and users looking for fastest mobile data communication.

Universal and convenient USB Type-C interface, two external antennas and drivers availability for all popular operating systems allow to use this product in various of applications.

Specifications

General specifications

Parameter	Value
Embedded module	SIMCom™ SIM8202G-M2 or Quectel RM500Q-GL (multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+)
Interface	USB Type-C USB 3.1 with USB 2.0 backward compatibility
Antenna	2× external (female SMA connectors) 2× internal
SIM	1× micro SIM 1× mini SIM
Button	1× push-button (modem reset)
Switch	1× slide switch (SIM select)
LED	1× modem status (blue) 1× micro SIM (blue) 1× mini SIM (blue) 1× power (blue)
Operating systems	Microsoft Windows 7, 8 and 10 Linux Android
Operating humidity	10 % ~ 90 % RH, non-condensing
Operating temperature	-30 ° ~ 70 ° C
Dimensions	TBA

Modem specifications

Parameter	Value
Chipset	Qualcomm™ SDX55
Form factor	M.2/NGFF 3042
Data rate (download)	Sub-6G: 2.4 Gbps 4G/LTE: 1 Gbps HSPA+: 42 Mbps
Data rate (upload)	Sub-6G: 500 Mbps 4G/LTE: 200 Mbps HSPA+: 5.7 Mbps
5G Sub-6G bands	n1 (FDD, 2100 MHz) n12 (FDD, 700 MHz) n48 (TDD, 3500 MHz) n2 (FDD, 1900 MHz) n20 (FDD, 800 MHz) n66 (FDD, 1700/2100 MHz) n3 (FDD, 1800 MHz) n28 (FDD, 700 MHz) n71 (FDD, 600 MHz) n5 (FDD, 850 MHz) n38 (TDD, 2600 MHz) n78 (TDD, 3500 MHz) n7 (FDD, 2600 MHz) n40 (TDD, 2300 MHz) n79 (TDD, 4700 MHz) n8 (FDD, 900 MHz) n41 (TDD, 2500 MHz)
4G/LTE bands	B1 (FDD, 2100 MHz) B18 (FDD, 850 MHz) B39 (TDD, 1900 MHz) B2 (FDD, 1900 MHz) B19 (FDD, 850 MHz) B40 (TDD, 2300 MHz) B3 (FDD, 1800 MHz) B20 (FDD, 800 MHz) B41 (TDD, 2500 MHz) B4 (FDD, 1700 MHz) B25 (FDD, 1900 MHz) B42 (TDD, 3500 MHz) B5 (FDD, 850 MHz) B26 (FDD, 850 MHz) B43 (TDD, 3700 MHz) B7 (FDD, 2600 MHz) B28 (FDD, 700 MHz) B46 (TDD, 5200 MHz) B8 (FDD, 900 MHz) B29 (SDL, 700 MHz) B48 (TDD, 3500 MHz) B12 (FDD, 700 MHz) B30 (FDD, 2300 MHz) B66 (FDD, 1700 MHz) B13 (FDD, 700 MHz) B32 (SDL, 1500 MHz) B71 (FDD 600 MHz) B14 (FDD, 700 MHz) B34 (TDD, 2000 MHz) B17 (FDD, 700 MHz) B38 (TDD, 2600 MHz)
3G/UMTS bands	B1 (2100 MHz) B2 (1900 MHz) B3 (1800 MHz) B4 (1700 MHz) B5 (850 MHz) B8 (900 MHz)
Certification	1× slide switch (SIM select)
