AX1800RM

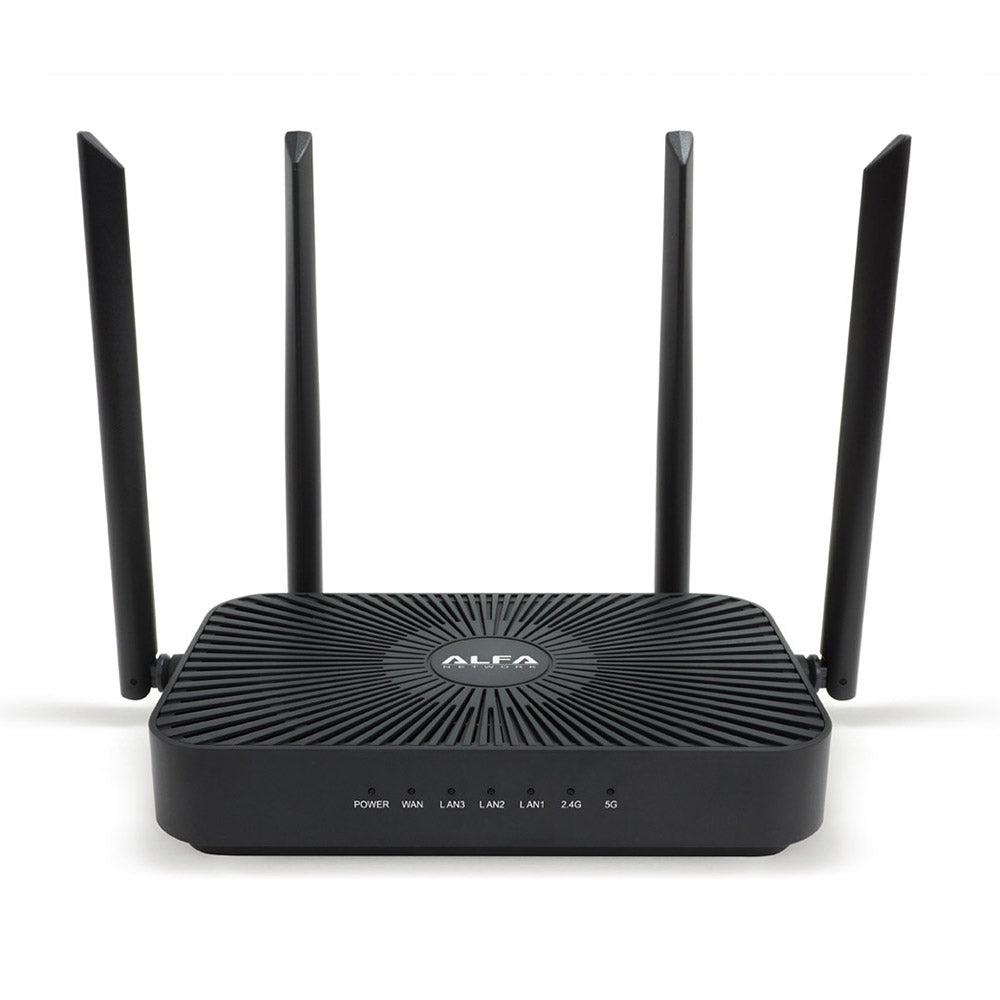

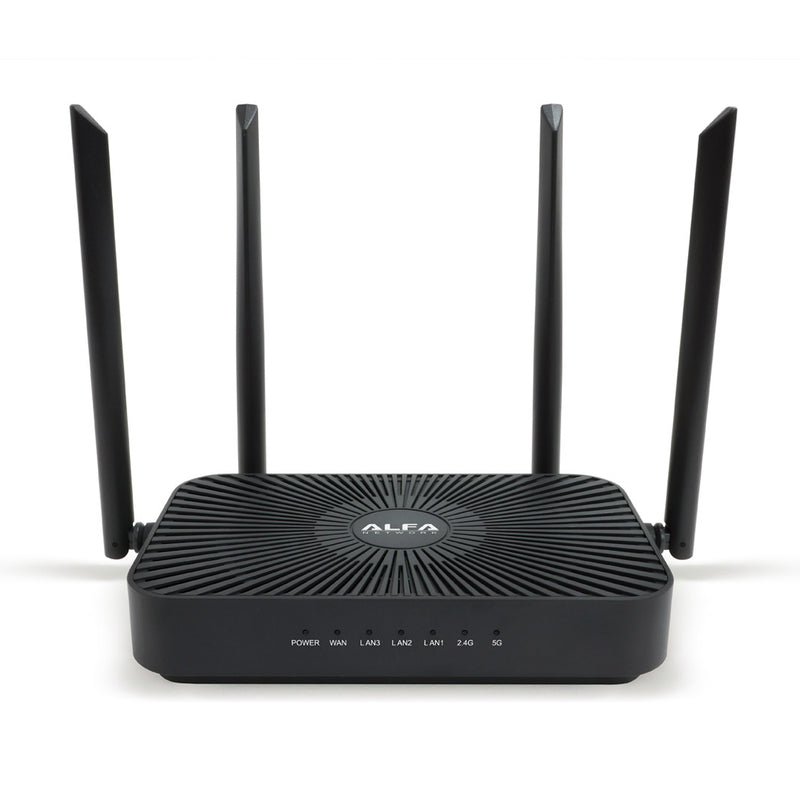

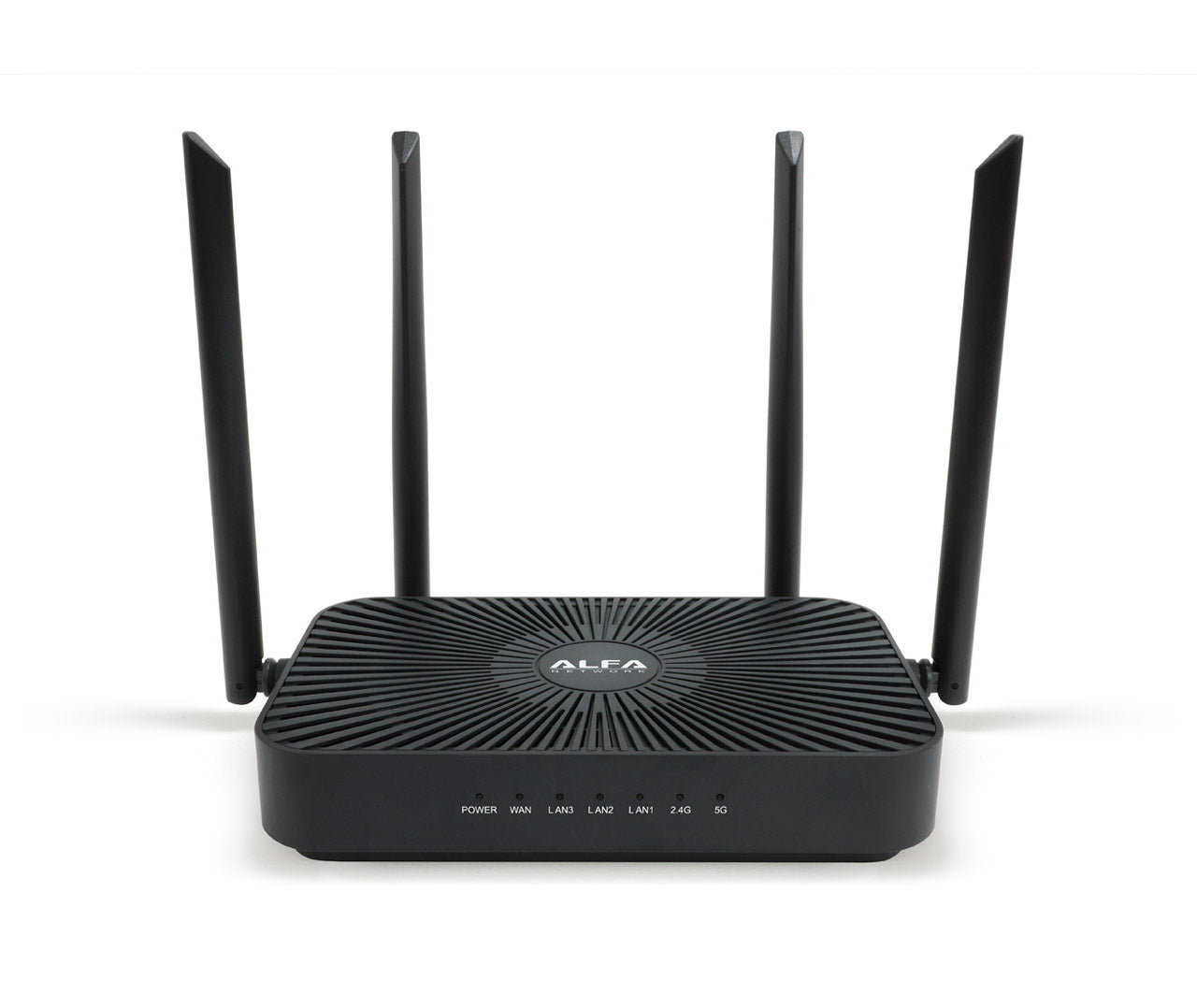

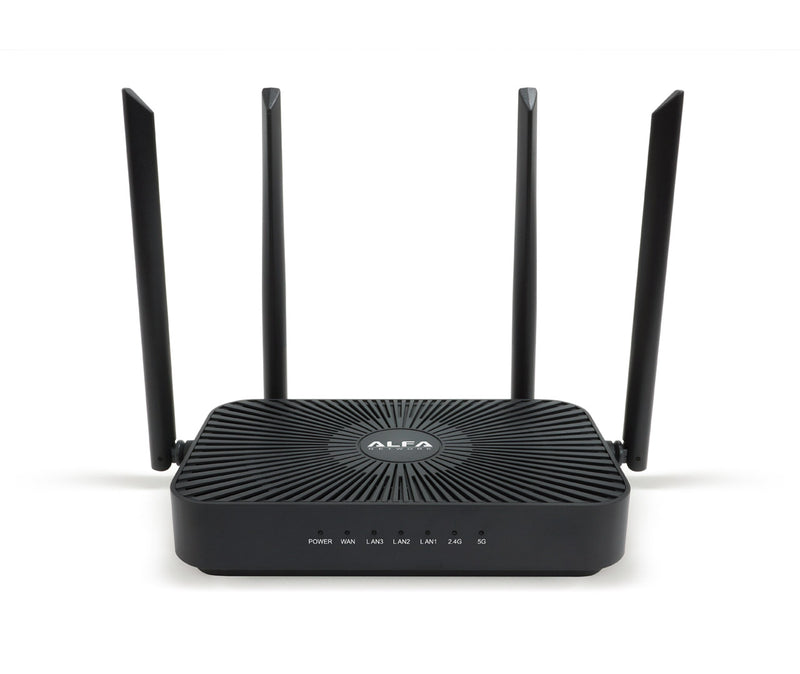

AX1800RM Dual Band WiFi 6 (802.11ax) Mesh Router supporting MU-MIMO and OFDMA technology for better coverage and throughput.

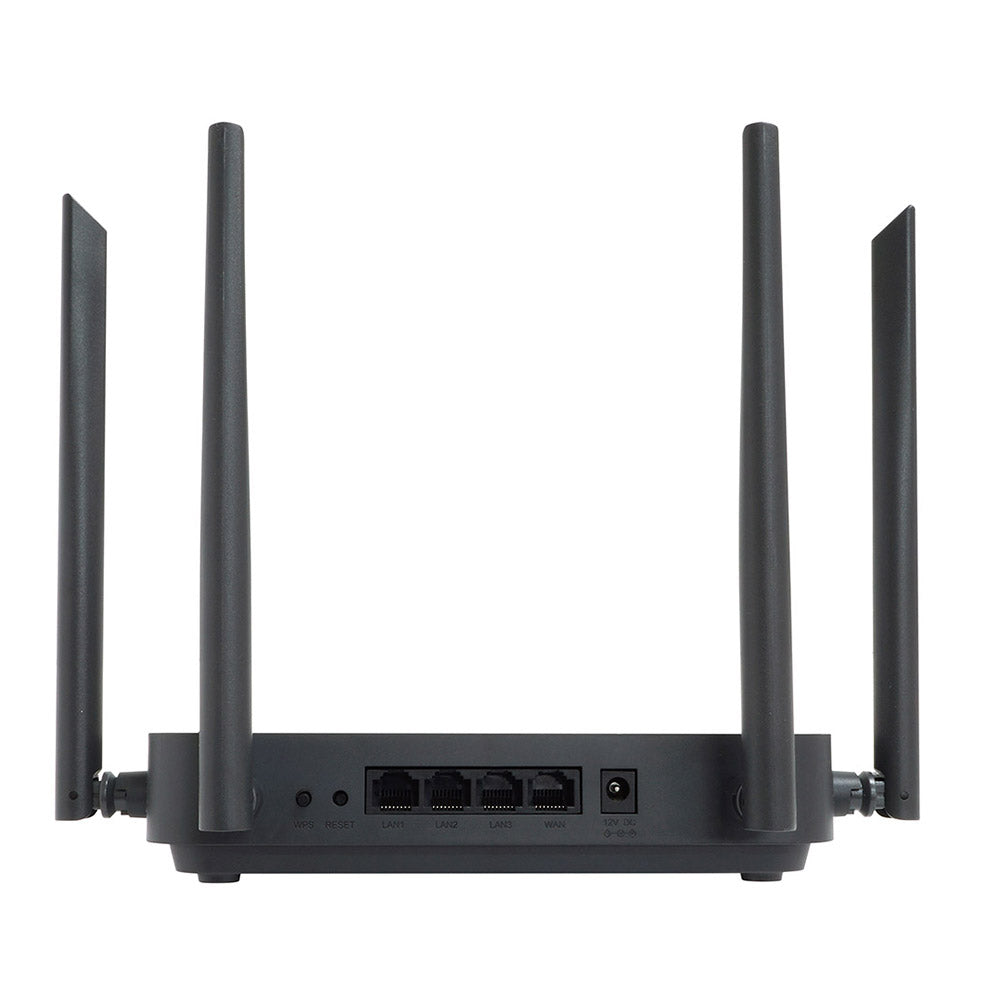

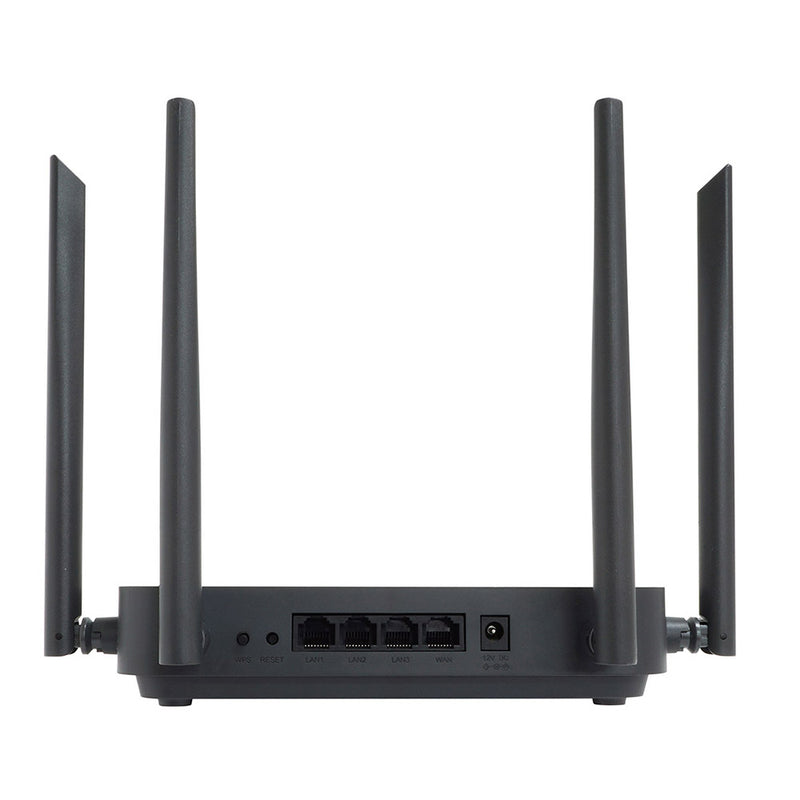

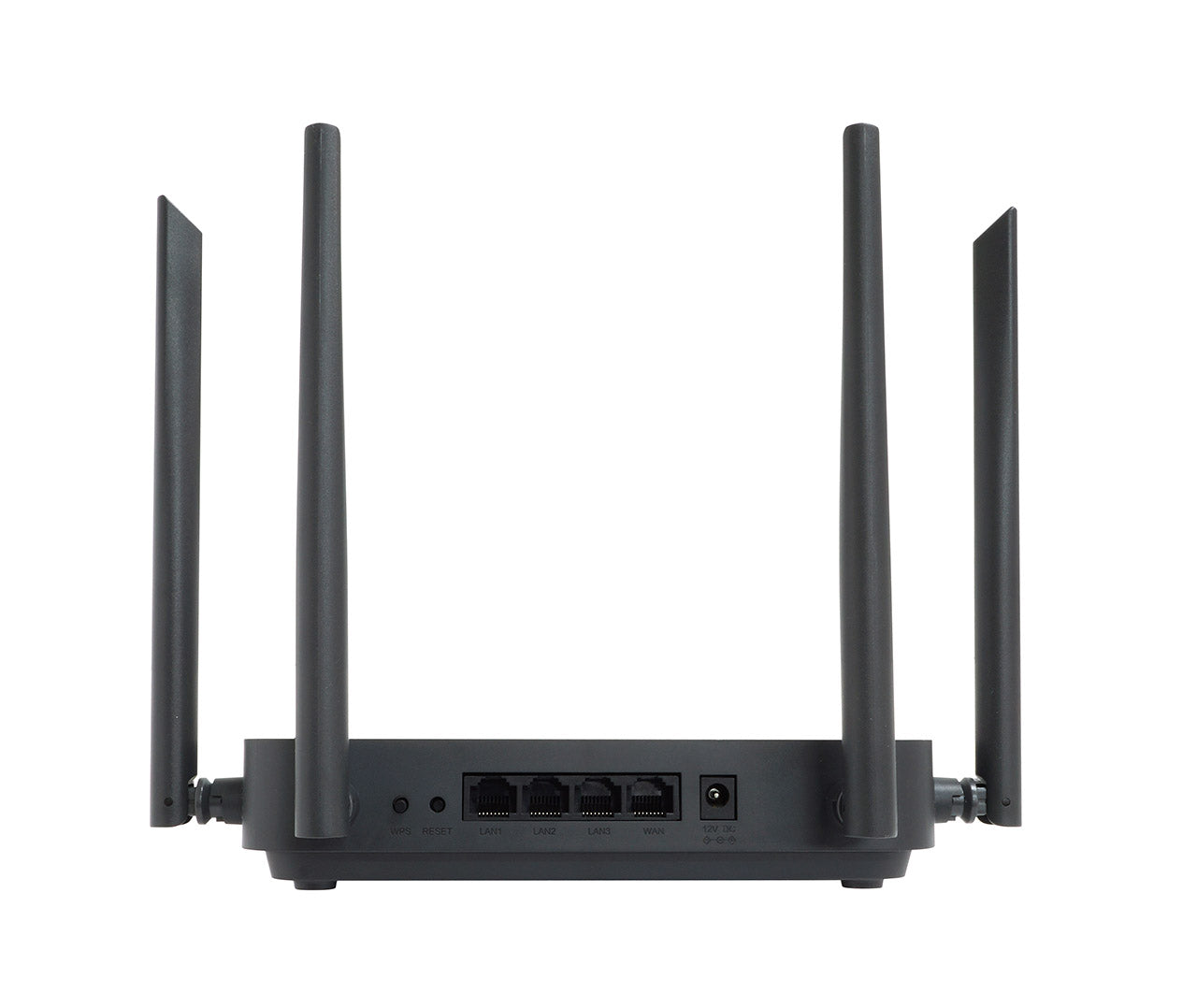

1. Dual Band 5 dBi fixed antenna

2. LED indicators

3. DC Jack (12V DC)

4. Gigabit WAN x 1

5. Gigabit LAN x 3

6. Reset button

7. Mesh button

Key features

• Dual Band with maximum speed up to 1800 Mbps
• 4x fixed external 5 dBi antenna
• Support one-key mesh
• Support guest network
• Support MU-MIMO and OFDMA
• Support Beamforming
• Support BSS coloring

Specifications

Chipset	MediatekMT7621A + MT7905 + MT7975
RAM / Flash	16 MB / 256 MB
WiFi Standard	IEEE 802.11a/b/g/n/ac/ax
Frequency	2.4 GHz 2x2 5 GHz 2x2
Data Rate	802.11g: up to 54 Mbps 802.11n (WiFi 4): up to 300 Mbps 802.11ac (WiFi 5): up to 867 Mbps 802.11ax 2.4 GHz (WiFi 6): up to 574 Mbps 802.11ax 5 GHz (WiFi 6): up to 1201 Mbps
Ports	1x Gigabit WAN 3x Gigabit LAN
Antenna	4x fixed external antenna
LED	1x Power 1x WAN 3x LAN 1x 2.4 GHz WiFi 1x 5 GHz WiFi
Button	WPS (Mesh) button, Reset button
Power Supply	12 V DC / 1 A
Temperature	-25° C - 75° C
Dimensions	185 x 116 x 40 mm
Weight	247 g
