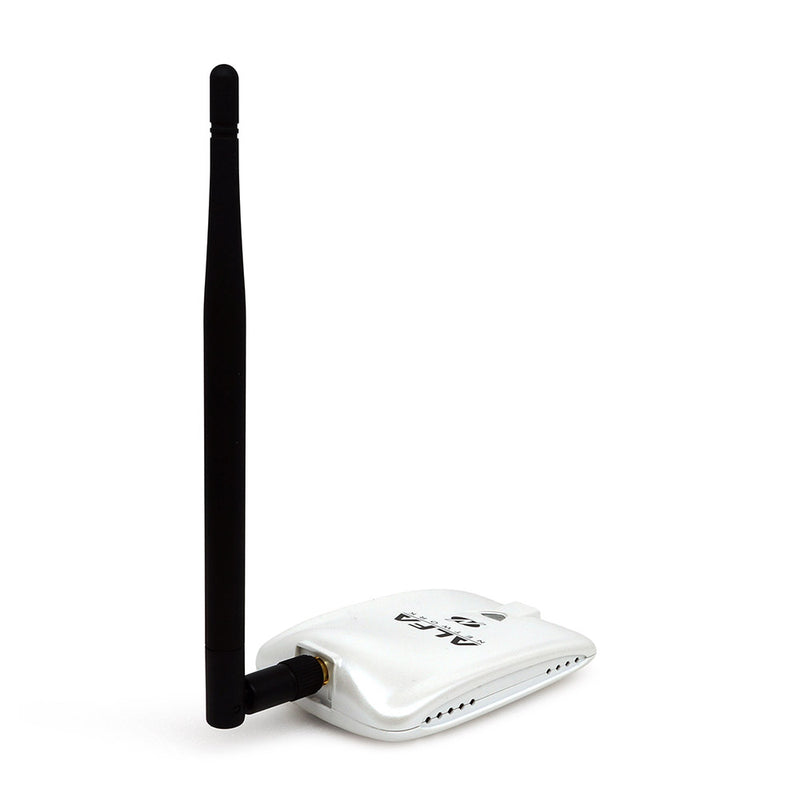

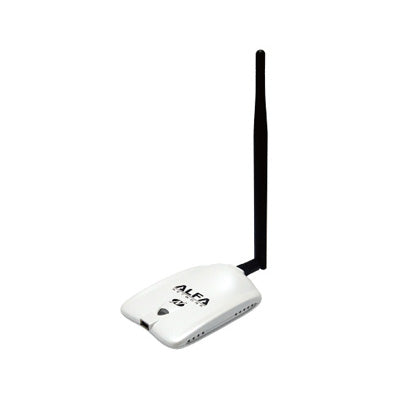

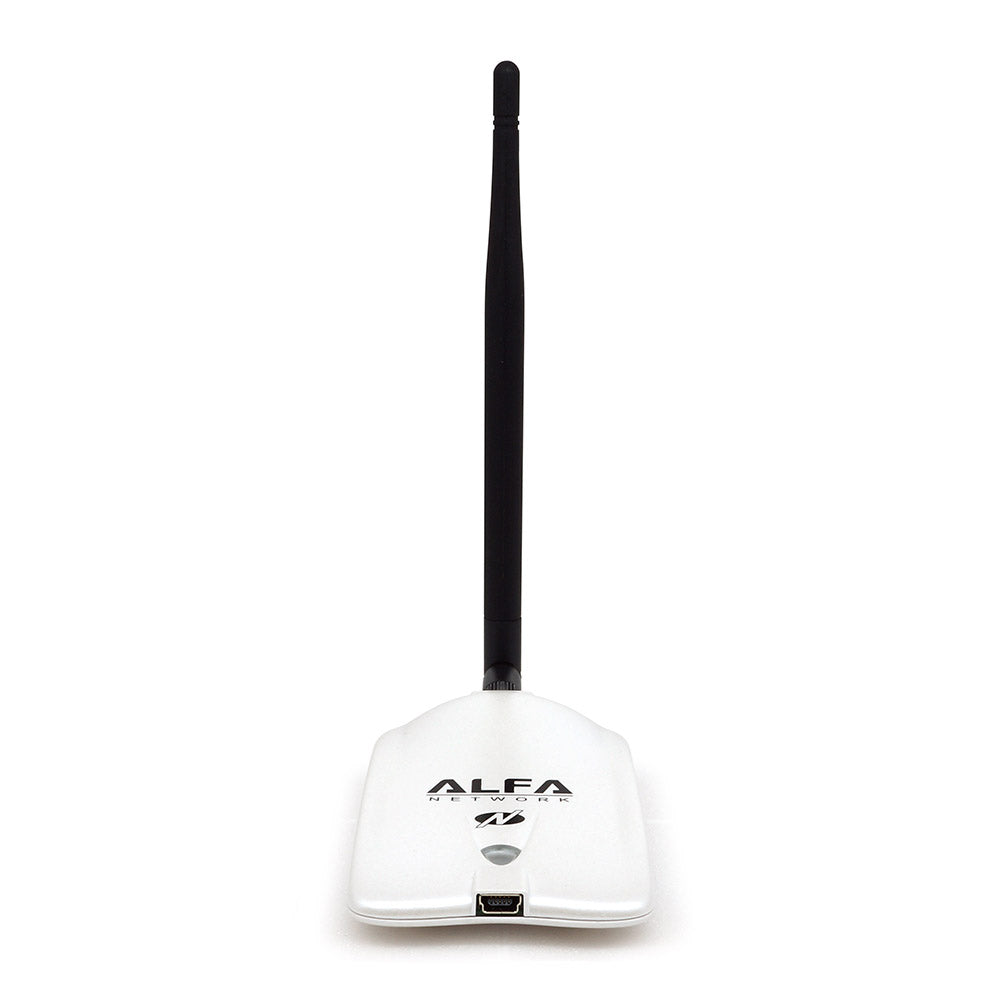

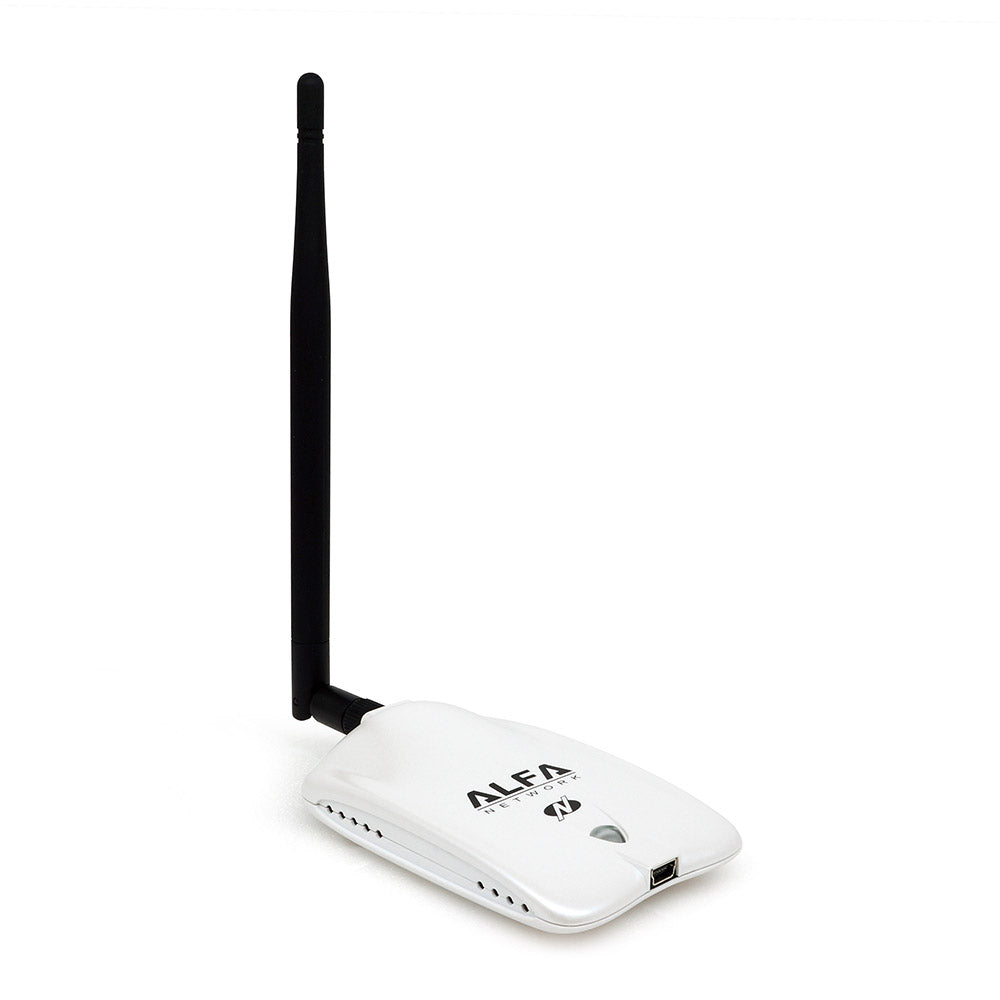

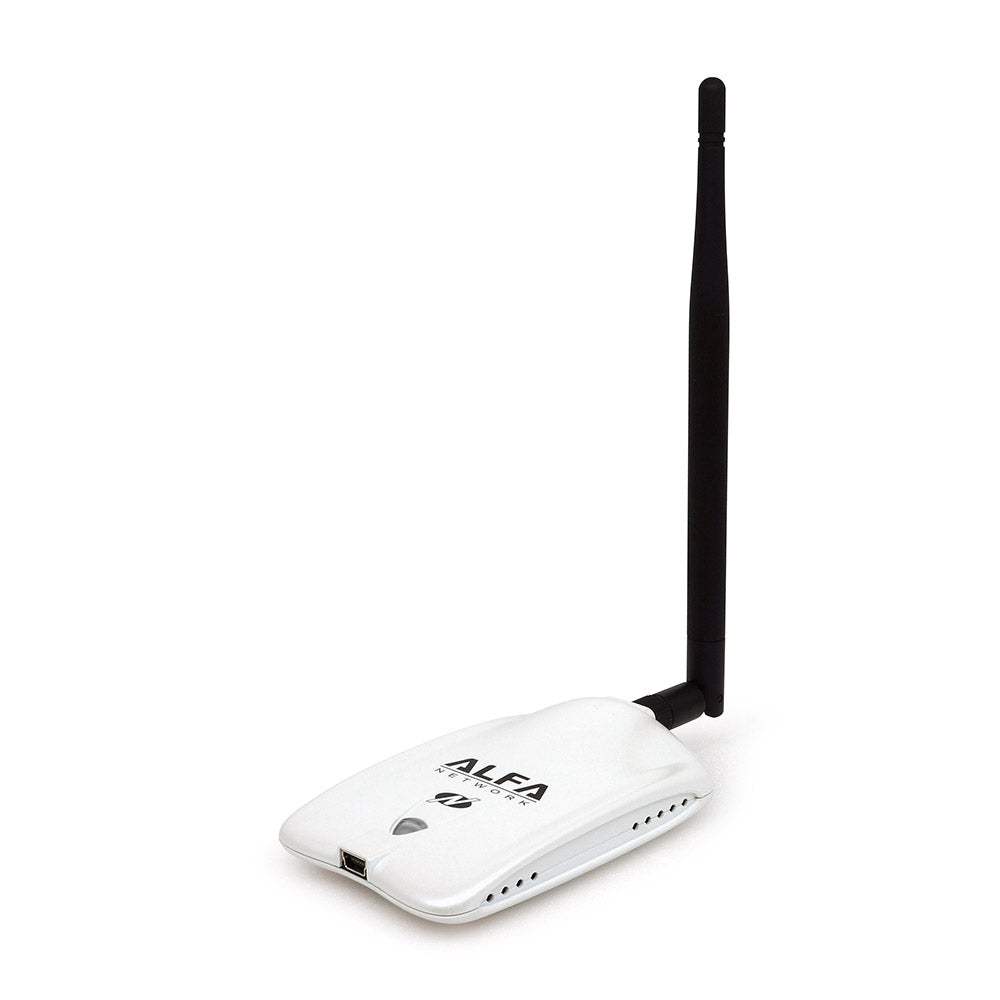

802.11 b/g/n 2W Long-Range USB Adpater


  • Compatible with IEEE 802.11n,802.11b/g/n wireless standards
  • 2.4GHz frequency band, MIMO (Multiple Input Multiple Output)
  • Complies with Universal Serial Bus Rev. 2.0 specifications
  • High speed transfer TX data rate up to 150 Mbps
  • Supports wireless data encryption with 64/128-bit WEP, WPA, WPA2, TKIP, AES
  • Wide Range coverage
  • Support software AP
  • Compliant with FCC Part 15.247 for US, ETS 300 328 for Europe
  • Supports driver for Windows 2000, XP 32/64, Vista 32/64, Windows 7
  • Mac (10.4.x/10.5.x/10.6.x) Power PC& PC.

AWUS036NHR is the IEEE 802.11b/g/n Wireless USB adapter provides users to launch IEEE 802.11b/g/n wireless network at 150 Mbps in the 2.4GHz band, which is also compatible with IEEE 802.11b/g wireless devices at 54 Mbps. You can configure AWUS036NHR with ad-hoc mode to connect to other 2.4GHz wireless computers, or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet.

AWUS036NHR includes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.

Standards Wireless IEEE 802.11b/g/n
Data Rate 802.11b: 11 Mbps
802.11g: 54 Mpbs
802.11n: 150 Mpbs
OS Supported Windows XP, Windows Vista, Windows 7
Mac 10.4, 10.5, and 10.6
Support S/W AP
Interface USB 2.0 mini USB
Antenna Type 1 x 2.4GHz RP-SMA connector
Chipset Realtek RTL8188RU
Antenna 5 dBi 2.4GHz Antenna
Frequency Range 2.412GHz ~ 2.483GHz
Channels 1 ~ 11 channels (North America)
1 ~ 13 channels (EU)
1 ~ 14 channels (Japan)
Output Power 802.11b: 33 dBm±2
802.11g: 32 dBm±2
802.11n(HT20): 32 dBm±2
802.11n(HT40): 33 dBm±2
Sensitivity 11b: -96dBm
11g: -92dBm
11n: -91dBm
Data Modulation Type BPSK, QPSK, CCK and OFDM
Power Voltage: 5V ± 5%
Security WEP 64/128
802.11X support
Wi-Fi Protected Access(WPA)
WPA-PSK
WPA2-PSK
Cisco CCX support
WAPI-PSK
WAPI-PSK
WAPI-CERT
Operating Temp 0℃ ~ 50℃
Storage -10℃ ~ 65℃
Humidity 5% ~ 98% non-condensing
