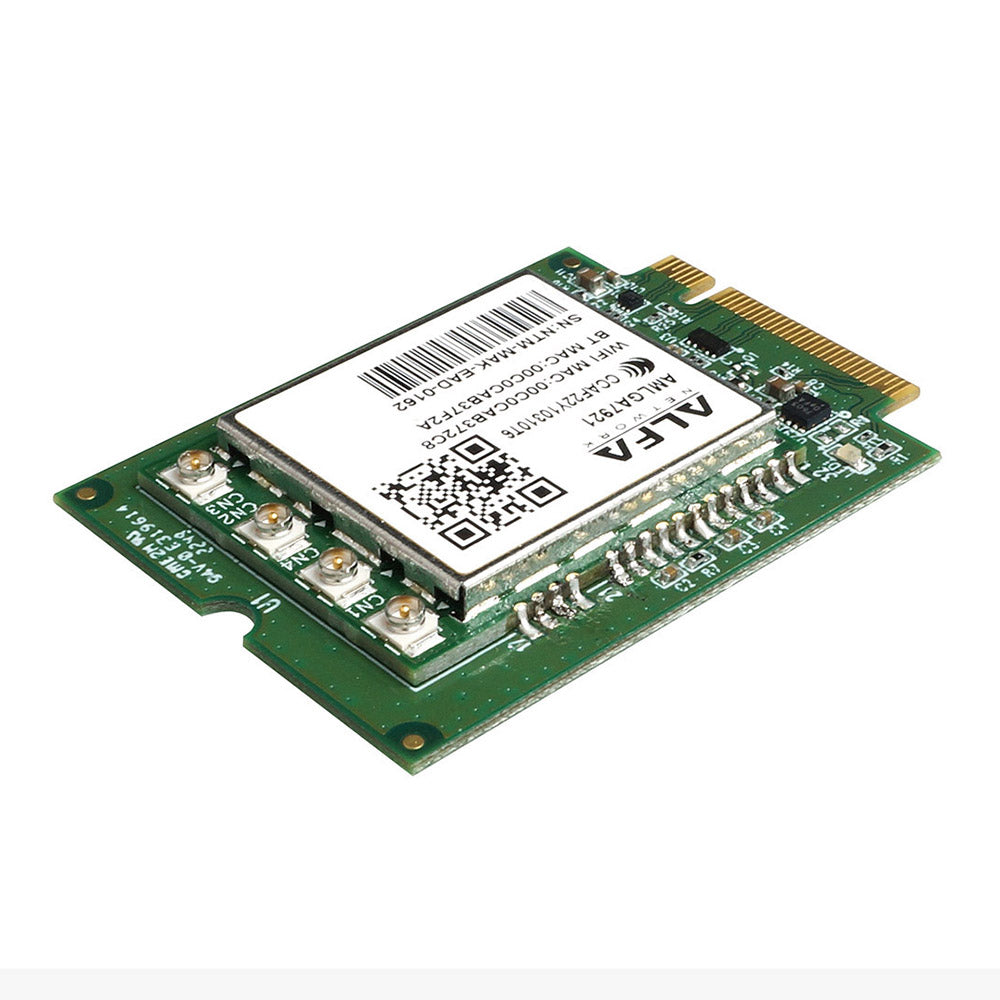

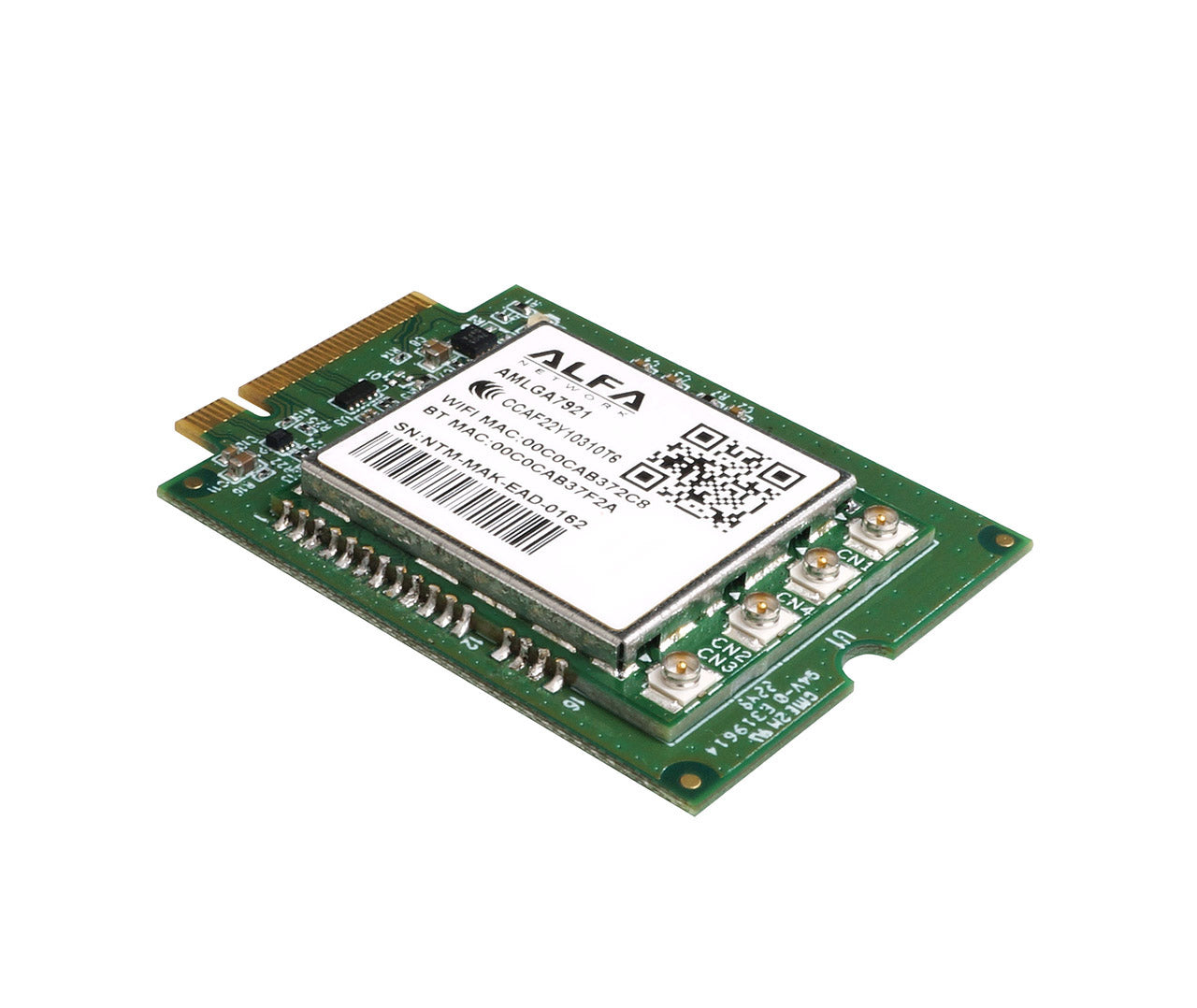

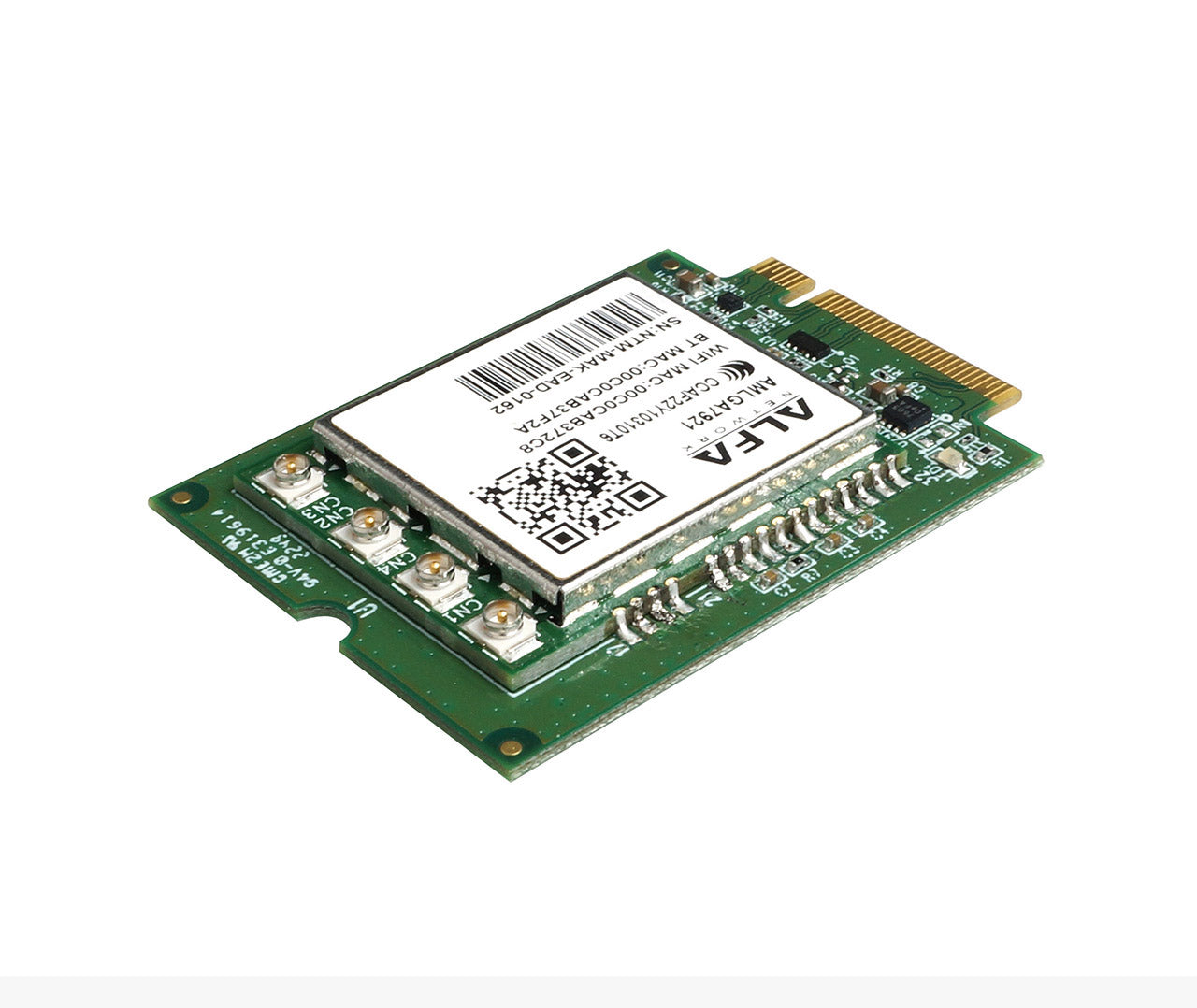

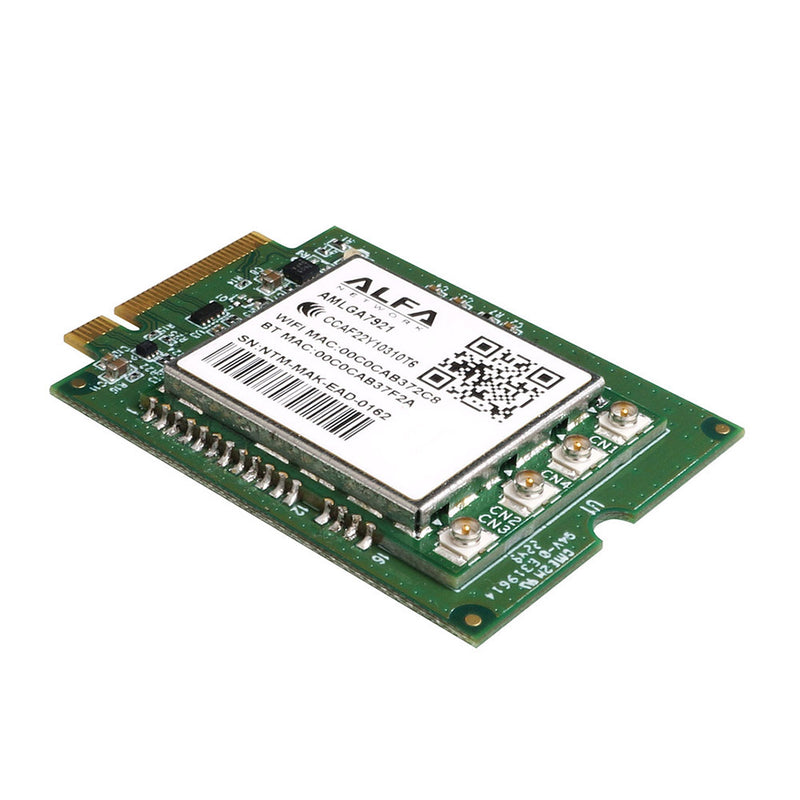

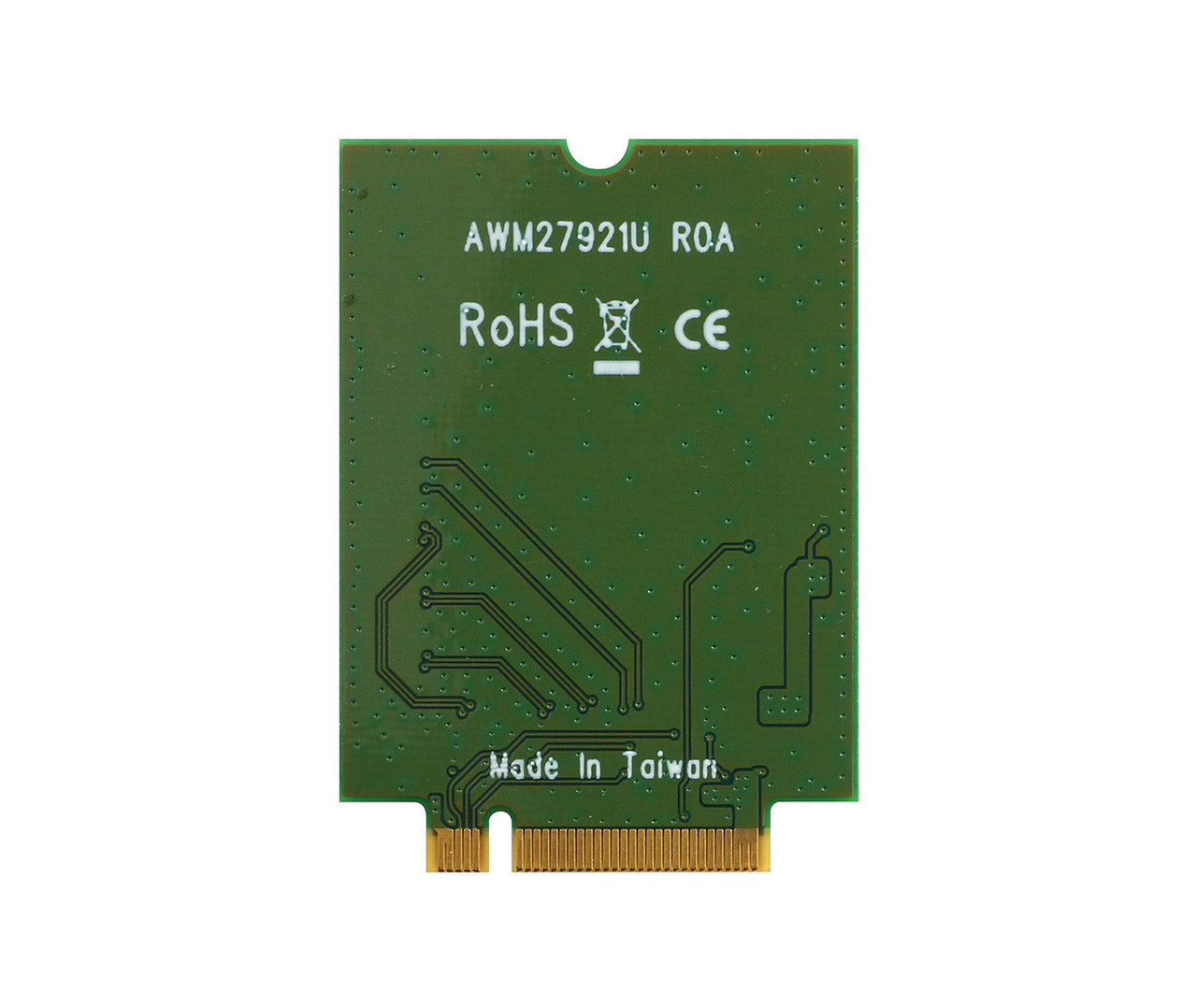

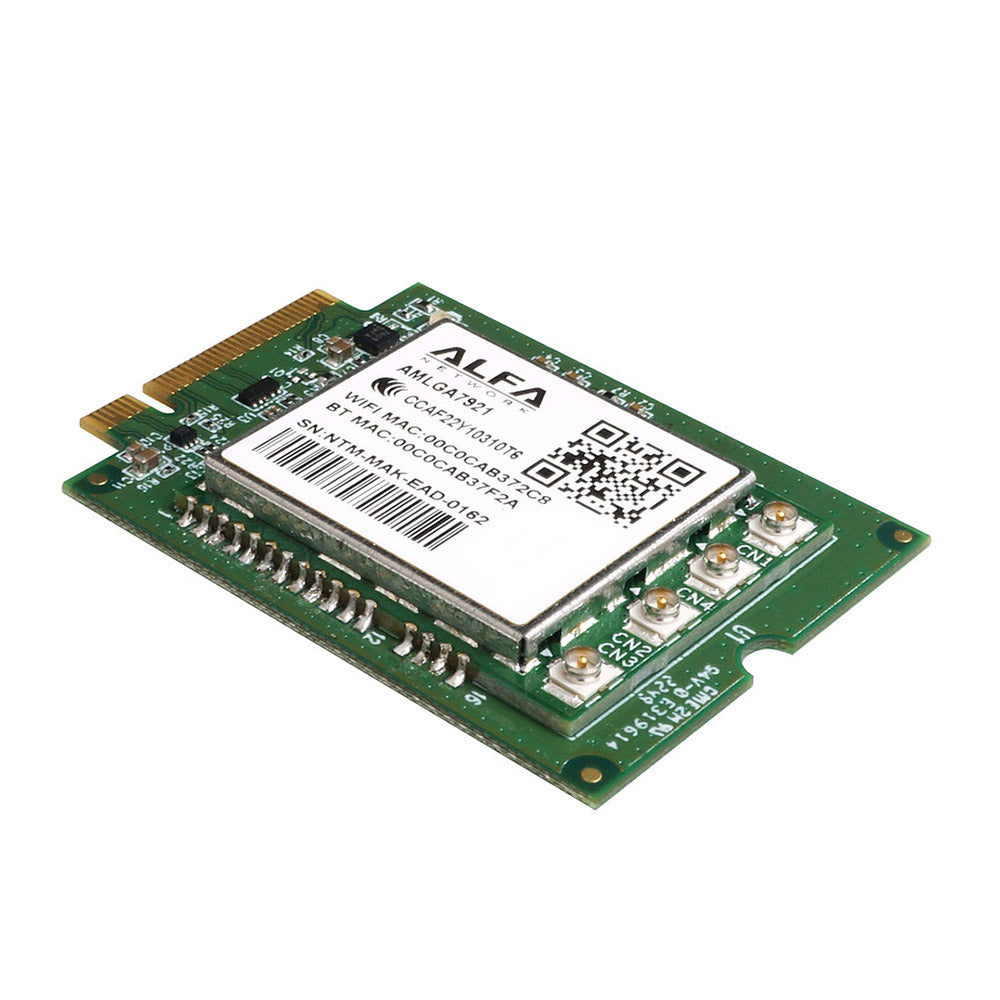

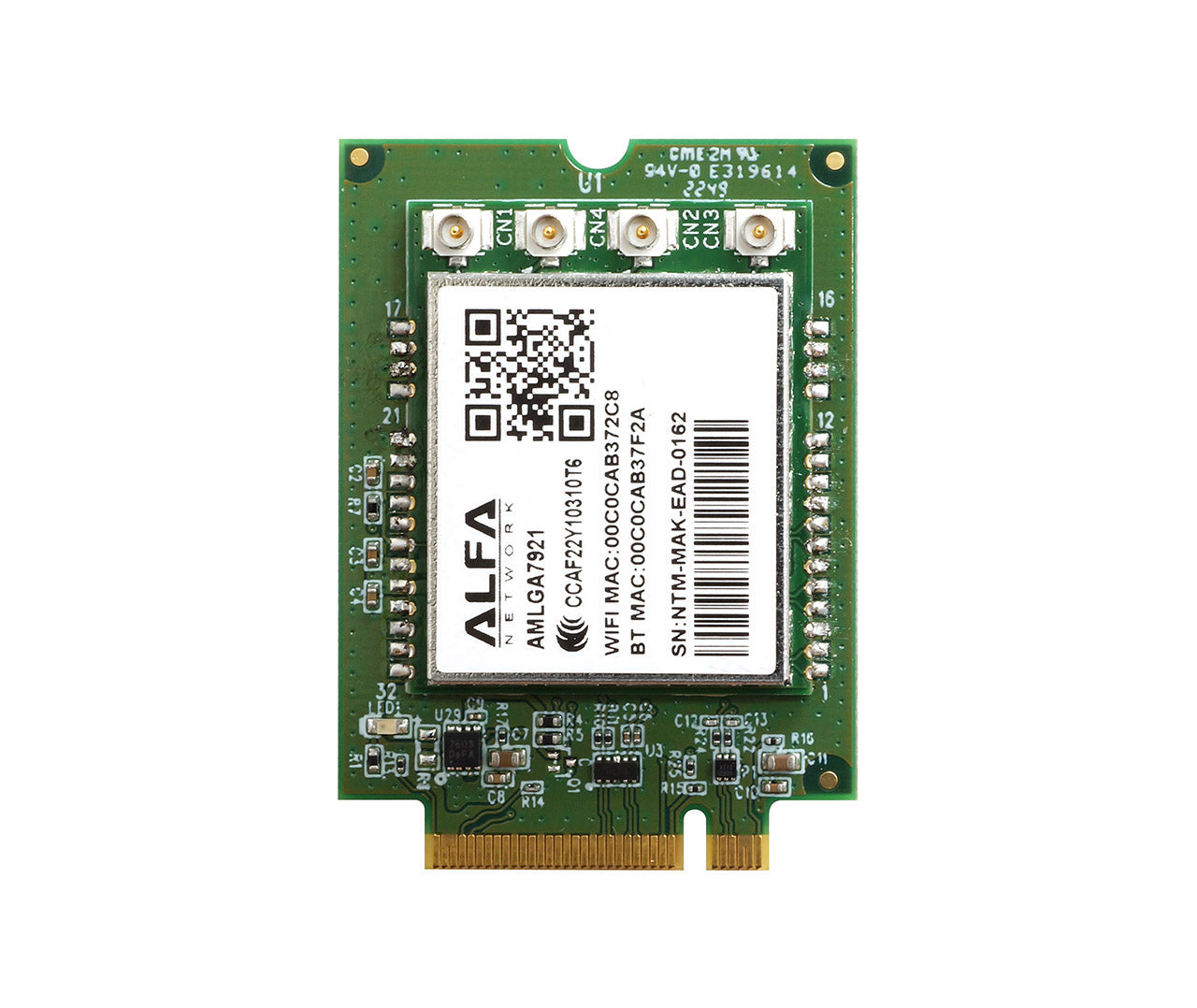

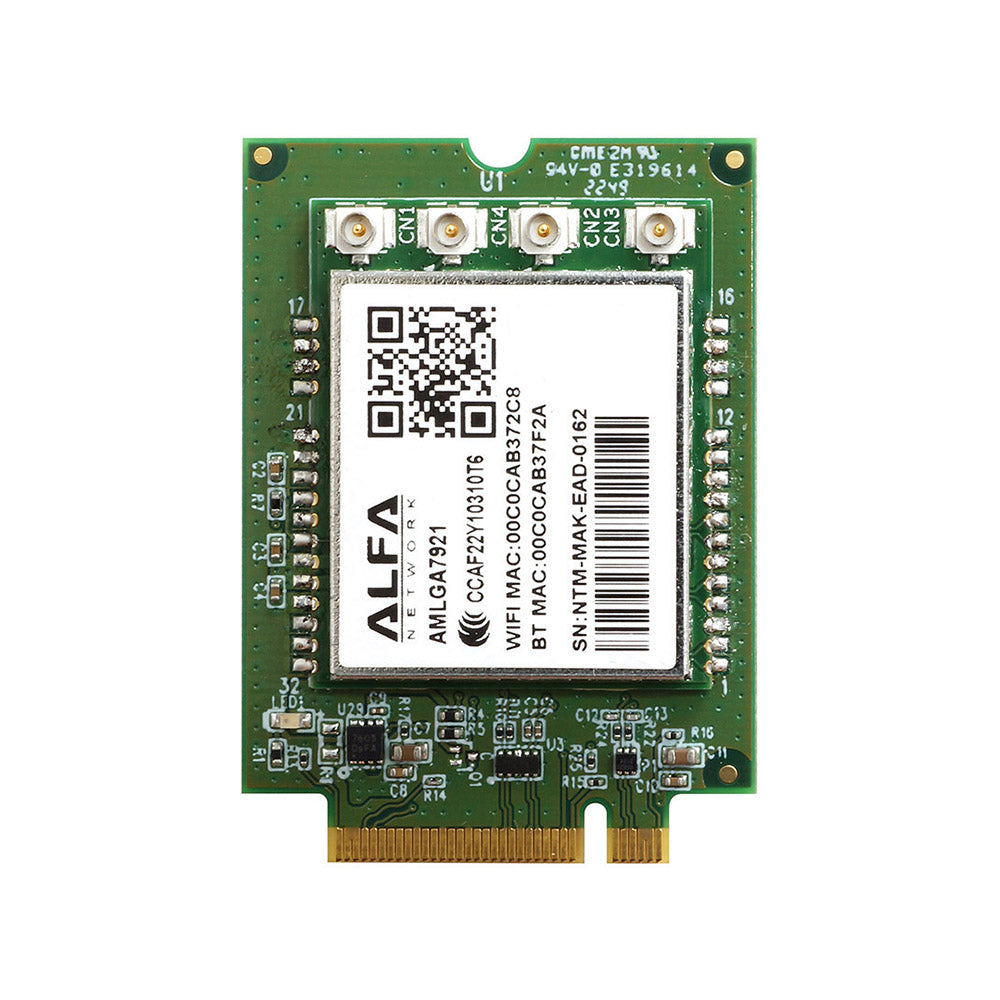

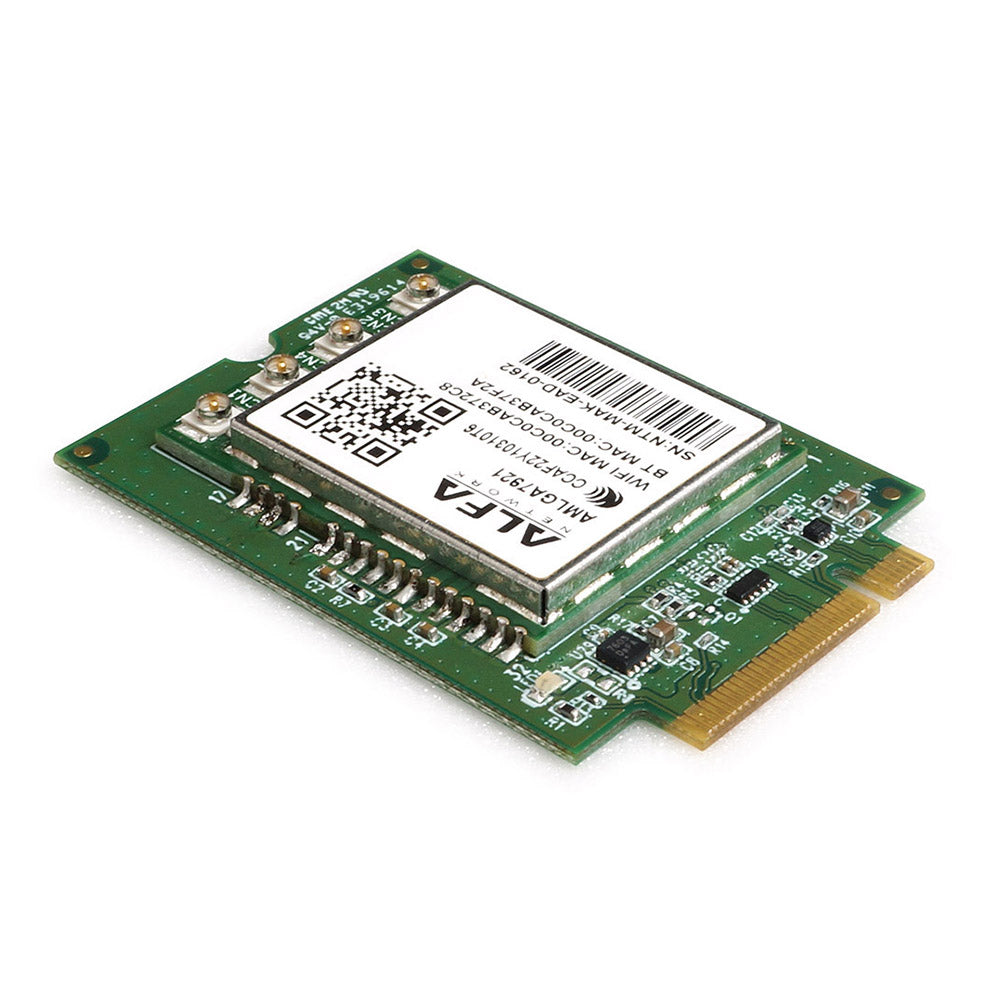

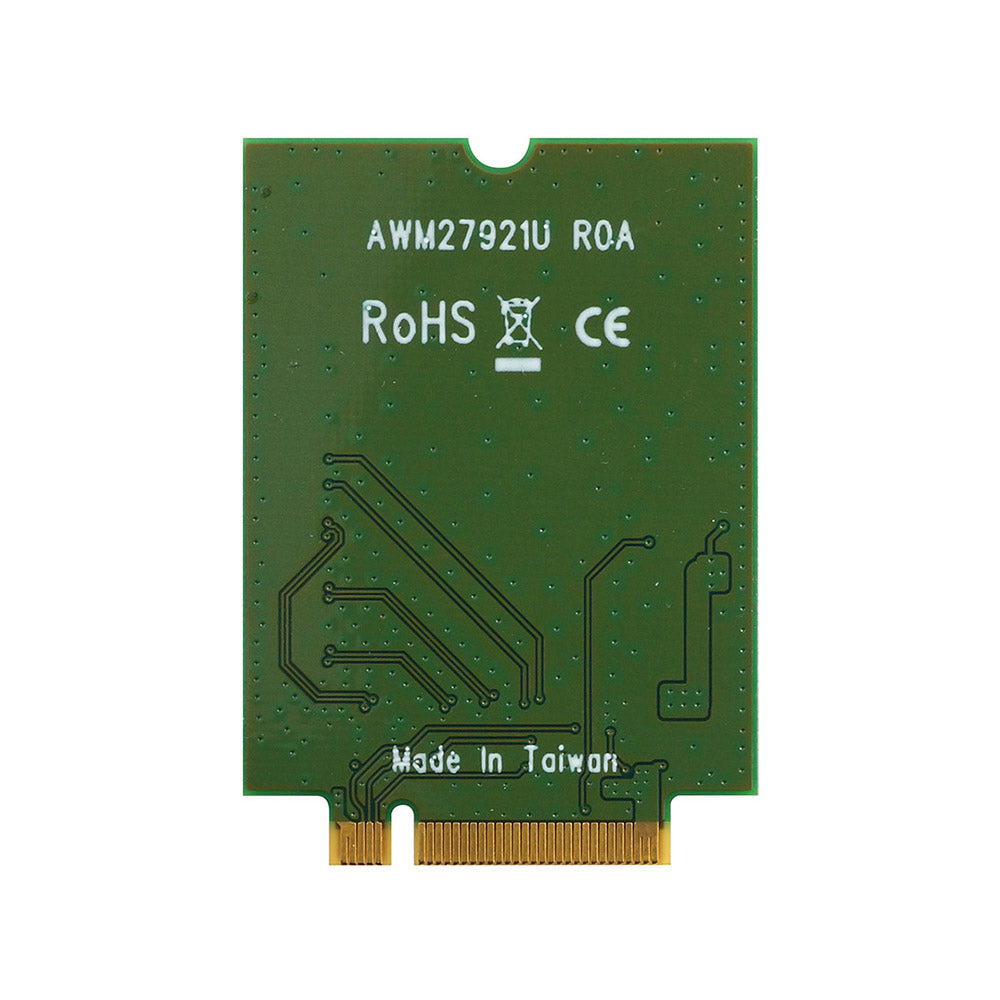

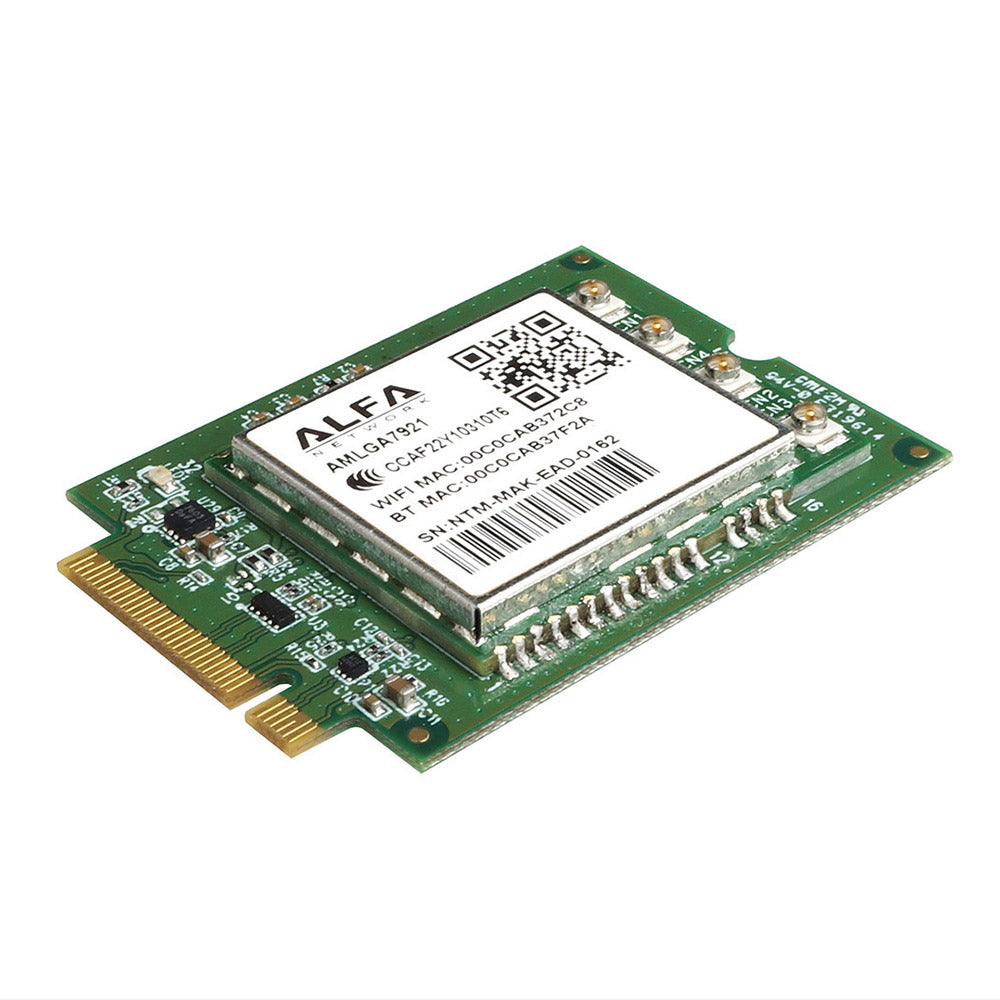

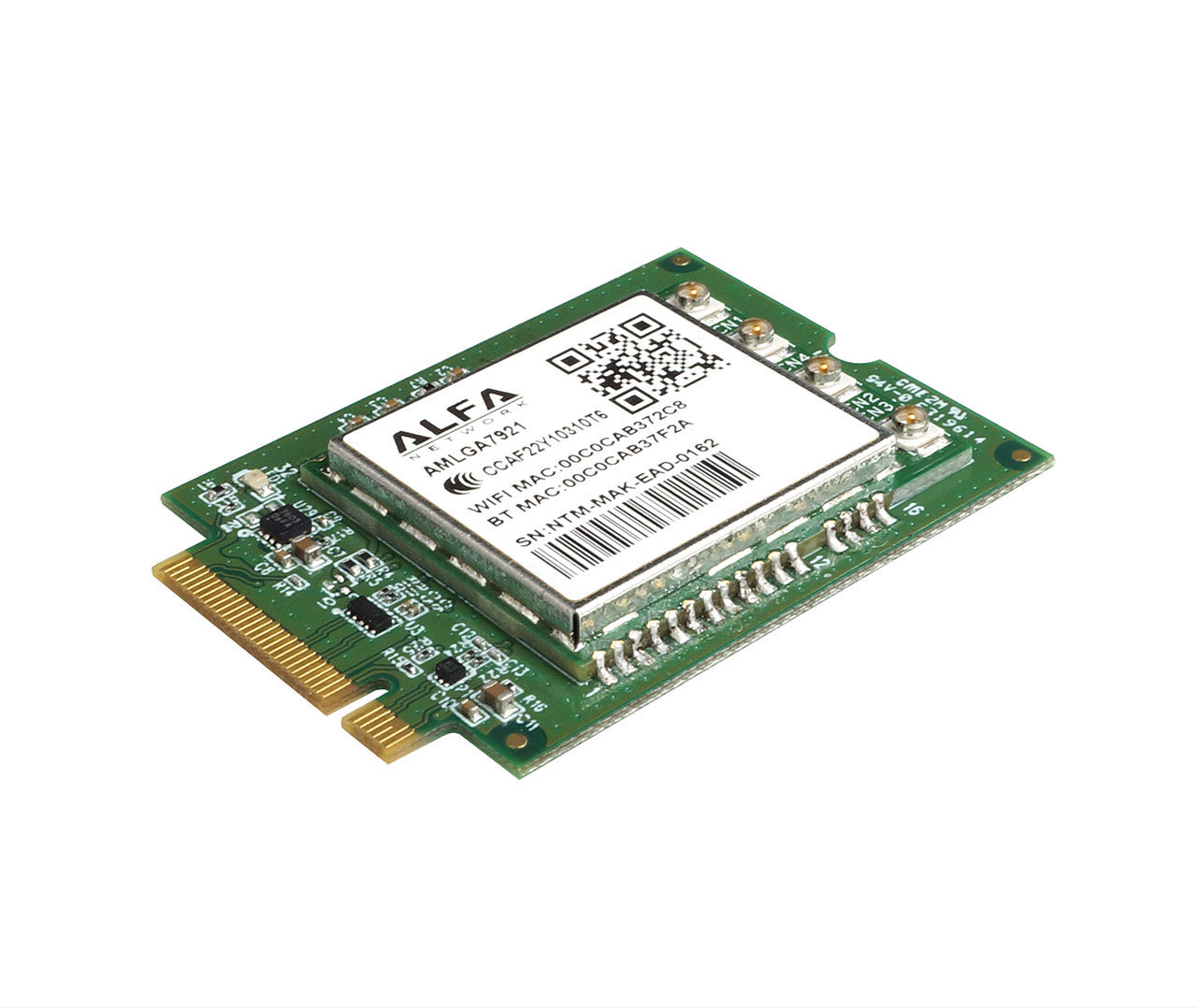

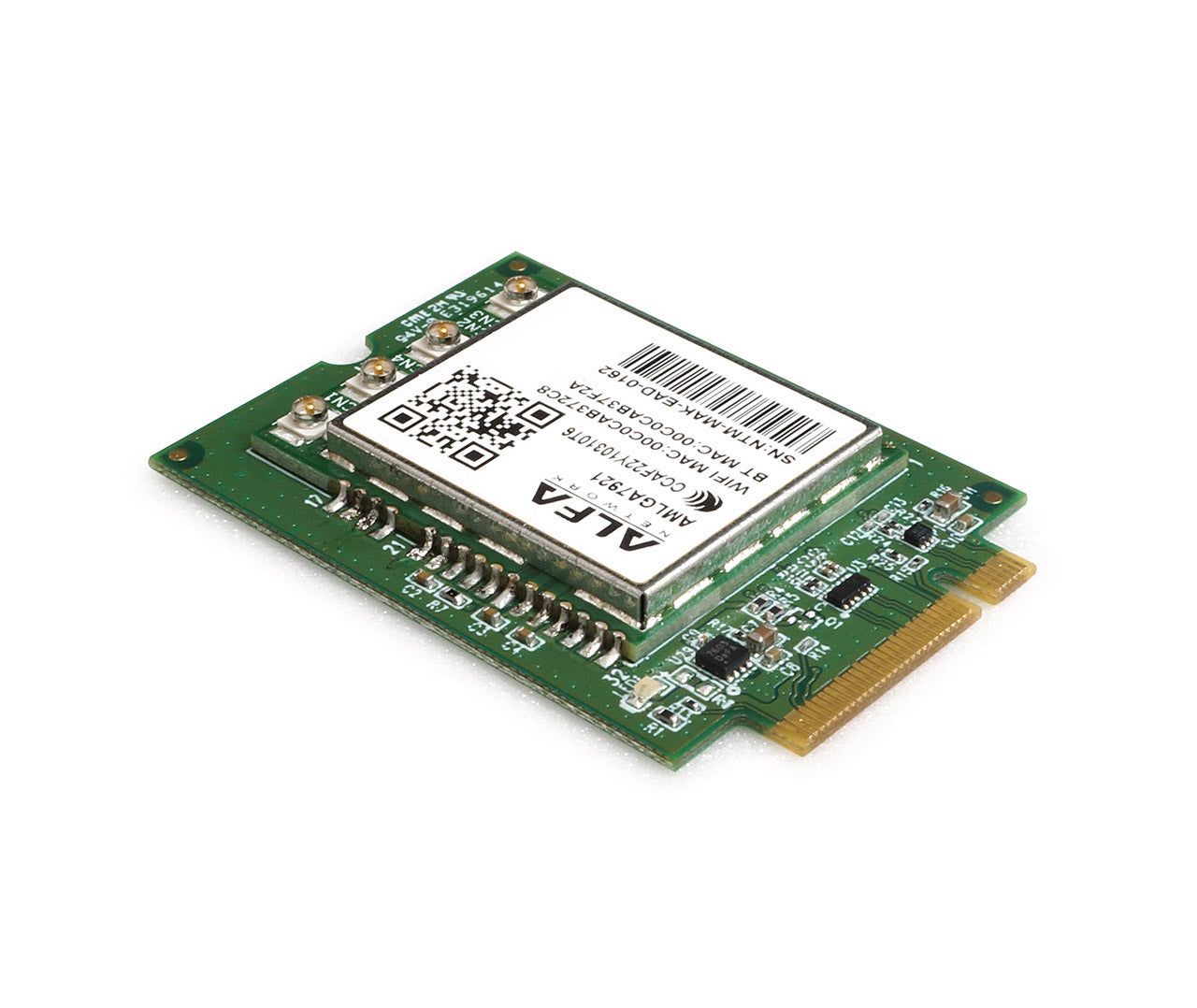

AWM27921U

The AWM27921U is a high-performance 2x2 dual-band WLAN and Bluetooth v5.2 M.2 module.
The WLAN subsystem contains the 802.11a/b/g/n/ac/ax radio, a baseband designed to meet feature-rich wireless connectivity at high standards, and deliver reliable, cost-effective throughput from an extended distance.
Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators which fully offloads WiFi task of the host processor.

Key features
• IEEE 802.11 a/b/g/n/ac/ax compliant
• Support 20 MHz, 40 MHz, 80 MHz bandwidth in 2.4 GHz, 5 GHz, 6GHz band
• Support Bluetooth 5.2
• Dual-band 2T2R mode
• Data rate up to 800 Mbps with USB3.0
• Support STBC, LDPC, TX Beamforming, and RX Beamforming
• Bluetooth v5.2 with BLE (BT low energy)
• Support BT/BLE dual mode
• Support BT/WiFi coexistence

RF Specifications

M.2 B Key PIN Define
