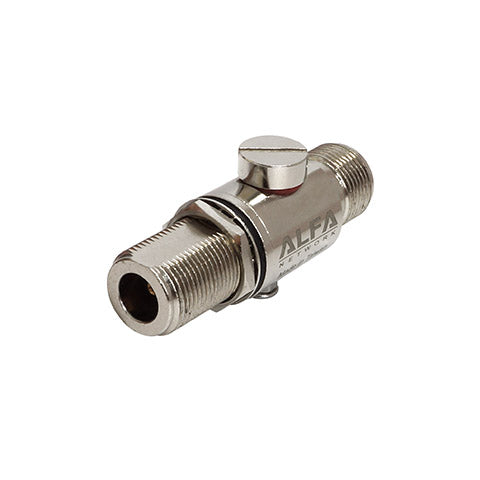

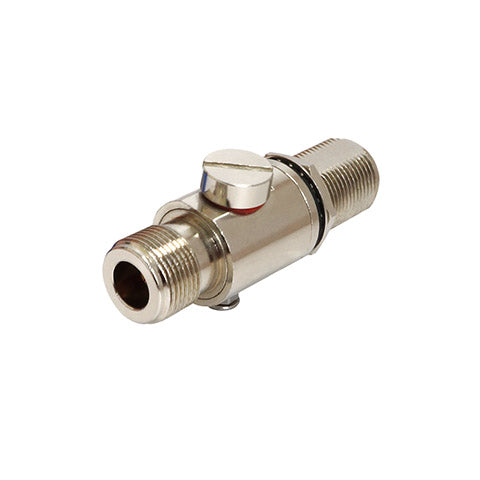

ALFA ALR series are professional 0-6GHz Lightning/Surge Protector with high quality nickel plated brass body and it normal protects ships with 90VDC breakdown voltage.
Installation Diagram
VSWR
Dimension
| Frequency Range | 0~6 GHz |
| VSWR | <1.5 |
| Insertion Loss | 0.2 dB |
| Impedance | 50 Ω |
| Insulation | 10,000M Ω |
| Max With Standing Current@8/20uS | 10 KA |
| DC Breakdown Voltage@100V/S | 90V DC |
| Power | 50 W |
| Electrode Capacitance | ≦1.5 pF |
| Weight | 130 g |
| Dimension | 67x32x20 mm |
| Connector | N Female – N Female |
| Ground wire | – |
